Reinforced Soil Walls and Slope Reinforcement
2023
VLORA - ALBANIA - Albania
Garden Line
Gener 2
Gener 2 & Maccaferri
TERRAMESH RETAINING WALL OVER PILE FOUNDATIONS VLORA BYPASS

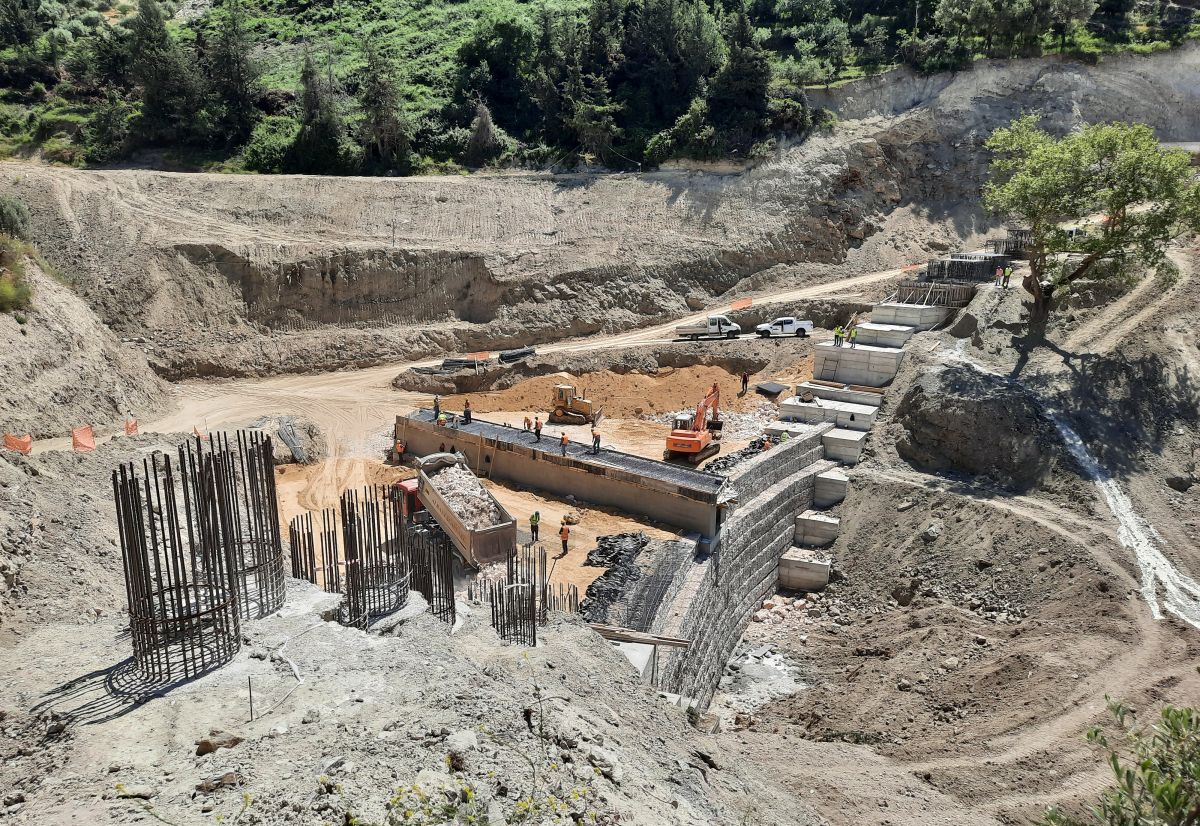

During Construction
After Construction

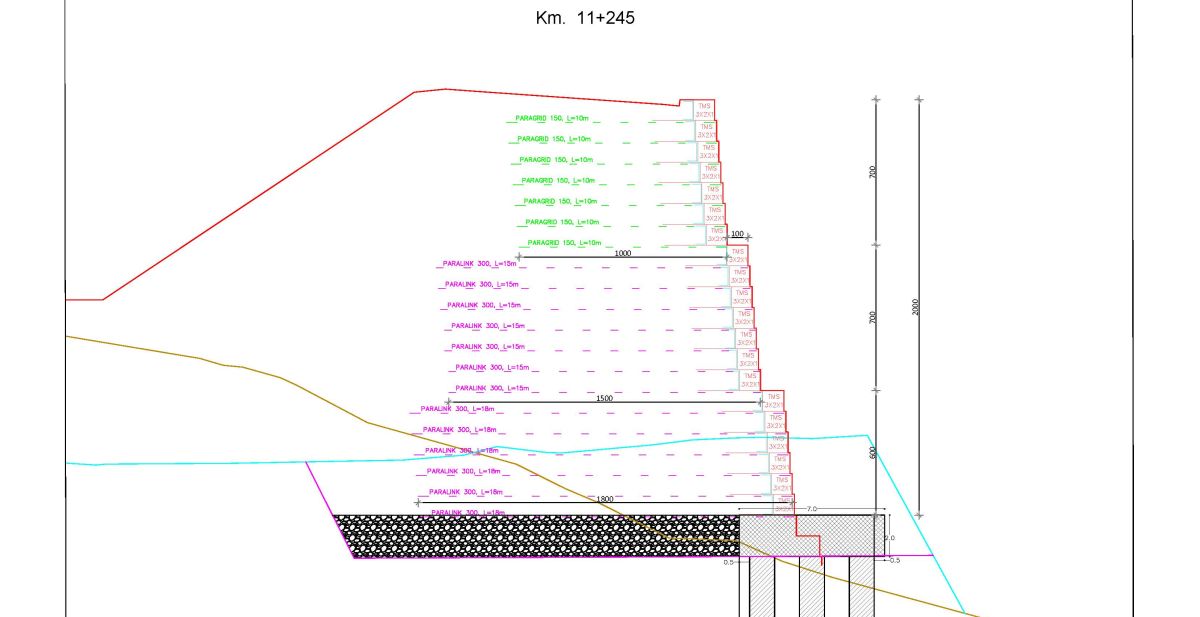

Cross section
Problem
The Vlora bypass is located in the southeast of Albania. The 29-kilometre road segment shortens the travelling time towards the Albanian Riviera.
The overall objective of the project is the improvement of the transport conditions around Vlora, a major touristic city, and in the wider coastal area, directly related to commerce and tourism.
Due to high cost of construction, 2 concreate bridges near the village Kanina were redesigned to RSW walls.
Solution
The contractor decided to build a 30m height Terramesh, which was designed by Maccaferri and calculated using our software MacStARS W.
In order to lower the excavations on the hill and to increase the stability safety factors, pile foundations were designed.
Used Products
Terramesh
Familja Maccaferri TerrameshŸ përfshin opsione të ndryshme per fasaden për të ndërtuar struktura të Tokës së Stabilizuar Mekanikisht (MSE) dShiko
