Debris Flow Barriers
2019
TABLAS, ROMBLON - REGION IV-B - Philippines
Department of Public Works and Highways
Legacy Construction / Mortar Masters
Department of Public Works & Highways
ROMBLON DEO TABLAS CIRCUMFERENTIAL ROAD
ROMBLON DEO TABLAS – 1
ROMBLON DEO TABLAS – 2
Problem

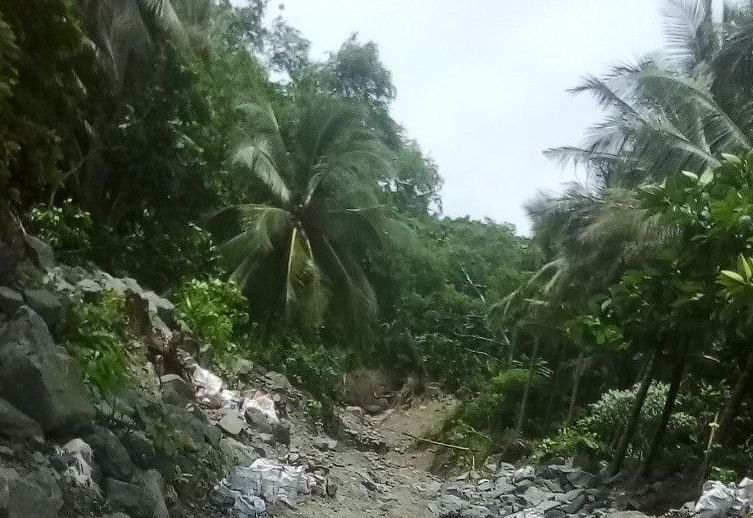

Romblon Deo Tablas Circumferential Road is a coastal road circum-navigating the island of Tablas, Province of Romblon. In the past, the road had suffered from temporary closures after heavy typhoons brought about by debris (logs and woods) that are carried by flood waters from the upland areas. These debris are the product of the clearing and cutting down of trees in the upland areas for cultivation purposes (a traditional but destructive agricultural system).
Solution

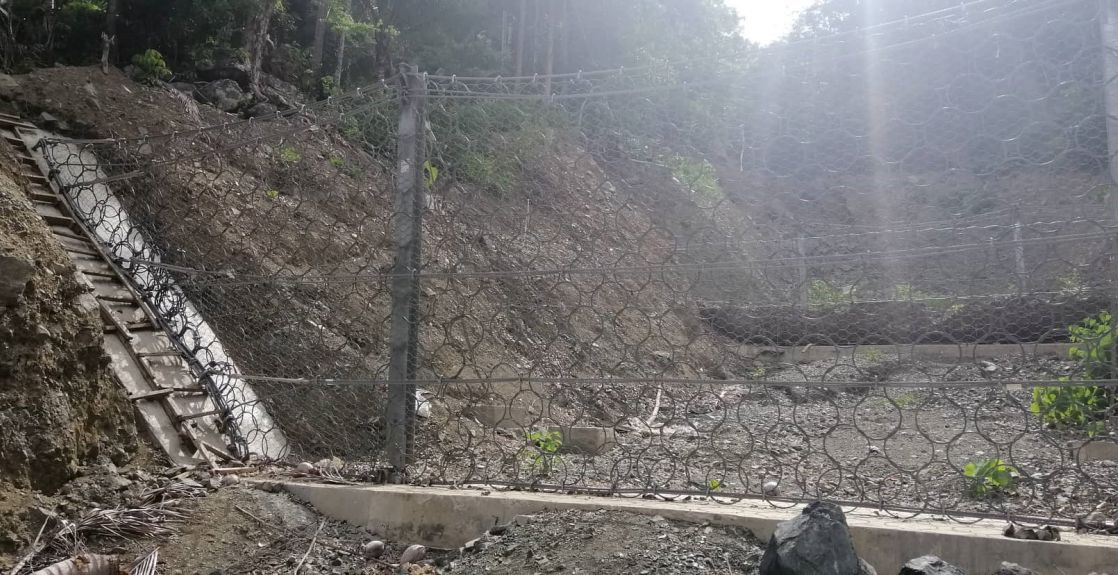

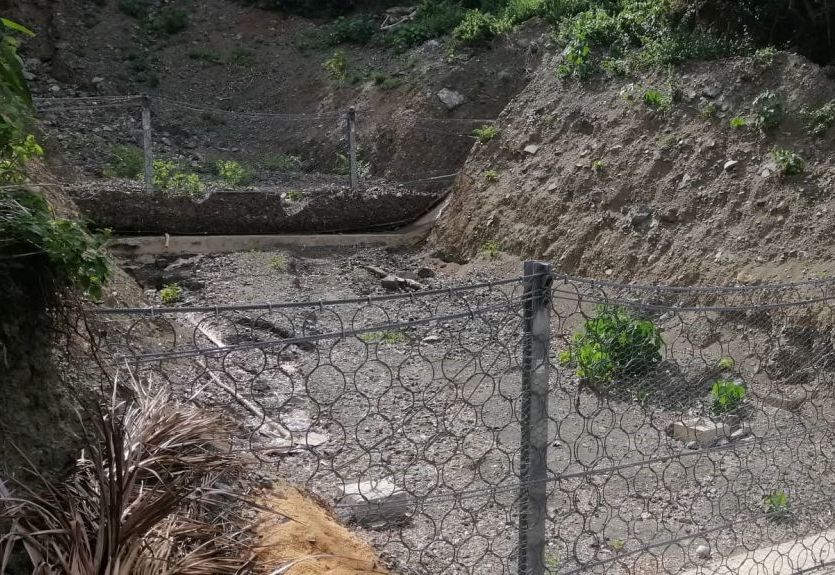

The road is the main thoroughfare of the Tablas Island. In order to protect the road and ensure serviceability after a typhoon, Maccaferri proposed the installation of two sets of debris flow fences located at 90 meters and 130 meters from the circumferential road; respectively. The barriers have a width span of 25 meters and height of 4 meters and has the capacity to withstand a maximum pressure of 160kPA.
Used Products
