Dynamic Barriers
2021
RIZAL - REGION IV-A - Philippines
Republic Cement Teresa Plant

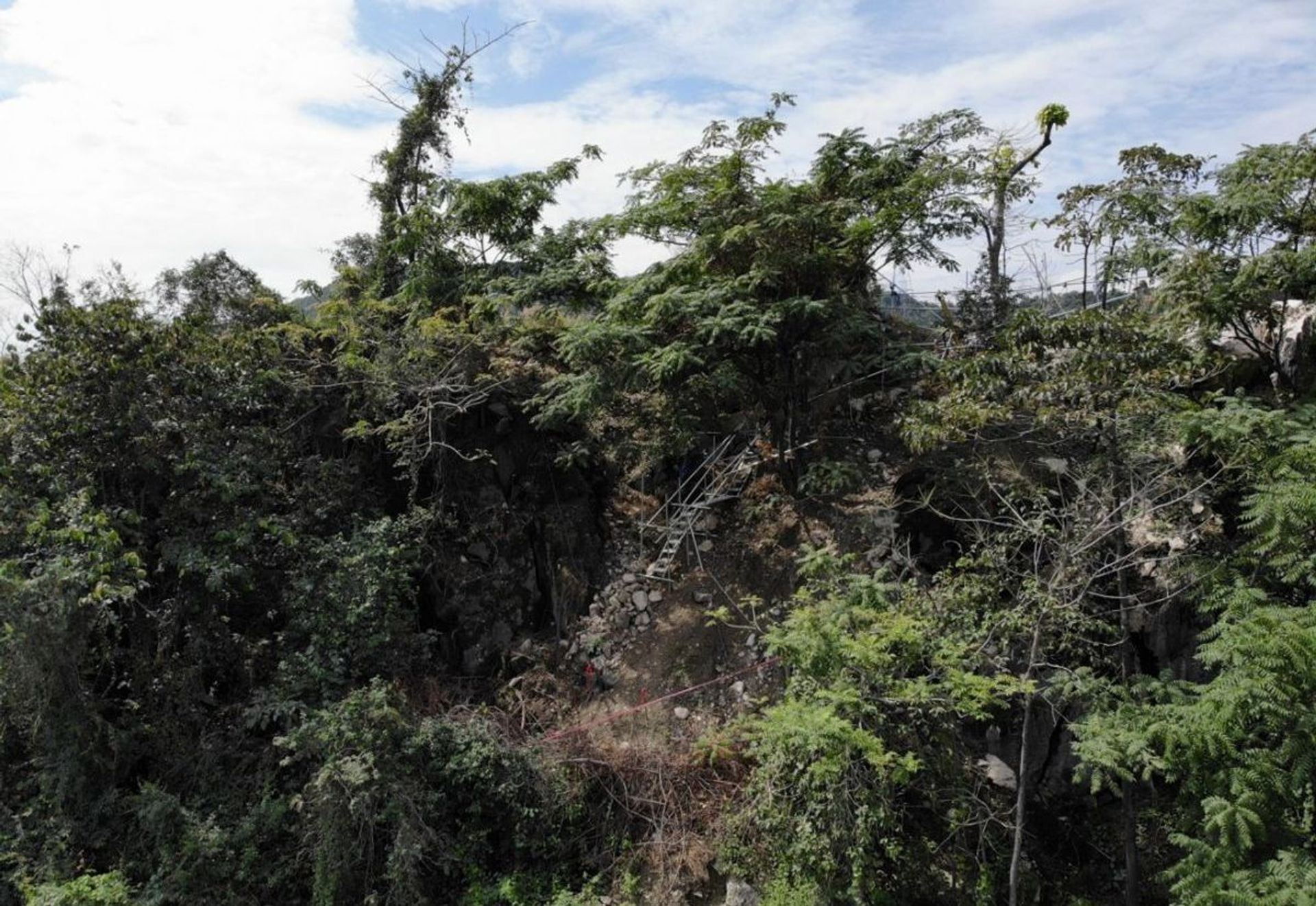

TERESA, RIZAL DYNAMIC ROCKFALL BARRIER
TERESA, RIZAL DYNAMIC ROCKFALL BARRIER_0

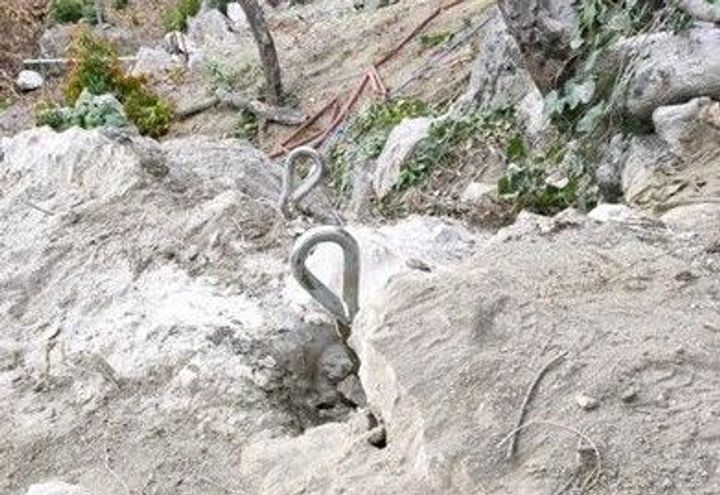

TERESA, RIZAL DYNAMIC ROCKFALL BARRIER_1

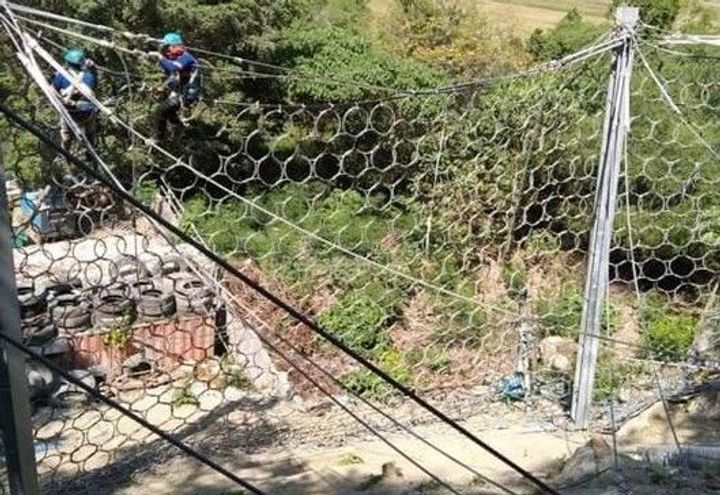

TERESA, RIZAL DYNAMIC ROCKFALL BARRIER_2
TERESA, RIZAL DYNAMIC ROCKFALL BARRIER_3
TERESA, RIZAL DYNAMIC ROCKFALL BARRIER_4
Problem

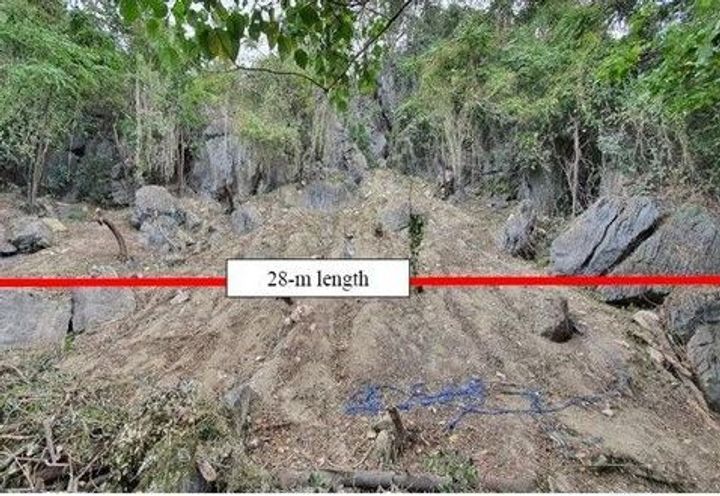

A cement manufacturing company faced a 120 – ton boulder threatening to destroy three of their main structures in the event of rockfall. The boulder’s volume is estimated to be 44.44 m3 with a unit weight of 2,700 kg/m3 reaching a rock mass of 120 tons. The slope length where the boulder is located is 28 meters in length and the slope composition is made up of silty sand.
Solution
Maccaferri Philippines provided technical and design assistance in the construction of the30 linear meters Maccaferri dynamic rockfall barrier (RMC850A). The rockfall barrier was designed in accordance with UNI 11211- 4:2012 Rockfall protection works – Part 4: Definitive and executive design. Prior to the installation of the rockfall barrier, area clearing is done along the slope. The boulder was broken up into smaller pieces, resulting in a smaller size boulder with a volume of 22.22 m3 and a rock mass of 60 tons. Based on the analysis and calculations, it was determined that the RMC850A Barrier will be sufficient to arrest the energy of the fragmented boulder. Maccaferri RMC850/A has a MEL Rated Capacity of 8,644 kJ. Applying the Risk Amplification Factor and the Barrier Capacity Reduction Factor, a barrier design capacity of 6,548.48 kJ is obtained.
