Reinforced Soil Walls and Slope Reinforcement
2020
ANTIPOLO CITY, RIZAL - REGION IV-A - Philippines
Piedras Negras Construction and Development Corporation
SUN VALLEY SUBDIVISION
SUN VALLEY SUBDIVISION_0
SUN VALLEY SUBDIVISION_1
SUN VALLEY SUBDIVISION_2
SUN VALLEY SUBDIVISION_3
SUN VALLEY SUBDIVISION_4
Problem

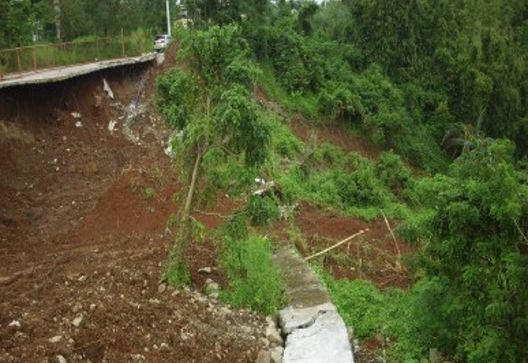

On September 26, 2009, the Philippines was devastated by a tropical storm Ondoy (or Ketsana, international name), with a record-breaking amount of rainfall that left damages on agriculture, lives, and properties in affected regions. One of the hardest hit areas was the province of Rizal. Sun Valley Subdivision, a residential community located in the mountainous landscapes of Antipolo City, Rizal has been affected. Typhoon Ondoy caused a landslide about 15 meters in height below a portion of its major service road.
Solution

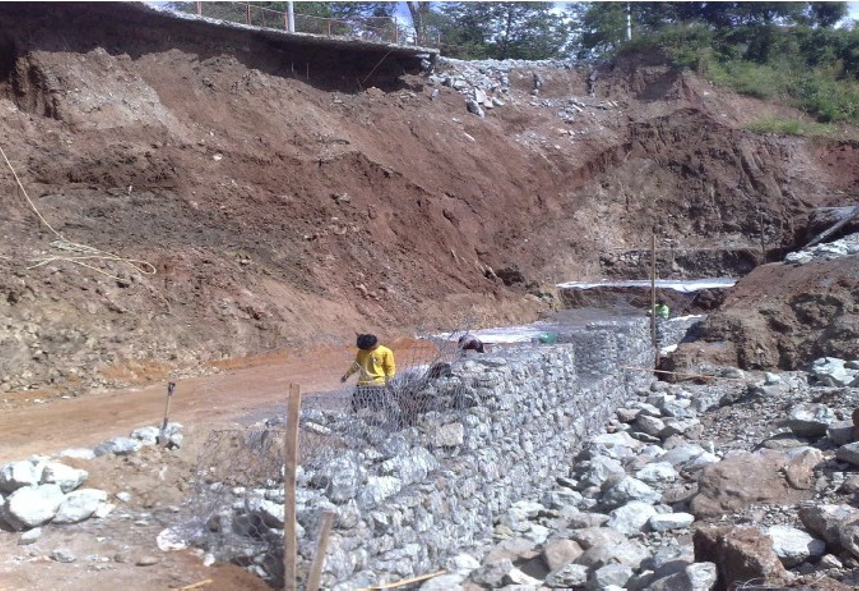

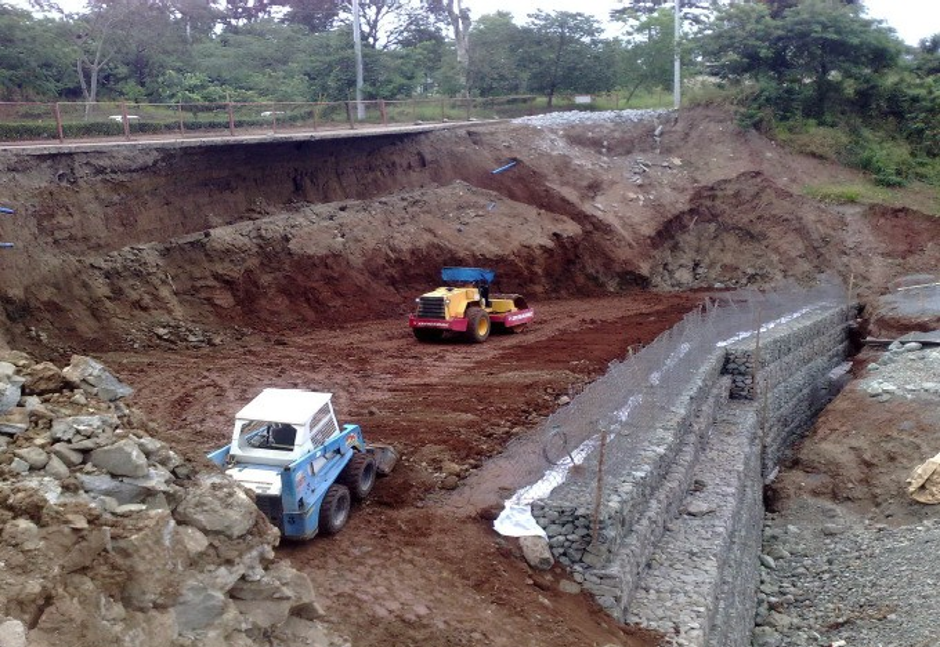

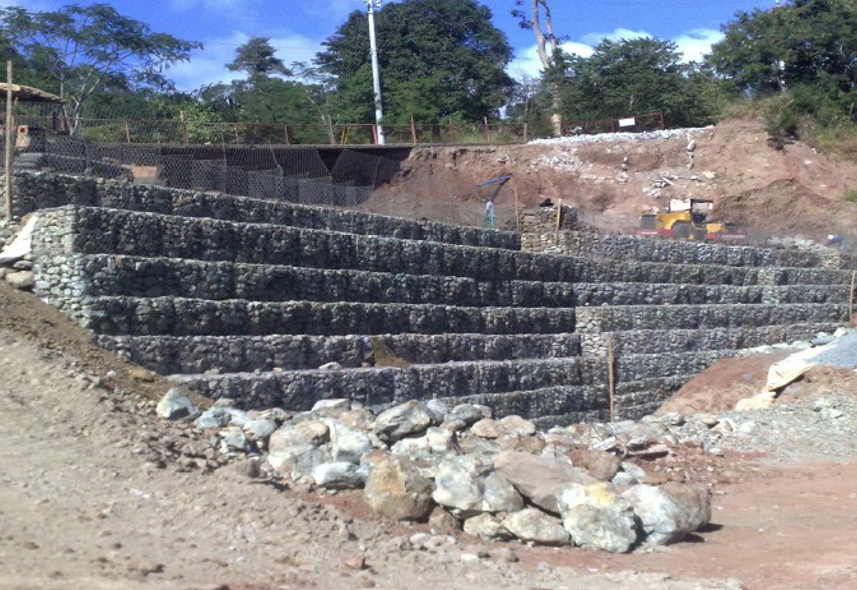

After soil investigation and analysis, Maccaferri engineers designed a mechanically-stabilized earth (MSE) wall system composed of Terramesh System units and gabions. The structural integrity of the MSE wall was verified using Maccaferri’s internal design software and was approved by the contractor’s (Piedras Negras) engineers. Terramesh units and gabions provide a porous facing, and naturally blends with the green landscape of Sun Valley.
Used Products
Gabions
Maccaferri Gabion is a Double-Twisted “DT” wire mesh container of variable sizes uniformly partitioned into internal cells, interconnected with othView
TerraMesh
Maccaferri Terramesh® Family includes different facing options to build a Mechanically Stabilized Earth (MSE) structures and Reinforced Soil SlopesView
