Reinforced Soil Walls and Slope Reinforcement
2020
SAN PEDRO, LAGUNA - REGION IV-A - Philippines
Filinvest Land Inc.
SOUTH PEAK VILLAGE
SOUTH PEAK VILLAGE_0
SOUTH PEAK VILLAGE_1
SOUTH PEAK VILLAGE_2
SOUTH PEAK VILLAGE_3
Problem
A six-meter high stone masonry wall along a creek inside the South Peak Village in San Pedro, Laguna, Philippines has collapsed and thus required urgent rehabilitation. The said wall was designed to support the saleable lot for residential development. Build up of excess pore water pressure behind the wall was the main reason of wall failure as per the post-failure investigation.
Solution

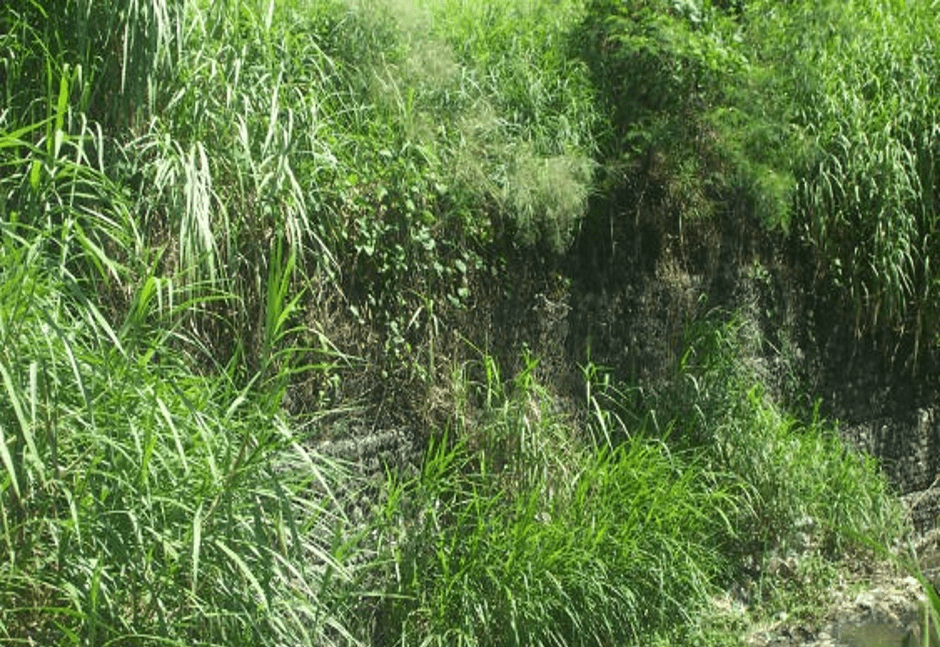

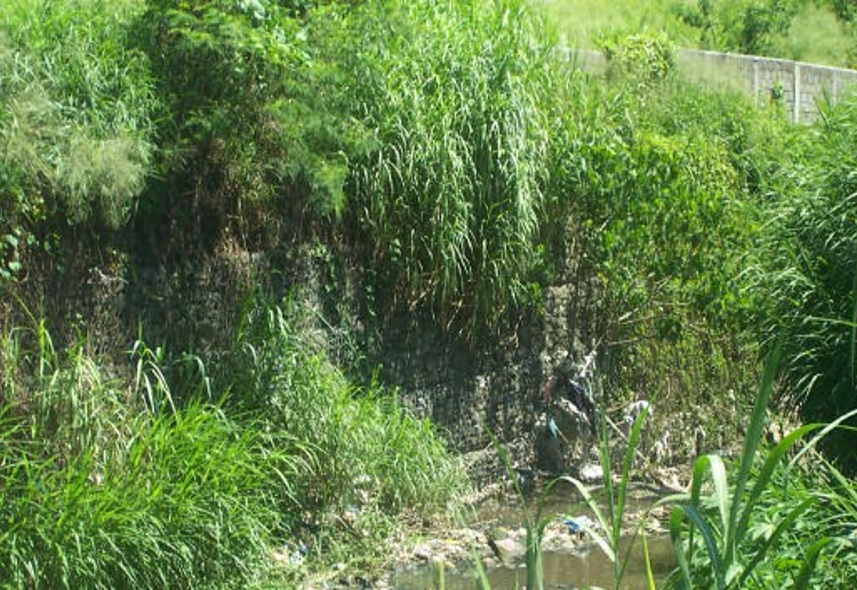

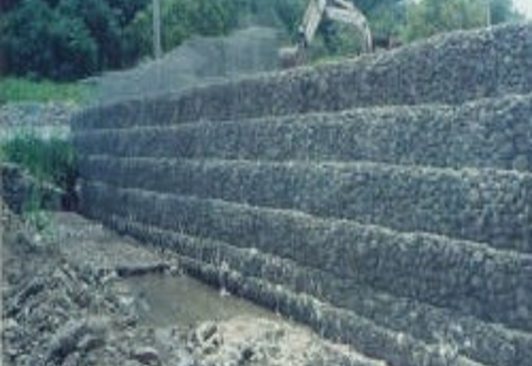

FLI engineers explored all possible alternatives to the failed stone masonry wall. Maccaferri engineers proposed a new wall concept – the mechanically-stabilized stabilized earth wall, using Terramesh units. Upon review of FLI engineers, the design was approved considering integrity, economy, and ease of installation even on rainy season. Moreover, the other advantages of the Terramesh system MSE wall over rigid structures are: 1) it reduces build-up of excess pore water pressure behind the wall, 2) it is a flexible structure (allows certain degree of movement), 3) it can be installed easily even by unskilled workforce; 4) it is an environmentally-sound solution that encourages the growth of vegetation and fauna, and 5) aesthetically-looking finish of wall surface.
Used Products
TerraMesh
Maccaferri Terramesh® Family includes different facing options to build a Mechanically Stabilized Earth (MSE) structures and Reinforced Soil SlopesView
