CANYON RANCH EXPANSION

Home > Success stories > CANYON RANCH EXPANSION

Reinforced Soil Walls and Slope Reinforcement

2020

CANYON RANCH RESIDENCES, SAN LAZARO LEISURE PARK, CARMONA, CAVITE - REGION IV-A - Philippines

Century Communities Corporation

CANYON RANCH EXPANSION

Problem

At Phase I development of the Canyon Ranch Residences, Blocks 8 and 14 were left undeveloped due to their existing site conditions. These blocks were along the property line and the slope adjacent to them was very steep. Residential buildings, a chapel, and a commercial building were to be constructed in the area. To protect the blocks, an 11 meter-high retaining wall was required to be constructed at the steep slope. The wall aimed to maximize the area of the property such that an additional flat land on top of the wall must be achieved.

Solution

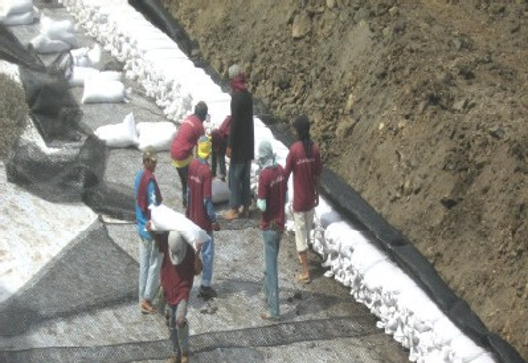

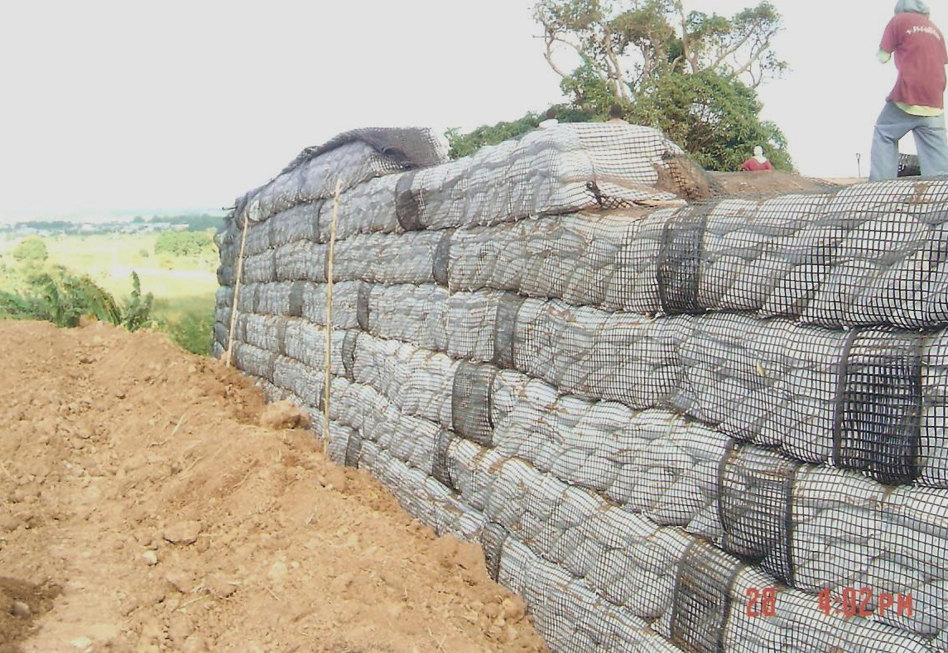

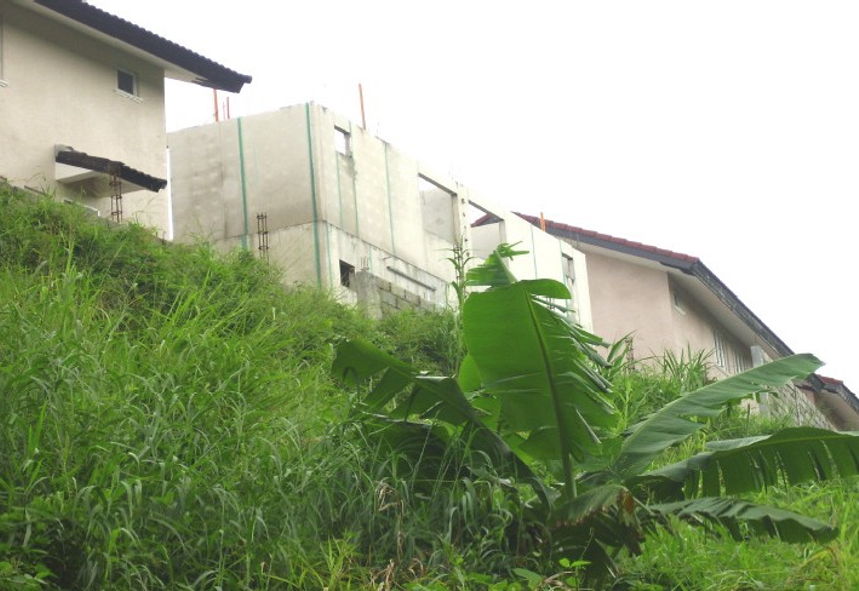

Maccaferri engineers designed an economical and practical earth retaining structure for the project. After evaluation of site conditions and project requirements, Maccaferri’s wrap-around MacGrid geogrid mechanically-stabilized earth wall system was used. The economical savings and ‘green facing’ feature of the chosen wall system have paved the way for its immediate acceptance by the customer.

Used Products

MacMat
MacMat
Geomats are made of synthetic material filaments. The filaments are heat-tangled together to form a three-dimensional, highly deformable and of higView
star
TerraMesh
TerraMesh
Maccaferri Terramesh® Family includes different facing options to build a Mechanically Stabilized Earth (MSE) structures and Reinforced Soil SlopesView
