Seawalls and Shoreline Structures
2009
TONDO, MANILA CITY - NATIONAL CAPITAL REGION - Philippines
Philippine Reclamation Authority
BASECO COMPOUND RECLAMATION
BASECO COMPOUND RECLAMATION_0
BASECO COMPOUND RECLAMATION_1
BASECO COMPOUND RECLAMATION_2
BASECO COMPOUND RECLAMATION_3
BASECO COMPOUND RECLAMATION_4
BASECO COMPOUND RECLAMATION_5
Problem

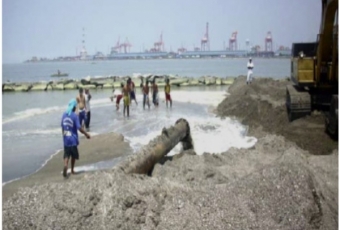

The Philippine Reclamation Authority (PRA) has proposed another 10 hectares reclamation project for a socialized housing at the Bataan Shipping and Engineering Company (BASECO) Compound, Tondo, Manila City, Philippines. This project was an extension of the previously constructed 256-hectare reclamation project of PRA. The project was awarded to FF Cruz & Construction, Inc. A containment wall (revetment) was needed on the existing breakwaters to protect the reclamation area from coastal erosion resulting from effects of waves and tidal changes. The contractor decided to look for an alternative system that would work for the same objective of protecting compacted backfill materials behind the revetment against erosion while making use of qualified dredged sediments.
Solution

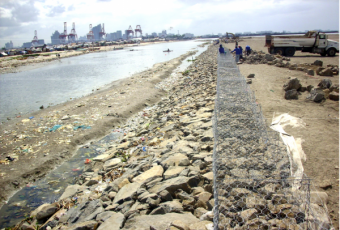

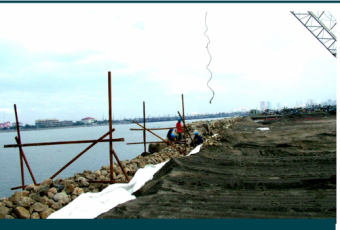

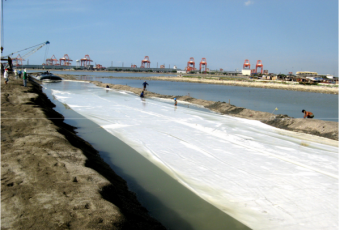

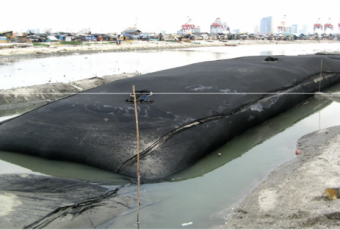

Based on an existing design, Maccaferri materials have been qualified and approved for the project. Maccaferri’s MacTube made from high-strength woven polypropylene geotextile combined with its woven polyester geotextile for basal reinforcement as well as MacTex nonwoven geotextile for filtration, separation and protection have been successfully installed in the project. Moreover, Maccaferri gabions have been placed on top of the rock armour layer to serve as barriers for road.
Used Products
Gabions
Maccaferri Gabion is a Double-Twisted “DT” wire mesh container of variable sizes uniformly partitioned into internal cells, interconnected with othView
Synthetic Marine Solutions
Not a product but a family of products tayloredtailored for marine applications; it means that all the all materials used as baseline are able to rView

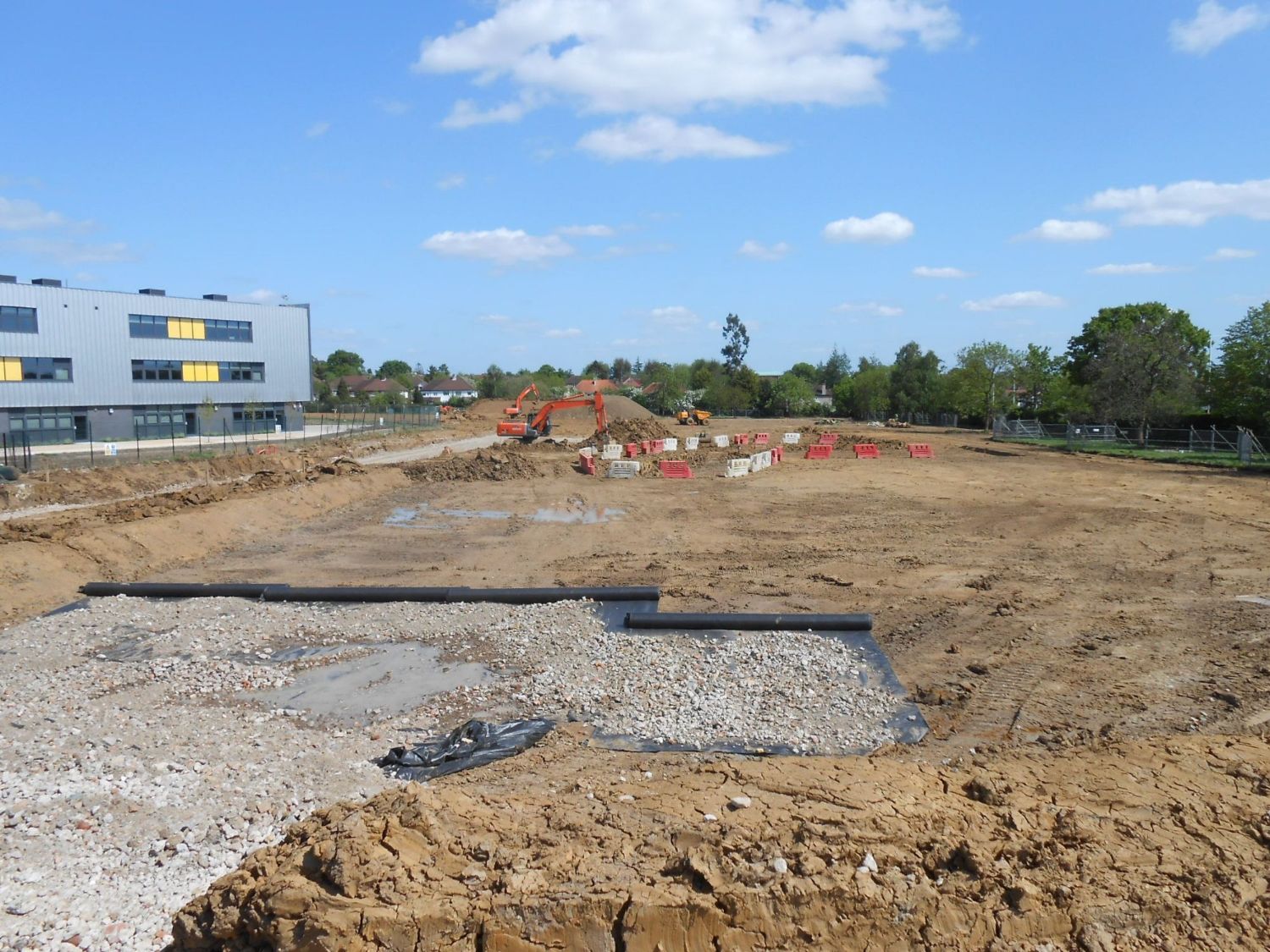

PP/PE Woven Geotextiles
Woven polyolefin geotextiles (either PE or PP based) are flat and regular structures manufactured by weaving into a fabric shape two or more seriesView
