Quays, Piers and Jetties
2020
BALESIN ISLAND, POLILLO, QUEZON - REGION IV-A - Philippines
Alphaland Corporation

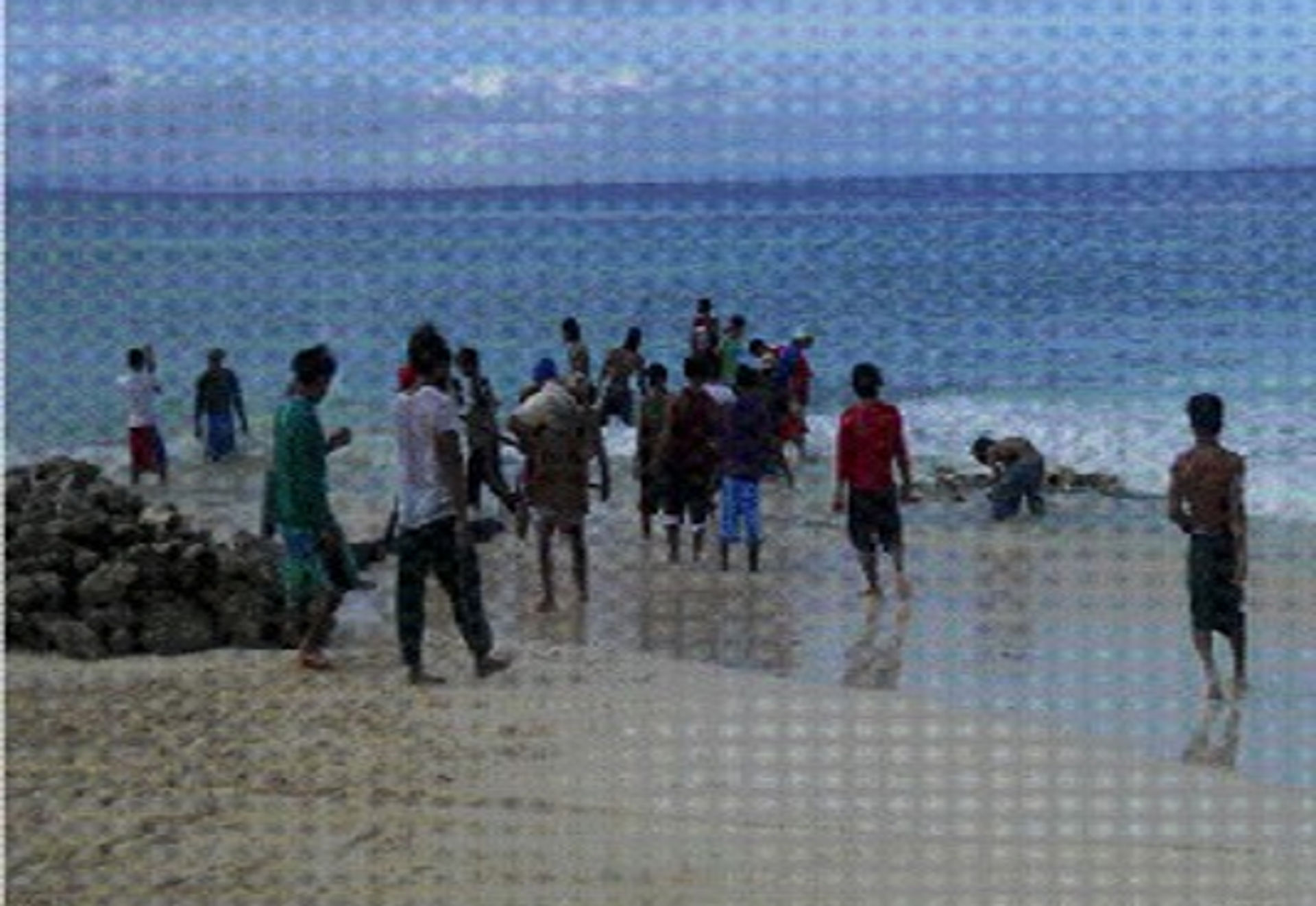

BALESIN ISLAND CLUB JETTY

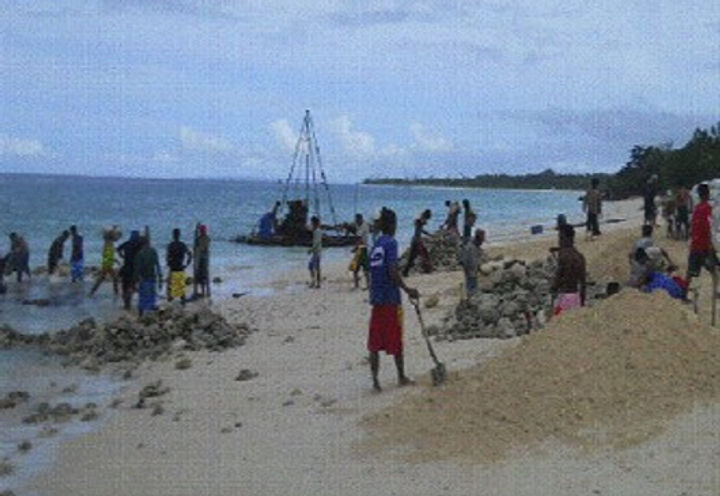

BALESIN ISLAND CLUB JETTY_0
BALESIN ISLAND CLUB JETTY_1
Problem
Alphaland Corporation developed a private resort on a 424-hectare Balesin Island in Quezon province, Philippines. The island is located east of Mauban, Quezon beside the Polillo Islands and nestles at the gate of Lamon Bay, one of the richest, undisturbed fishing grounds in the Pacific. To ensure transport of construction materials as well as food supplies to the island, a docking structure was required. In this, a temporary jetty was required. Albeit temporary, the jetty must be stable enough against constant thrust of waves and effects of tides.
Solution

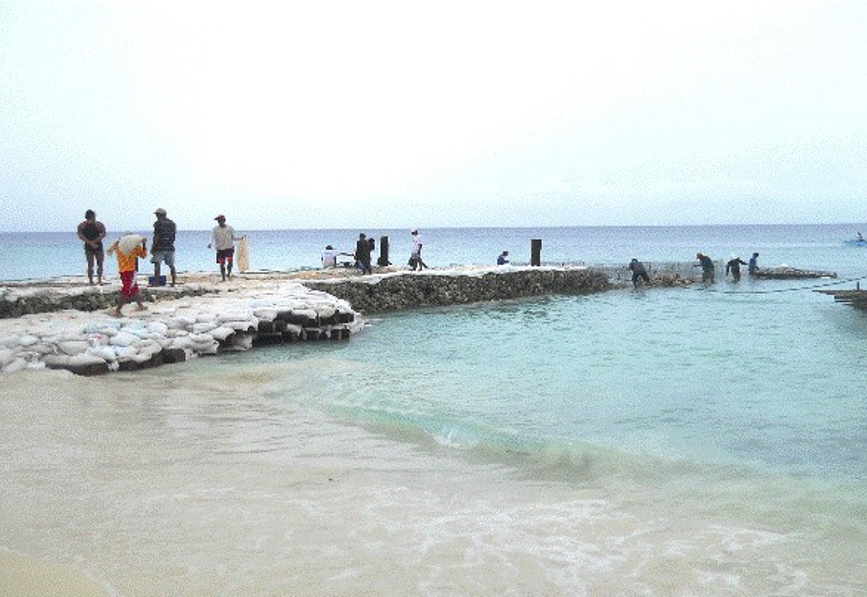

For the temporary jetty, Maccaferri engineers recommended a gabion structure. Abundant coralline rocks found in the island was maximized for filling of gabions. Reno mattresses were also used for scouring protection at the toe of the jetty. Beach sands were also used to fill core of the jetty structure contained by gabions. Since the jetty was partially submerged in sea water, gabions and Reno mattresses used were all polymeric-coated. To reinforce the jetty’s stability against strong waves and scouring, a stockpile of boulders was placed around its base.
Used Products
Gabions
Maccaferri Gabion is a Double-Twisted “DT” wire mesh container of variable sizes uniformly partitioned into internal cells, interconnected with othView
Reno Mattress Plus
Traditional river bank protections made with loose stones (rip-rap) require a thick layer of material to be effective. This is due to the fact thatView
