Reinforced Soil Walls and Slope Reinforcement
2020
LAHUG, CEBU CITY - REGION VII - Philippines
Rockwell Land Corporation
32 SANSON BY ROCKWELL

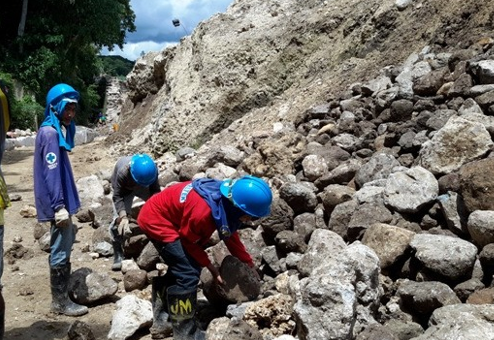

32 SANSON BY ROCKWELL_0
32 SANSON BY ROCKWELL_1
32 SANSON BY ROCKWELL_2

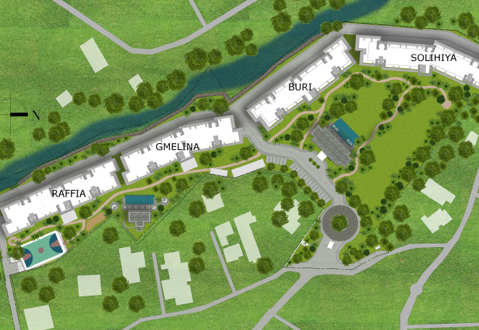

Site Development Plan
Problem
Rockwell Land Corporation developed a luxury condominium project in Lahug, Cebu City, Philippines. It is a 3.2-hectare project consisting of four residential towers with various amenities. The development is adjacent to a creek, and the Project Consultant (Meinhardt Philippines Inc.) decided to replace the old stone masonry wall along the creek boundary because the finished grade line of the project was designed to be higher than the existing wall’s height.
Solution

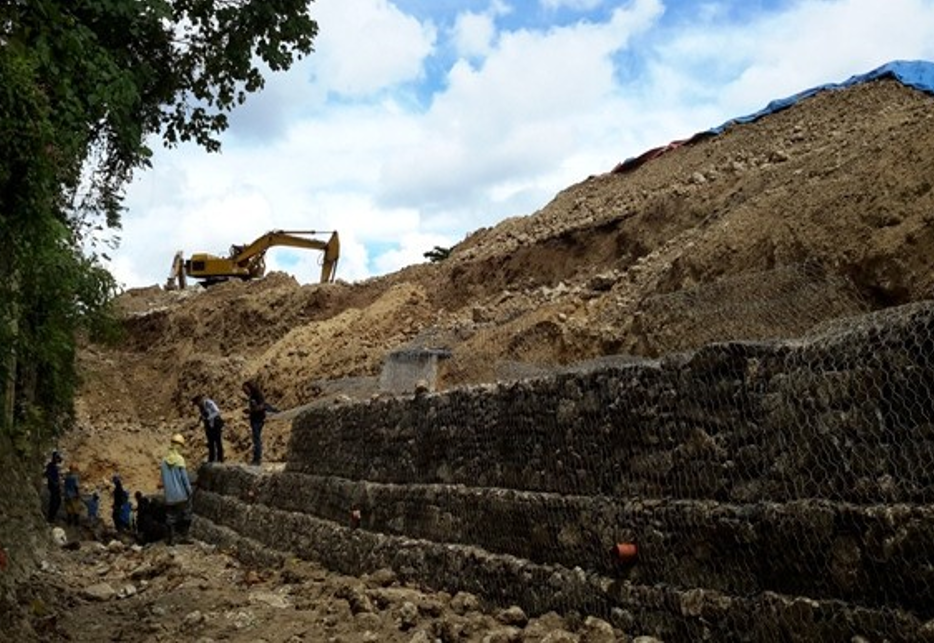

Based on the data provided by the Project Consultant, Maccaferri engineers recommended a mechanically-stabilized earth (MSE) wall system using Terramesh System units. The wall system has retained heights up to eight meters for a total wall length of 266 meters. A minimum embedment of one meter was required. The MSE wall was founded on a stable hard rock strata. In addition, a 2m-wide Reno mattress has been placed on the toe of the MSE wall for scouring protection. Maccaferri’s MacTex nonwoven geotextile was used as separator and filtration material behind the Terramesh System facing units. The backfill in the reinforced zone of the MSE wall was required to be compacted to minimum 95% of MDD by Standard Proctor.
Used Products
TerraMesh
Maccaferri Terramesh® Family includes different facing options to build a Mechanically Stabilized Earth (MSE) structures and Reinforced Soil SlopesView
