Drainage Geocomposites

Geocomposite named MacDrain®️ replacing gravel on construction sites

Home > Webinar > Geocomposite named MacDrain®️ replacing gravel on construction sites

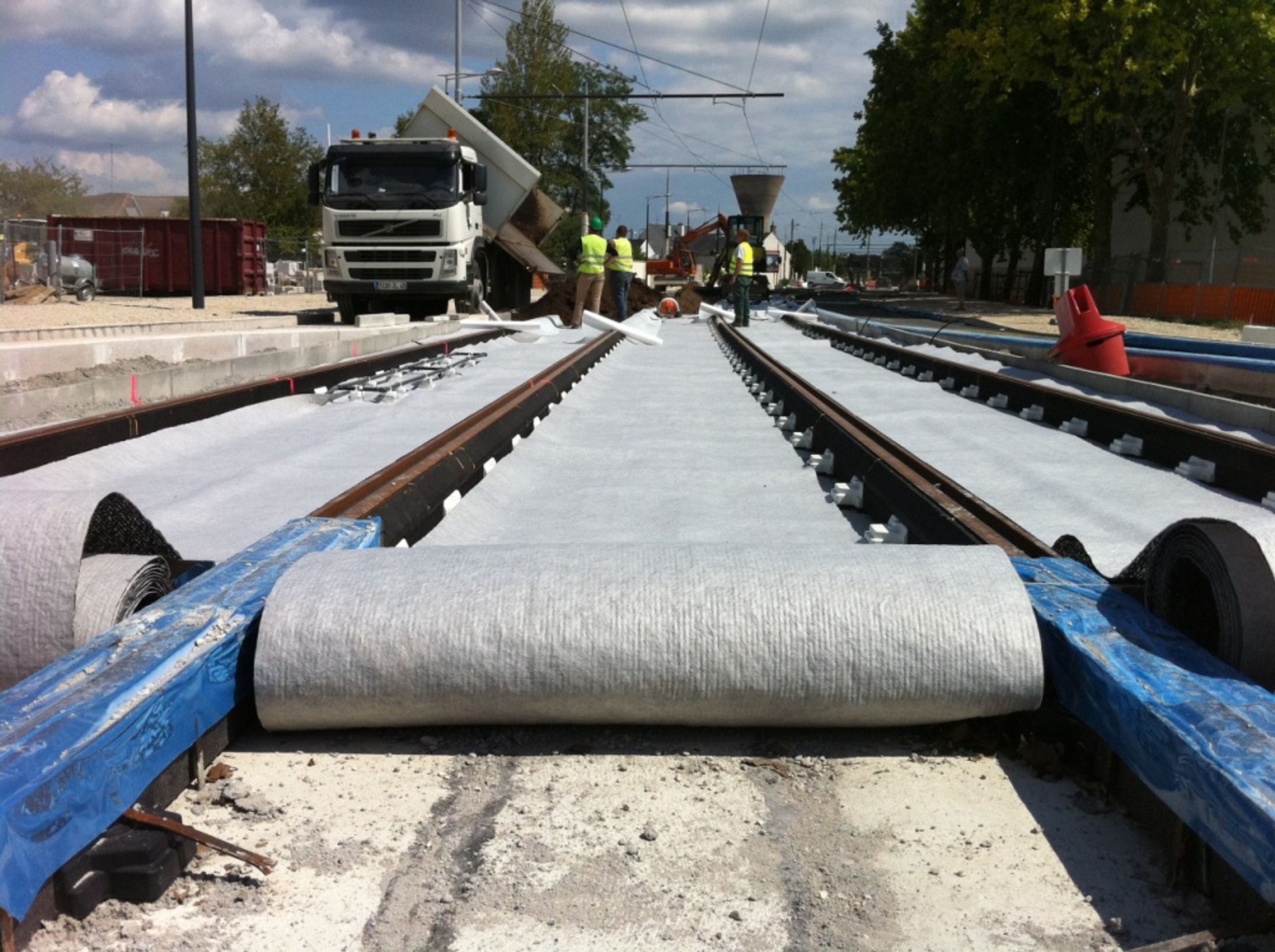

Geocomposite named MacDrain®️ replacing gravel on construction sites

Drainage Composites are made up by associating , during production, a draining core layer (it can be either a mat, a net or a moulded element) between two layers of geotextiles. The composite is capable of providing either filtering, separation and, sometimes, also other functions such as protection. Even with the multiple uses the main purpose is the drainage one, for this reason, the long term draining performances of the composite must be well known (compressive creep flowarate variations, filter efficency etc.).

The presence of water within soil of the ground adjacent to structures can cause numerous problems. Removing water from the soil with drainage systems is crucial, otherwise the ground could be weakened or could impose higher loads, altering the effectiveness of the structure. An adequate drainage system allows the ground to consolidate and perform better.A properly designed drainage geocomposite can often replace the traditional gravel drains that are used behind retaining walls and other structures such as sheet pile and contiguous piled walls or the basement walls to buildings. Horizontal drainage is often required on sports pitches or other large areas exposed to the potential of high rainwater run-off. The composite is capable of providing either filtering, separation and, sometimes, also other functions such as protection.

In this ‘Drainage with Geocomposites’ , will look at:

  • What a geocomposite drain is
  • Key benefits for environment and cost

Our design software supports our clients in the selection of the appropriate and more sustainable drainage system. Whether the drainage is vertical or horizontal, the range of MacDrain™ geocomposites are a cost-effective solution that also reduce the need for quarried materials and therefore polluting truck movements. In fact, our R&D campaign came to the conclusion that the use of MacDrain™ for horizontal drainage applications can lead to over 80% of material savings.

Watch Webinar today!

Speakers

https://www.maccaferri.com/uk/wp-content/uploads/2023/05/Jim-Herbert-100-x-100.png
Jim Herbet
Business Development

Need technical assistance?

We're here to help you with your next project.
