Mass Gravity Retaining Walls
2006
Hucknall, Nottingham
Nottingham County Council
Bodill and Sons Contractors Ltd
Bunyan Meyer Ltd
Whyburn Primary School

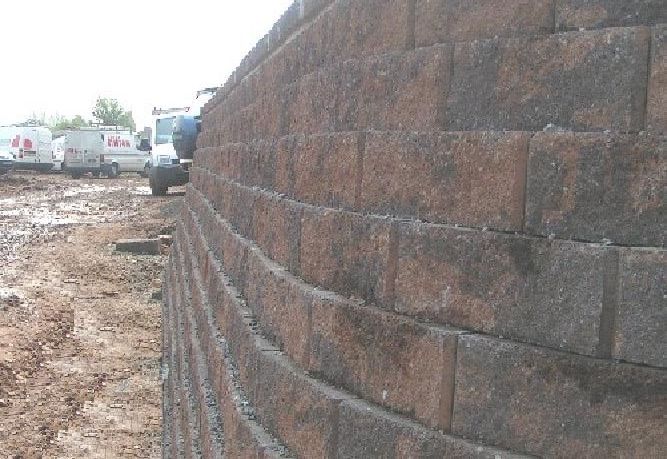

Post Construction
Post Construction
Problem
In 2005 the Nottinghamshire School Organisation Committee approved the amalgamation of Hucknall Spring Street and Whyburn Primary Schools to form a new community school. Combining the two schools required the construction of a large extension and remodelling of the existing Whyburn School building and grounds. The site topography required the construction of a 1.7m high retaining wall adjacent to the new extension building.
A brick-faced cast in-situ reinforced concrete retaining wall was originally considered by Nottinghamshire County Council (NCC). NCC was keen to consider innovative modern methods of retaining wall construction to save time on a tight construction programme and reduce the overall budget costs whilst ensuring that a highly aesthetically pleasing appearance was maintained.
Solution

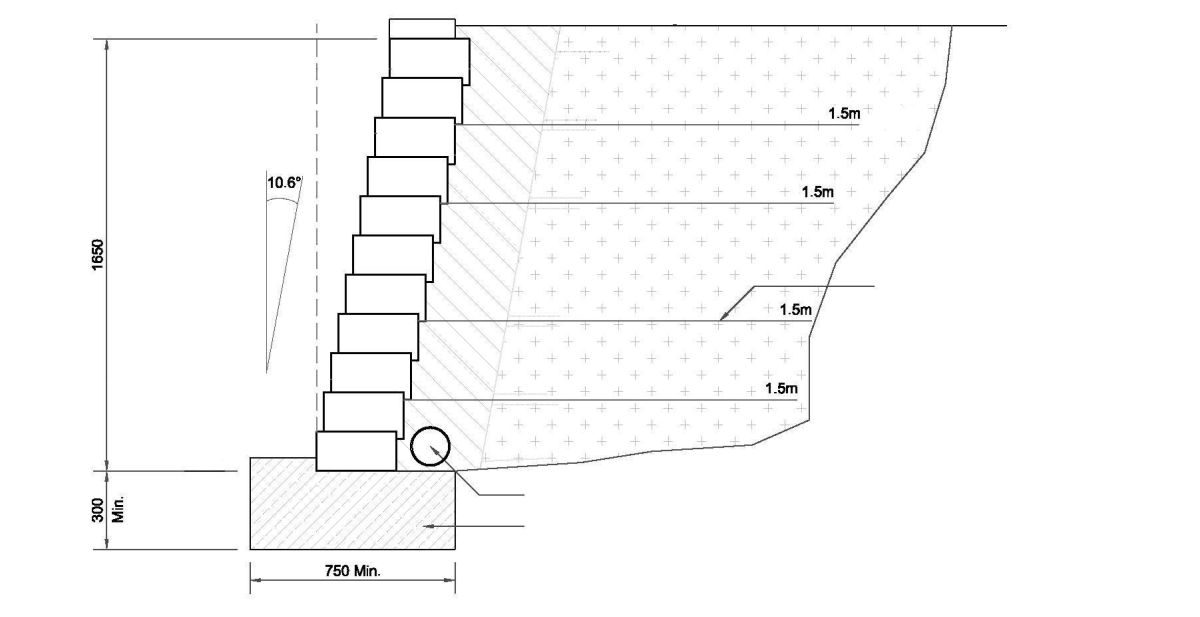

The MacWall Diamond system was specified by NCC after a preliminary costing exercise identified significant savings to programme and budget costs. Anchor Diamond is a dry-built mortarless segmental retaining wall system that combines a highly aesthetically pleasing face with cost-efficient geogrid reinforced soil. MacWall Diamond blocks are durable concrete products that connect using a rear lip locator on the back of each block. The reinforced soil consists of horizontal layers of BBA-certified geogrid (Paragrid 80/15s) placed within compacted granular material. The geogrids are frictionally connected to the Anchor diamond-facing blocks.
Unlike traditionally built reinforced concrete or masonry, a MacWall Diamond Retaining wall does not require a concrete foundation but a layer of compacted granular material as a levelling pad. The dry joints of the blocks allow for some differential movement to occur without cracks appearing. The off-site manufacturing of the materials ensures careful quality control and the dry build āmortarlessā construction does not require highly skilled labour such as bricklayers. C&BR Construction Ltd installed the wall under sub-contact to the main contractor, Bodill Construction of Nottingham.
