2001
Fife, Scotland
St Andrews Links Trust
HR Wallingford
Maccaferri
Coastal Erosion Protection at St Andrews Golf Links
Challenge
St Andrews Golf Links, one of the world’s most famous and historic championship golf courses, has been increasingly threatened by coastal erosion and rising sea levels. Located along the exposed Scottish coastline, the course is particularly vulnerable to the impacts of climate change, including global warming, stronger storm events, and persistent westerly winds.

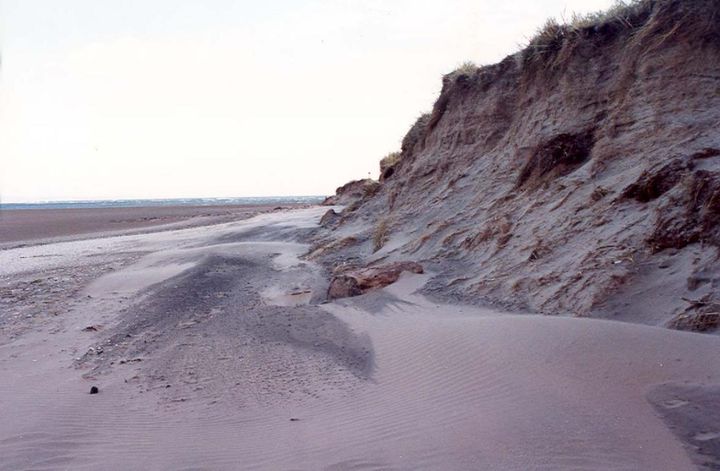

Over time, these forces have caused a significant retreat of the coastal sand dunes, which act as a natural defence for the golf course. The erosion has resulted in sand being blown onto greens and fairways, disrupting play and damaging the carefully maintained course conditions. Without intervention, the continued loss of dunes could permanently alter the natural contours of the fairways, some over 100 years old, and even lead to the loss of entire holes.
The situation was further complicated by strict environmental regulations. The dunes are designated as a Site of Special Scientific Interest (SSSI), meaning any coastal protection solution had to minimise environmental impact. Fife Council required a detailed feasibility study before approving any coastal defence works, ensuring that both sustainability and ecological preservation were prioritised.
Solution
To combat coastal erosion and protect the integrity of St Andrews Golf Links, the St Andrews Links Trust commissioned a comprehensive coastal protection scheme. Designed by leading engineering consultancy HR Wallingford, the solution combined both hard engineering and soft engineering techniques to deliver long-term shoreline stabilisation.

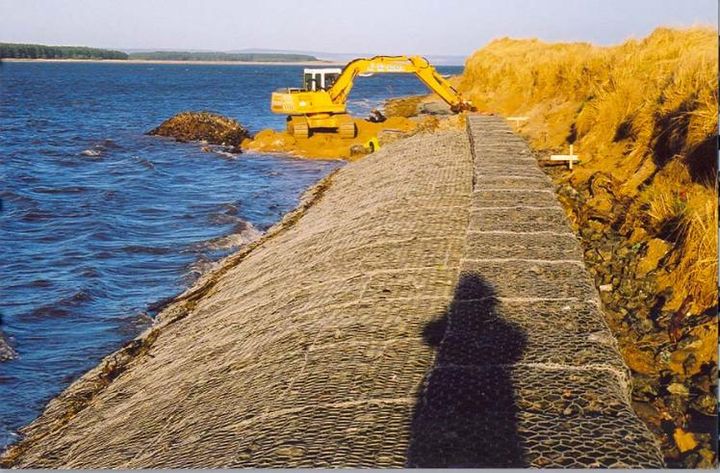

Maccaferri Construction was awarded the contract for the hard engineering works following a competitive tender process. Construction began in December 2000, targeting a 100-metre stretch of the most vulnerable dunes near the mouth of the River Eden estuary.

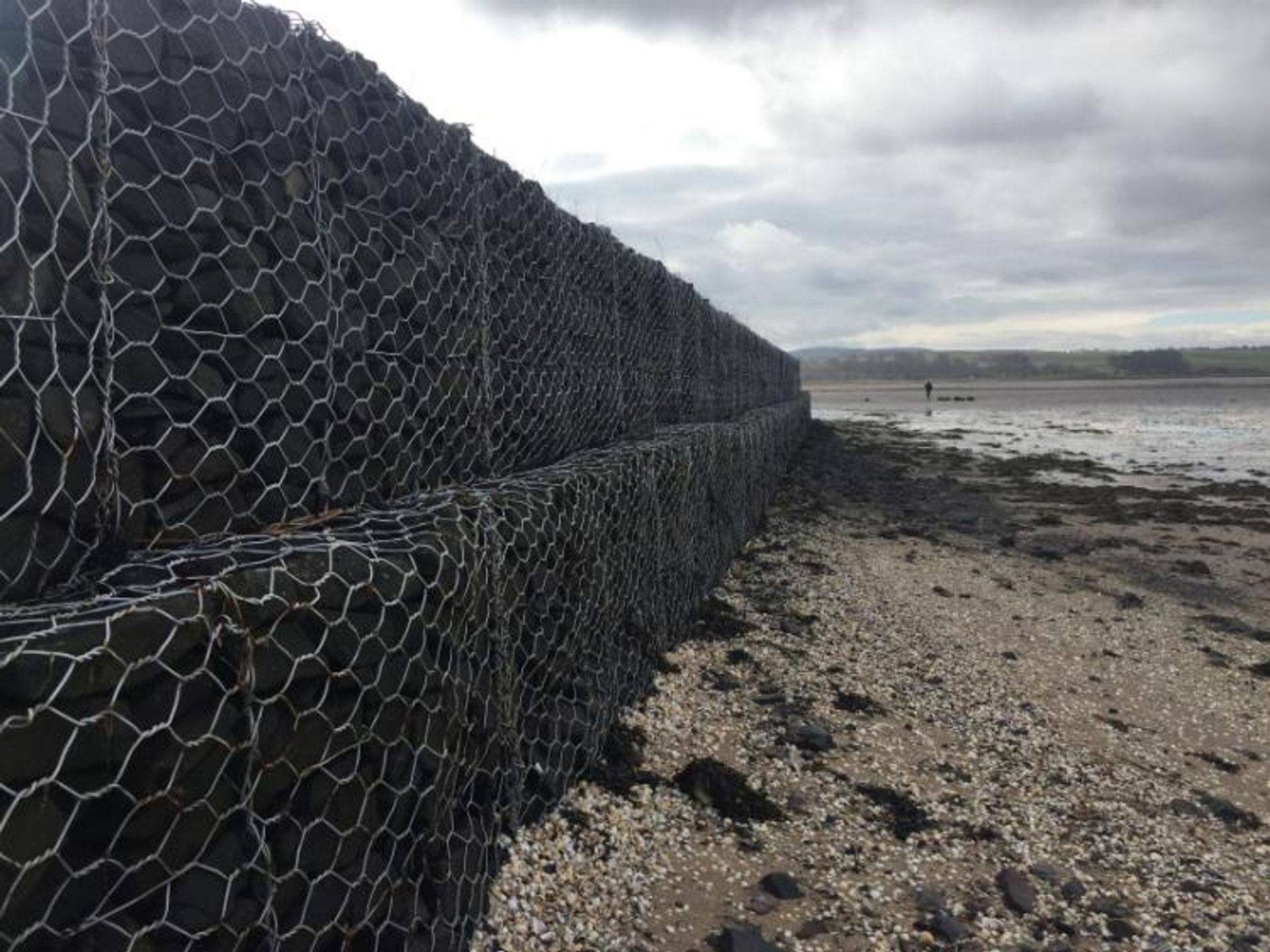

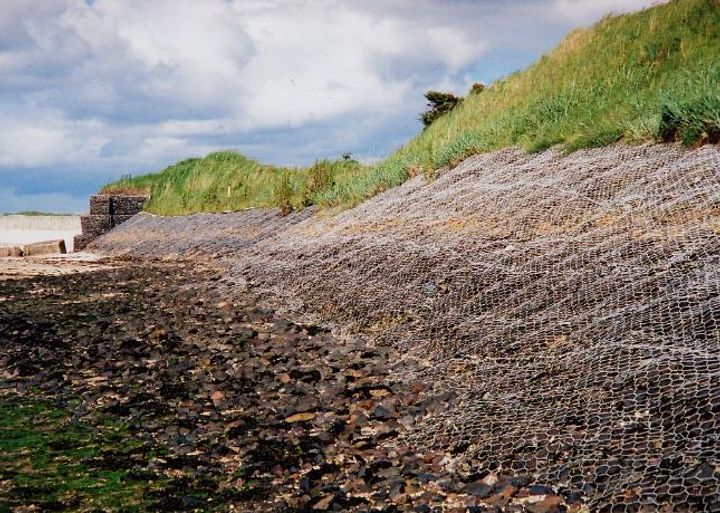

The core of the solution was the installation of a Reno mattress revetment system, 0.5 metres deep, designed to provide effective erosion control by stabilising the dune base and dissipating wave energy. A 0.5-metre high wave wall was constructed along the crest of the revetment to offer additional protection against storm surges and overtopping waves.
The system utilised polymeric-coated woven mesh gabions and mattresses, specifically engineered for coastal environments. These flexible gabion systems were chosen over welded mesh alternatives due to their superior performance in conditions involving wave action and differential settlement. The flexibility of woven mesh allows the structure to adapt to ground movement without compromising stability, making it ideal for dynamic coastal applications.

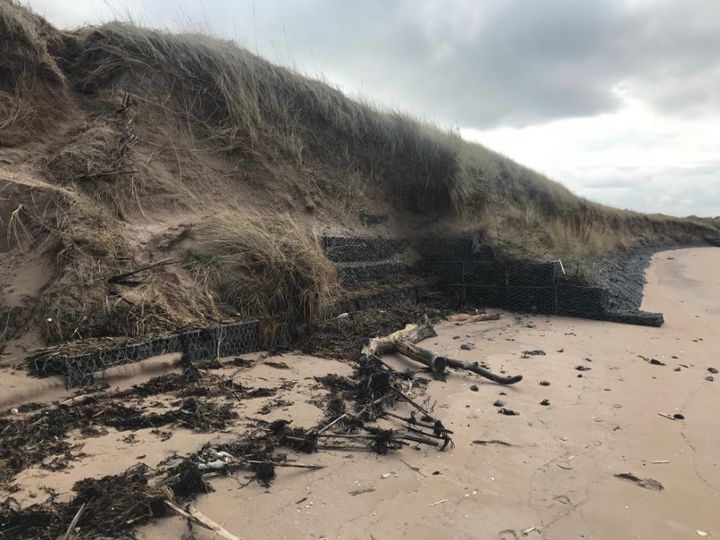

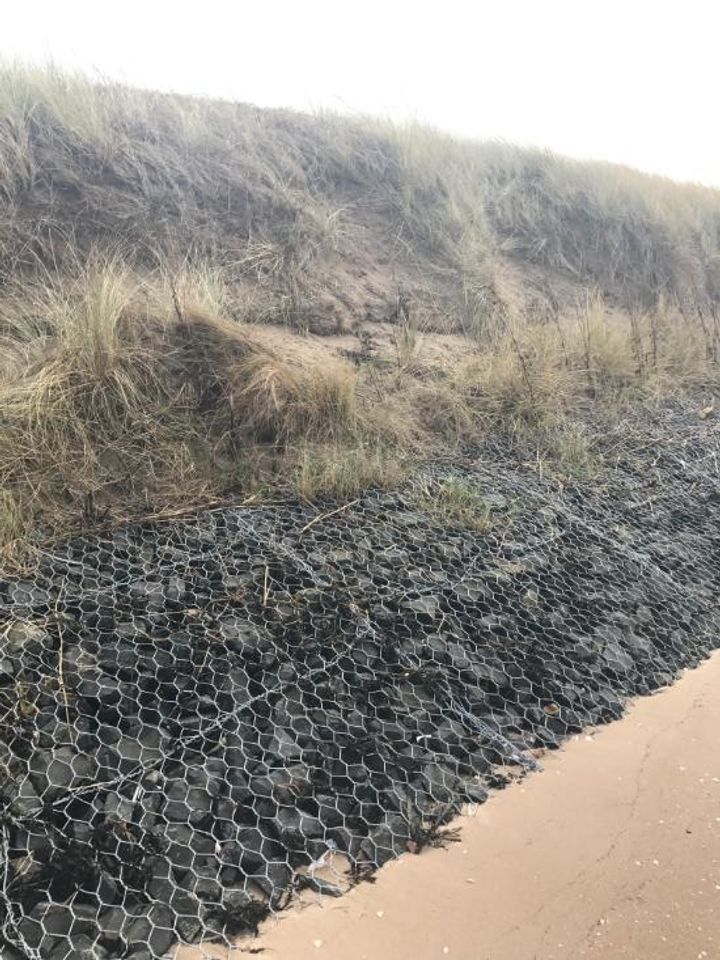

This coastal erosion protection solution not only safeguarded the historic golf course from further damage but also ensured compliance with environmental regulations. By integrating durable gabion technology with environmentally sensitive design, the project successfully preserved both the natural dune ecosystem and the world-renowned St Andrews Golf Links for future generations.
