Simple Drapery
2020
BHUMIBOL Â - TAK PROVINCE - Thailand
ELECTRICITY GENERATING AUTHORITY (EGAT)

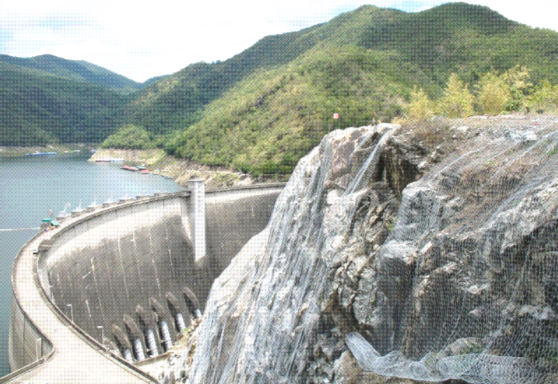

ROCKFALL PROTECTION AT BHUMIBOL DAM

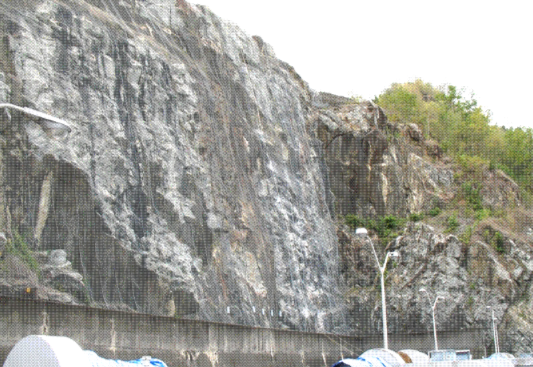

During construction (September 2008)
ROCKFALL PROTECTION AT BHUMIBOL DAM_1
Problem
Bhumibol dam is Thailandâs largest dam located at the northern part of Thailand and was constructed in 1964 mainly to control flood and generate electricity power. The dam is located very close to mountains and hilly areas which mostly are made up of Hornfel and Gneiss types of rocks. Due to the height (30 m to 50 m) and steepness of the slope (80 degrees), any falling debris or rocks can cause severe damage to the spillway of the concrete dam. Since the whole slope is stable in terms of global stability, the client was looking for a simple and effective method to control the debris and falling rocks.
Solution
Macacferri proposed simple drapery system as the most effective and economical solution to protect the dam from falling rocks. It consist of double twist hexagonal mesh with fixed anchorage at the top and removable anchorage at the bottom to facilitate during the maintenance. Maccaferri Macro 2 inhouse software was used to calculate the safety factor of the mesh. The net will be secured to the slope using rockbolt at 4 m x 4 m spacing and 50 cm depth. EGAT accepted the proposal based on the following advantages: – Effective and Simple Installation Method – Permenant Solution – Guaranteed Quality of The Product
