Revetment Protection
2020
PRACHUAP KHIRI KHAN - PRACHUAP KHIRI KHAN PROVINCE - Thailand
Public Works Department
PRACHUAP KHIRI KHAN BAY PROTECTION

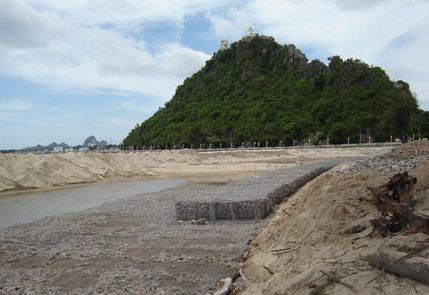

PRACHUAP KHIRI KHAN BAY PROTECTION_0
PRACHUAP KHIRI KHAN BAY PROTECTION_1

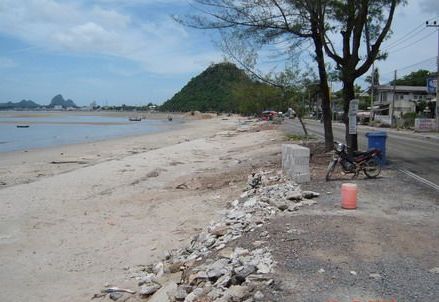

Before construction (1)

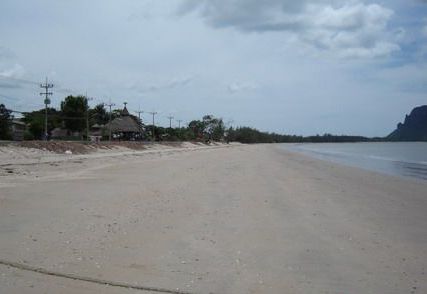

Before construction (2)
Problem
When there is an erosion process that does not affect the global stability creating superficial instability, then revetment is the suggested solution. The choice of the most suitable type of revetment must be done on basis of a comparison between the acting forces and serviceability limits of the material used. A shore stabilisation may involve the construction of a retaining structure that should not only affect natural filtration between the sea and the shore, but must also guarantee the required support.
Solution

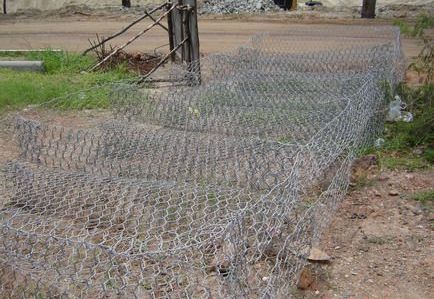

For several years, systems using double twisted wire mesh have been performed successfully in civil engineering applications. This is due to their peculiar characteristics, namely: âĒ Reinforcement – Gabion & Reno Mattresses are homogeneous monolithic structures designed to resist all forces exerted. âĒ Flexibility – Gabions and Reno Mattresses can resist unexpected or localized stresses due to large settlements. âĒ Permeability – Gabions and Reno Mattresses are filled with stones. Their structure can naturally drain water thereby reducing the risk of building of pore water pressure behind/underneath. âĒ Durability âĒ Ease of installation – Gabions and Reno Mattresses do not require specialized labour. âĒ Ease of maintenance – Maintenance works are very limited. âĒ Environmental friendliness – Gabions and Reno Mattresses blend into the natural environment allowing vegetation to growth spontaneously. In this case a combined solution, PVC Gabion wall together with PVC Reno Mattresses, was chosen. The Gabion wall height is 3m. The productivity rate for this project was 10 m3 per man per day . The following products were used: PVC Gabion 2x1x0.5m 50 m3 PVC Gabion 2x1x1m 4,584 m3 PVC Reno Mattress 6x2x0.3m 5,448 m2
