Surface Strengthening and Support
2020
DUDHNOI - ASSAM - India
Northeast Frontier Railway (NFR)
ROCKFALL MITIGATION ALONG RAILWAY LINE CUT SLOPES-DUDHNOI
Photo 1: Location map

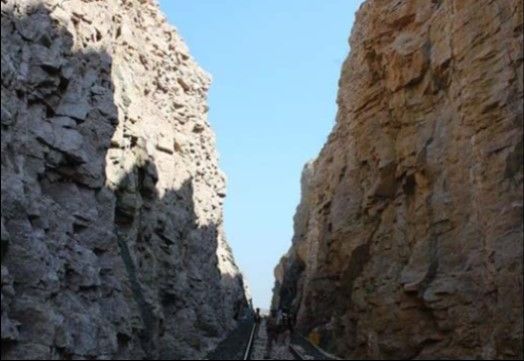

Photo 2: Site condition before construction

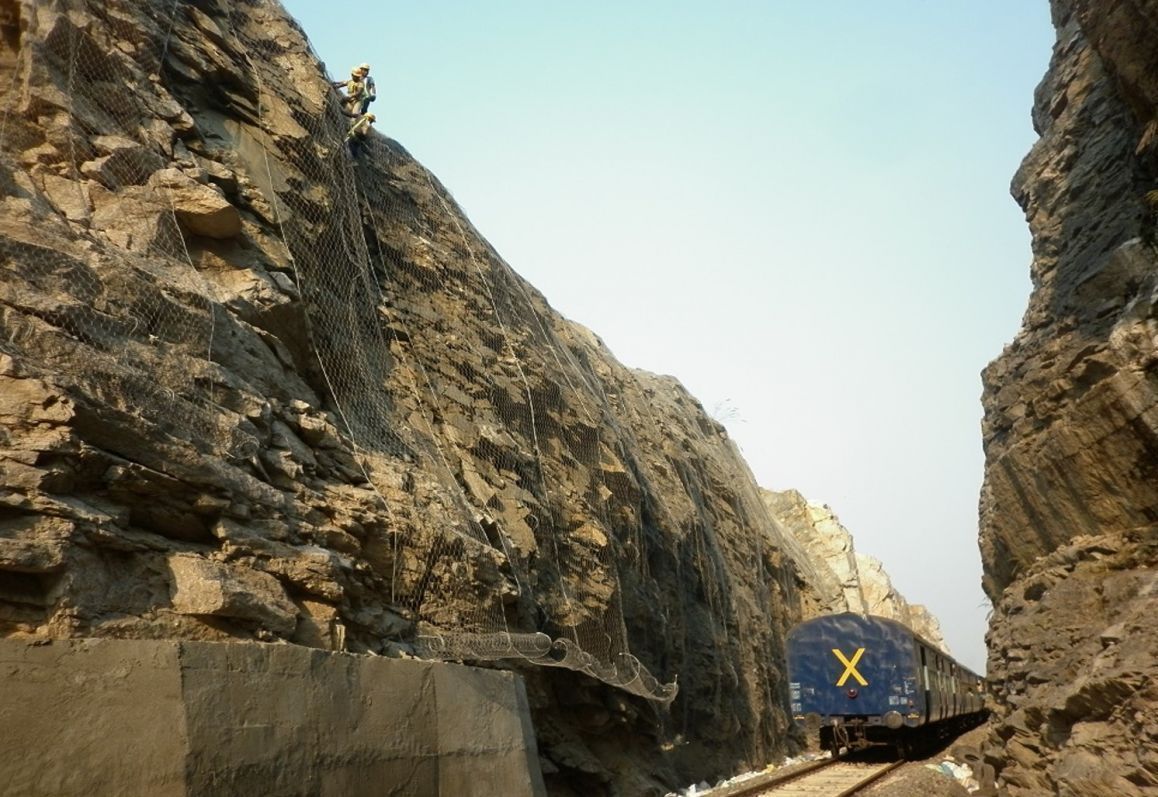

Photo 3: Execution in progress

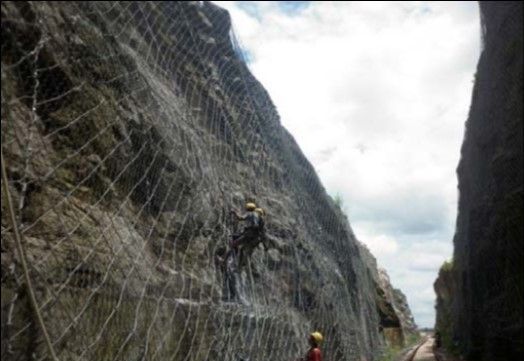

Photo 4: Mesh installation
ROCKFALL MITIGATION ALONG RAILWAY LINE CUT SLOPES-DUDHNOI_4

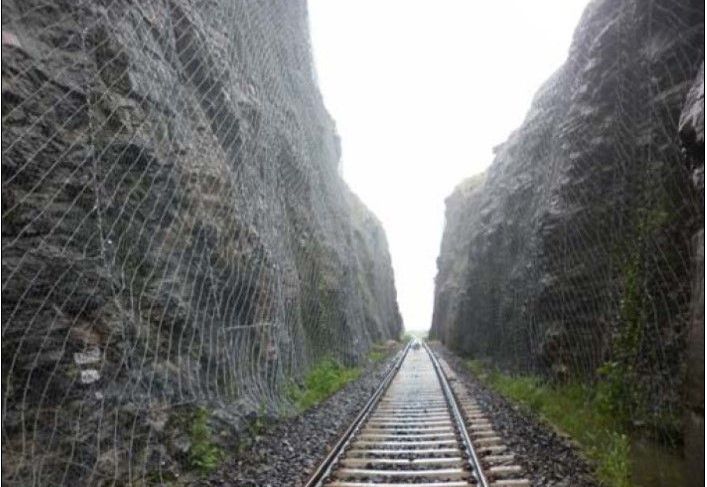

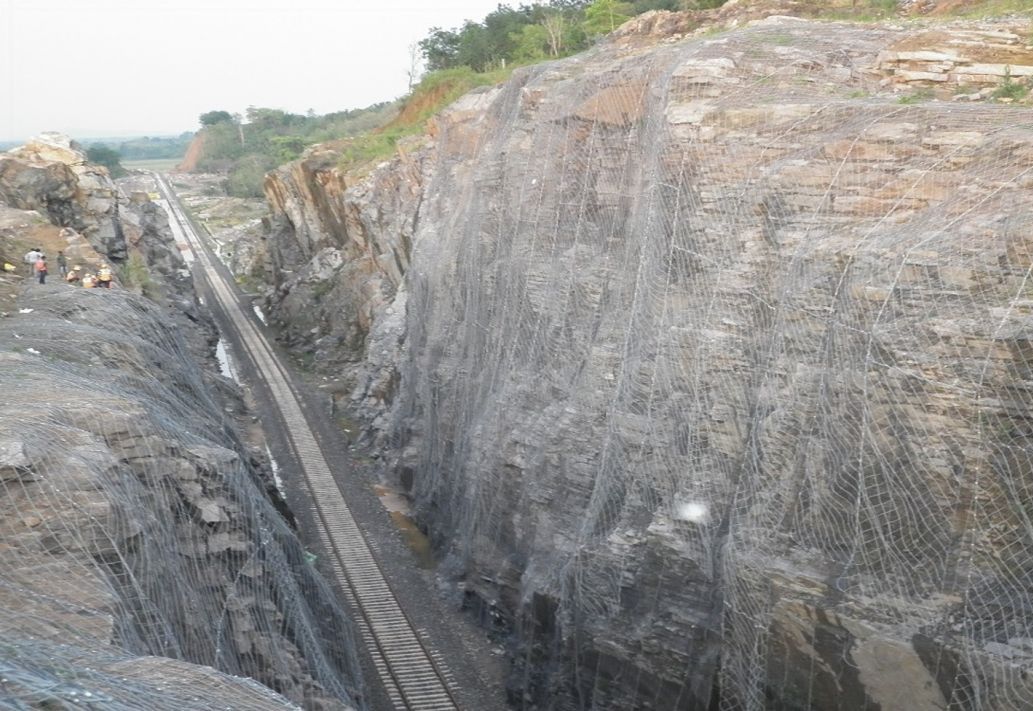

Photo 6: Completed rockfall protection work
Problem
The NFR, is one of the 17 railway zones in India. It is responsible for rail operations in the entire northeast of the country and parts of West Bengal and Bihar. The area of the NFR operations is characterized by exceptional beauty and at the same time by some of the most arduous terrain which makes any expansion of the network complex and expensive, and the only state in the area with an extensive rail network is Assam. With a view to improve the passenger amenities, NFR decided to construct a new railway line from Dudhnoi to Mendipathar to connect the Garo Hills in Meghalaya with Assam and the rest of the country. This new line passes through very complex terrain and the new railway track is laid in cutting at a number of locations. The side slopes of the cuttings were almost vertical to minimize excavation and there was a residual risk of rockfalls onto the track. A rockfall protection solution was required to minimize the risk of rockfalls disrupting the train operations. Compounding the solution was the limited availability of space between the wall of the cutting and the train envelope.
Solution
Traditional rockfall mitigation solution is using drapery meshes function by controlling the falling rocks behind a containment curtain of drapery mesh. Periodically, the collected rock debris are emptied during maintenance. However, in this instance there was insufficient space between the cutting and the railway to collect rock debris. Therefore a much stiffer mesh system was required. The mesh needed not only high tensile strength, but most importantly stiffness, i.e. It would exhibit minimal deflection under load. Accordingly, Maccaferri proposed High Energy Absorption Panels (HEA Panels) and Steelgrid MO meshes depending on the geology encountered. These were secured to the rock slope with top, bottom and intermediate anchors on the face. The surface anchors were of self drilling anchors(SDA)-32mm dia and 3m long.
Used Products
Panels
Maccaferri HEA Panels (High Energy Absorption) are the stiffest products within our Mac.RO(TM) Systems mesh range, offering extreme strength at lowView
