Reinforced Soil Walls and Slope Reinforcement
2020
CALICUT - KERALA - India
Hajj Committee, Kerala.
RETENTION WORKS FOR HAJJ HOUSE
RETENTION WORKS FOR HAJJ HOUSE_0

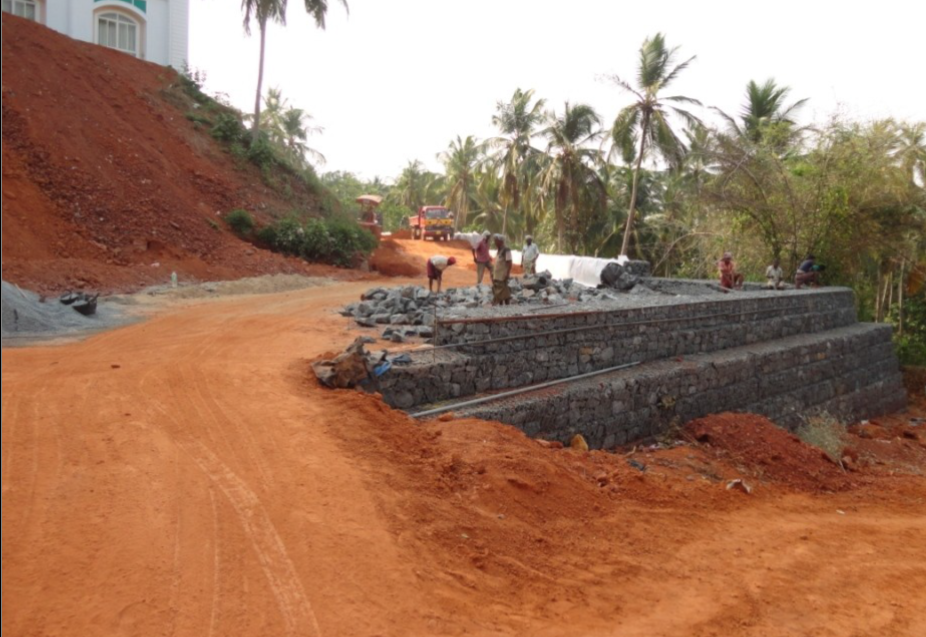

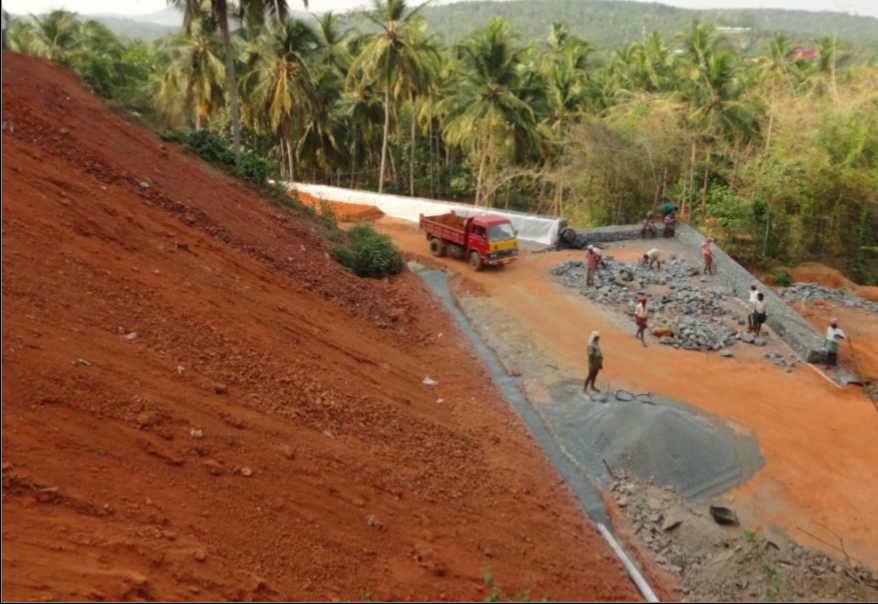

Photo 3 : During Construction

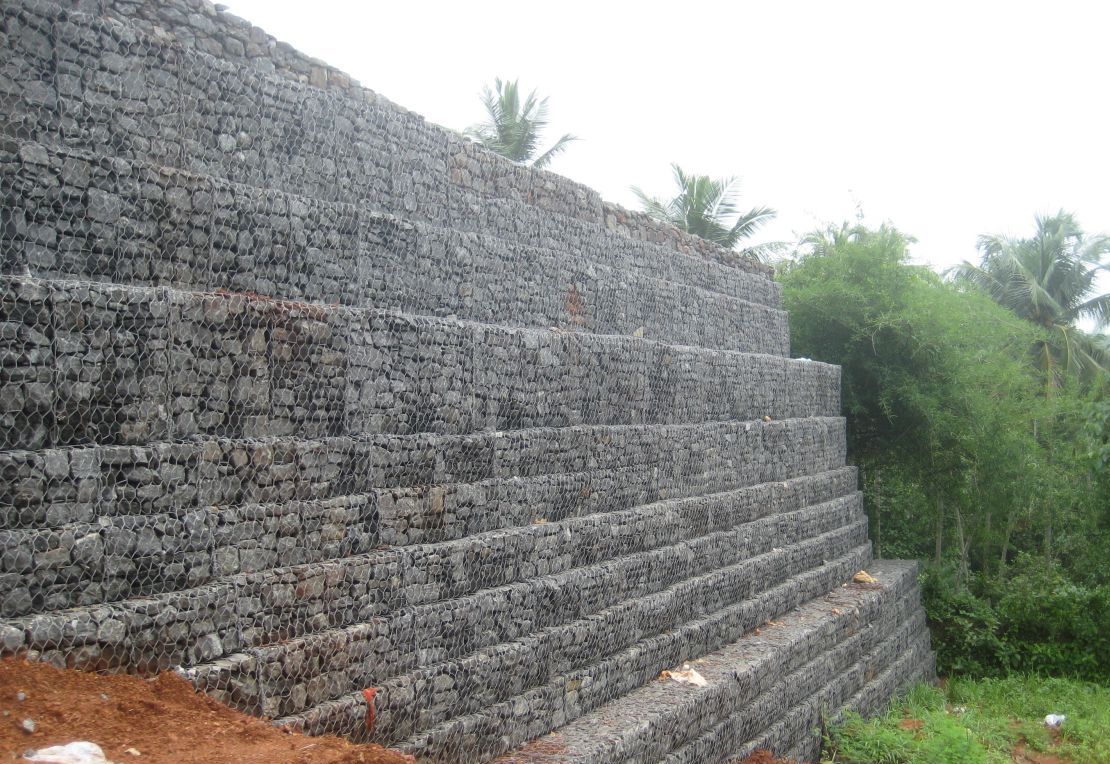

Photo 4 : Completed Structure

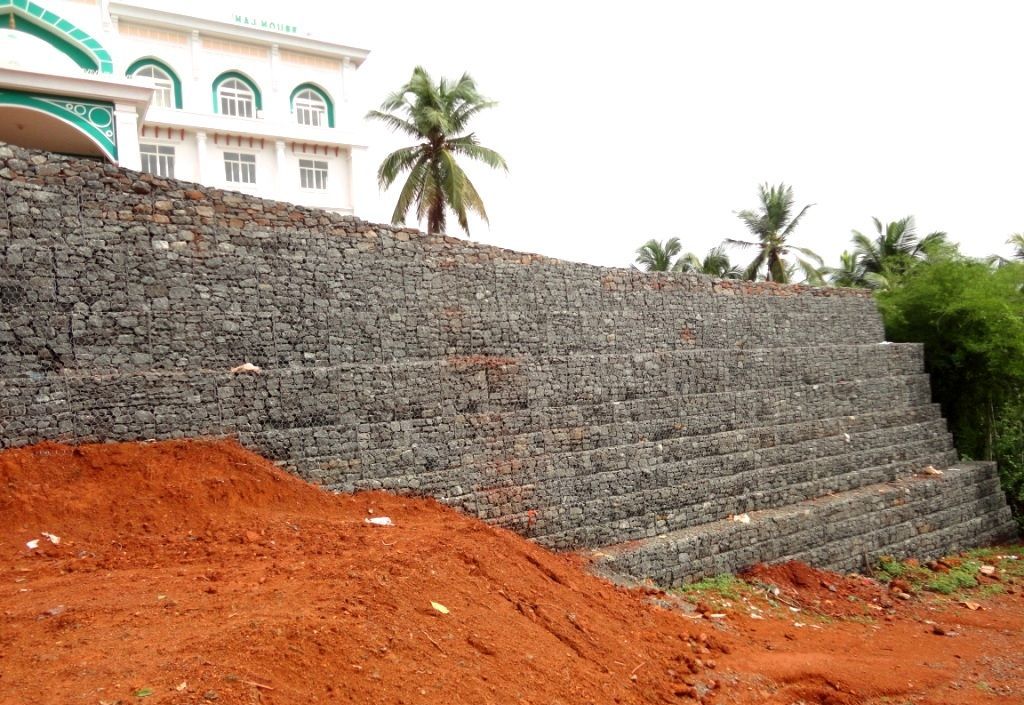

Photo 5 : Completed Structure

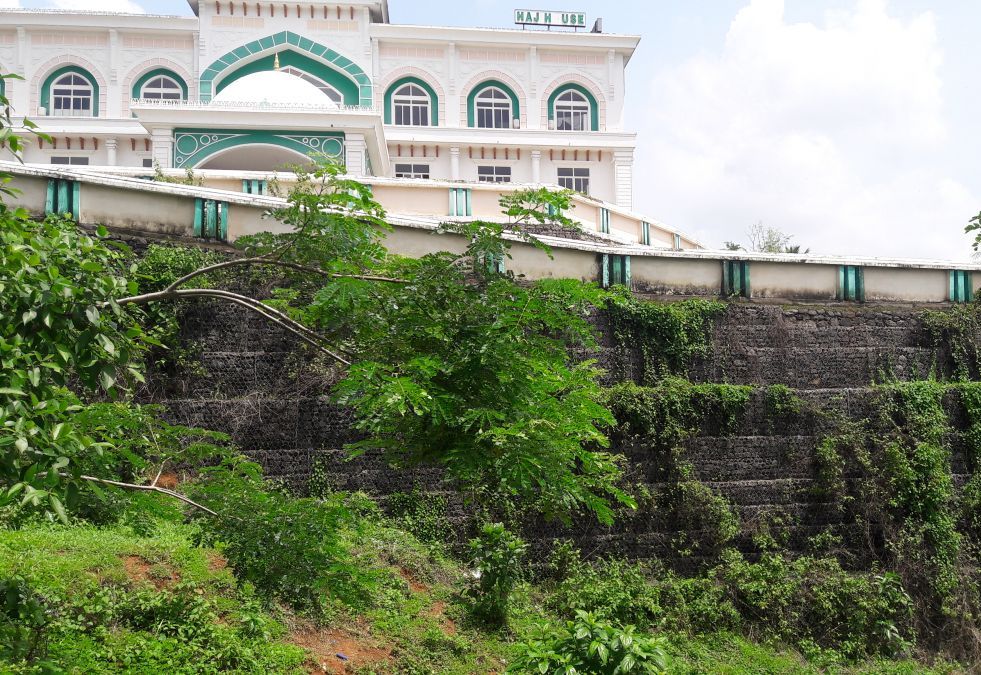

Photo 6 : Completed Structure
Problem
Hajj Committee constructed a Hajj house in Calicut, Kerala. In the vicinity of the building, there was high level difference between finished levels and existing ground levels varying from 8m to 13m along with an exposed rock at the existing ground level. As a temporary arrangement, soil was dumped on which a road was proposed to be developed. The dumped soil had started to slide at various locations. Therefore, in order to protect the slope, a suitable retention measure was essential. The soil in the surroundings is lateritic in nature. In a place like Kerala where monsoons have heavy rains for continuous 3-4 months, there is every chance of reduction of strength (especially cohesion) for lateritic deposits. Lateritic soil has a complex characteristic of high shear strength in dry conditions which reduces drastically when in contact with water. Flexible structure with enough permeability to dissipate the excess pore water pressure that may develop in retained fill would be an ideal solution
Solution
Considering the heights to be retained, expected loads, site constraints and client requirements, Maccaferri proposed a Paramesh System which is very quick & easy to construct. Paramesh system consists of Terramesh (gabion facia units with an integrated double twist mesh) as secondary reinforcement and ParaLink (geogrid) as a reinforcing element. MacTex N (Non-woven geotextiles) were used behind the gabion facia units in order to act as a separator and filter, which allowed free movement of water and prevented backfill soil from entering in the voids between stone filling with Terramesh facia. With Maccaferri’s solution, client had to spend only half the costs when compared to a conventional alternative like a RCC wall. Simple drainage arrangements were provided on top of the slope and within the structure to cater to anticipated heavy pore water pressure.
