Longitudinal Protection
2021
JODA - ODISHA - India
Tata Steel Rural Development Society (CSR Division)
EROSION CONTROL WORKS ON SONA RIVER
EROSION CONTROL WORKS ON SONA RIVER_0
EROSION CONTROL WORKS ON SONA RIVER_1
EROSION CONTROL WORKS ON SONA RIVER_2
EROSION CONTROL WORKS ON SONA RIVER_3
EROSION CONTROL WORKS ON SONA RIVER_4
Problem

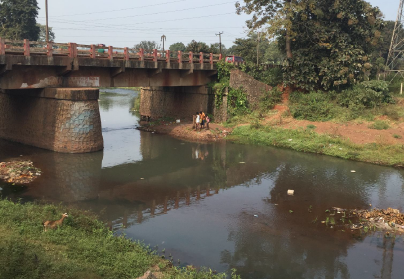

The river Sona in Joda in Orissa was prone to seasonal flooding, inundating surrounding areas. The banks of the river were affected by large amounts of erosion due to the flow of the river. Also, a river bridge over the river had its piers and abutments exposed due to the continuous erosion. The client wanted to control the erosion of the banks and protect the bridge through an innovative, technical and economical solution.
Solution

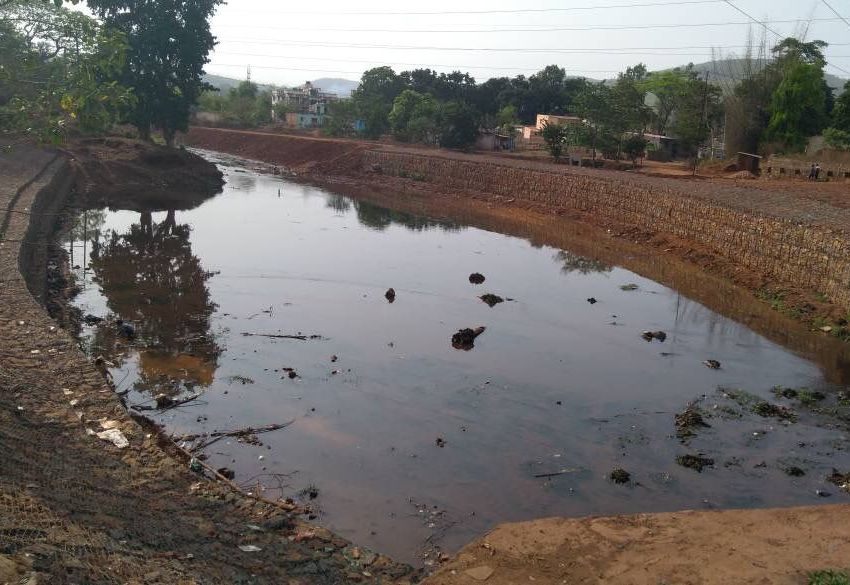

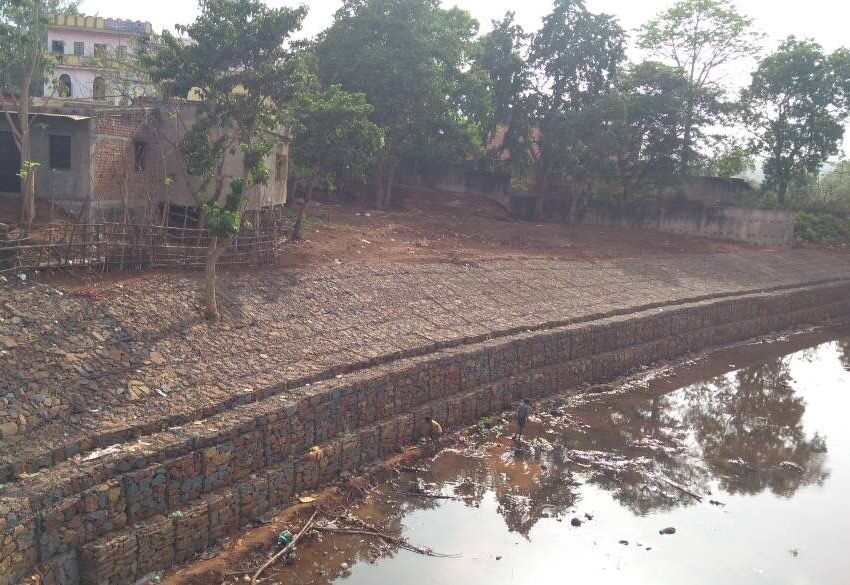

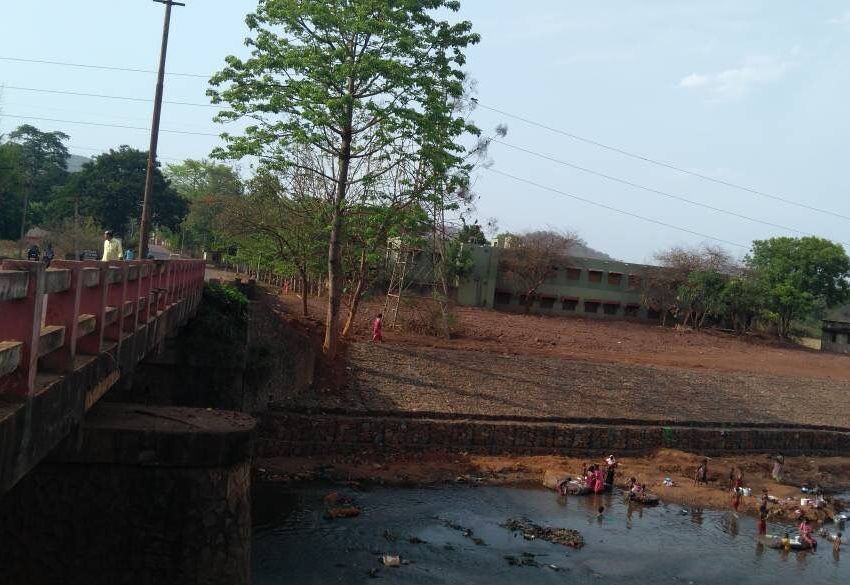

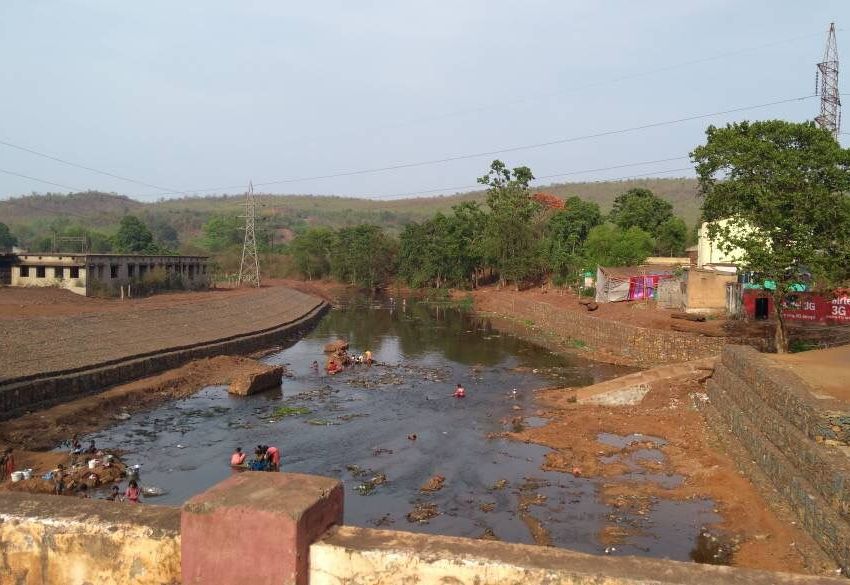

A gabion wall was constructed to protect further erosion of the pier of the existing bridge on the Sona river. Slope revetment protection was done using reno mattresses which prevented further scouring and erosion. A geotextile layer was placed behind the gabion toe wall and beneath the revetment for separation and filtration purposes. It was also considered that in case any type of vortex is formed in the river bed near the pier portion, then it is to be filled with river bed material and compacted accordingly before placing reno-mattress at top for preventing further scouring. Advantages of gabions: 1. Cost Effectiveness. 2. Simplicity in construction. 3. Flexibility. 4. Durability. 5. Drainage and permeability. 6. Environmental compatibility.
Used Products
Gabions
Maccaferri Gabion is a Double-Twisted “DT” wire mesh container of variable sizes uniformly partitioned into internal cells, interconnected with othView
