Weirs, Culverts and Transverse Structures
2020
KURAL-SHANPUR-SOKHADA-RAGHU - GUJARAT - India
Roads & Buildings Dept (Panchayat), Gujarat
CULVERT PROTECTION WITH GABION AT KURAL-SHANPUR-SOKHADA RAGHU ROAD

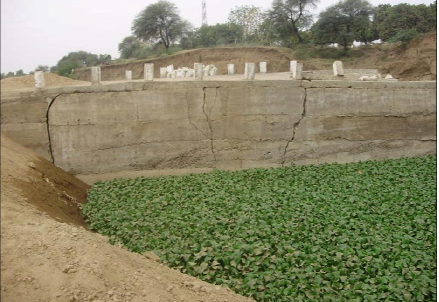

Photo 2: Site Before Construction- RCC Structure failure

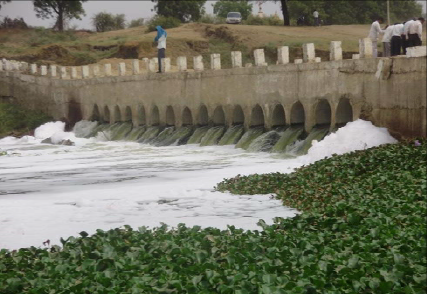

Photo 3: Existing Pipe Culvert

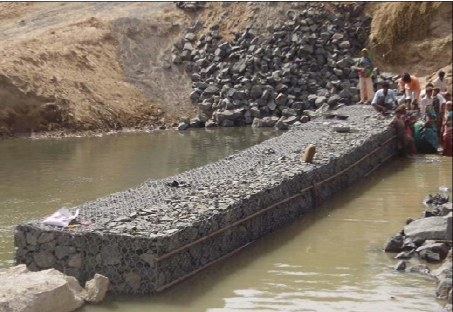

Photo 4: Gabion layers placed in position

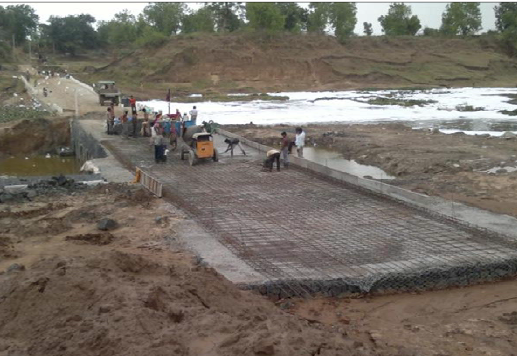

Photo 5: Construction of approach road

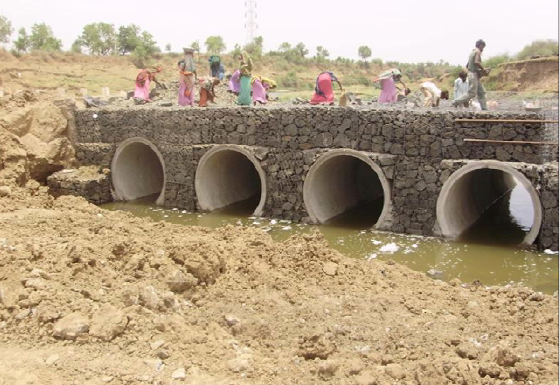

Photo 6: Construction of gabion wall
Problem
Dhadhar river flows in Gujarat State. It originates from the Pavagadh Hills of Gujarat State and flows through Vadodara and Bharuch districts. Kural-Shanpur-Sokhada-Raghu road is an approach between two villages in Gujarat. There is an existing pipe culvert over river Dhadhar on the approach road. The road located beyond the pipe culvert was constructed over fills which was retained with RCC structure. Due to frequent floods, the RCC structure was damaged and the approach road beyond the pipe culvert was washed away, affecting the road link between two villages. The villagers had to suffer throughout the year by using long route for travel. Road and Buildings Department requested Maccaferri for a suitable solution.
Solution
The embankment being located in high flood zone, an inherently permeable and free draining structure would have been technically suitable. Maccaferri suggested flexible gabion retaining walls. Considering the heavy flood conditions and extensive discharge through culvert, few more pipes of higher dia were provided in addition to the existing ones. Flexible structures of approximately 6m height were designed and constructed. Major highlights of the solution and the execution are: • Flexible nature of the solution accommodates differential settlement of foundation to a considerable extent. Further the flexibility and modular structure permitted the construction and diversion of culverts through the retaining walls. • Permeability ensures dissipation of pore water pressure. • Simplicity in construction ensured timely execution in difficult conditions like presence of ground water table, poor ground conditions etc. • Environment friendly solutions.
Used Products
Gabions
Maccaferri Gabion is a Double-Twisted “DT” wire mesh container of variable sizes uniformly partitioned into internal cells, interconnected with othView
