Sub-grade Improvement
2020
BHAVNAGAR - GUJARAT - India
Road & Buildings Department, Bhavnagar
BHAVNAGAR PAVEMENT STABILIZATION
Photo 1: Site conditions of proposed road

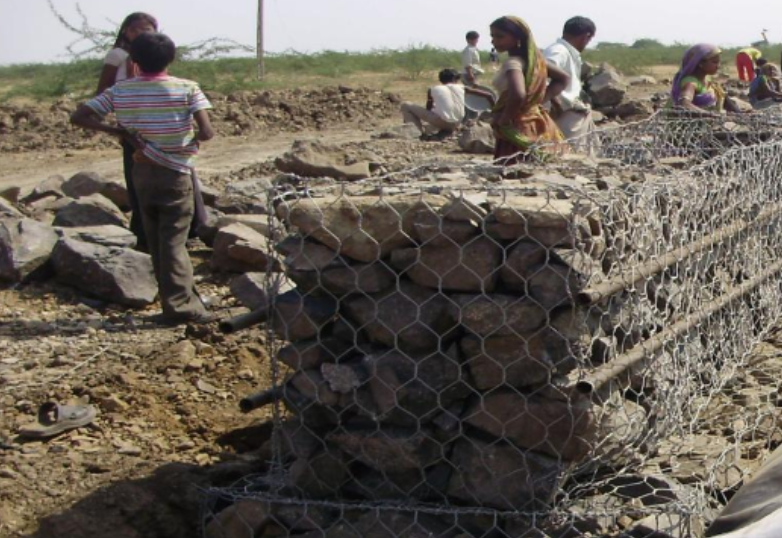

Photo 2: Gabion wall embankment edges

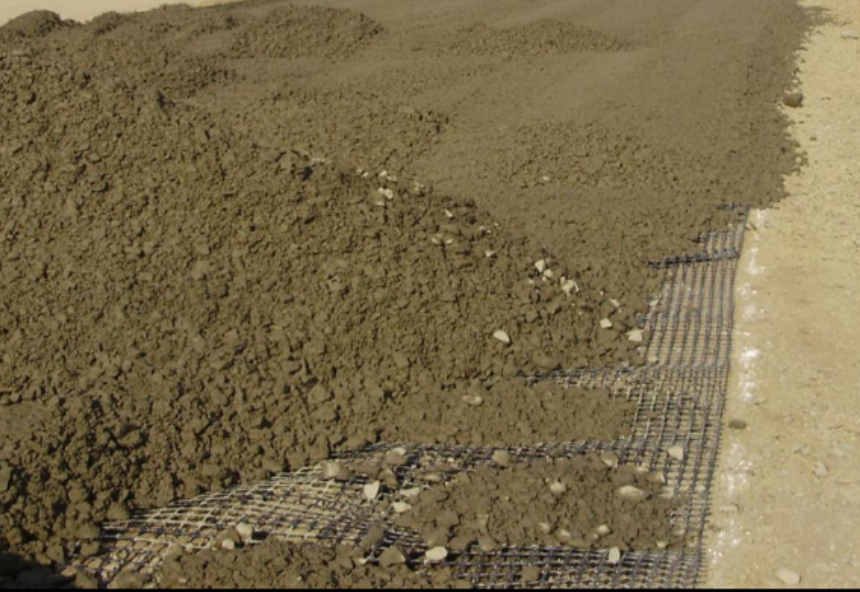

Photo 3: Laying of GSB over ParaLink®

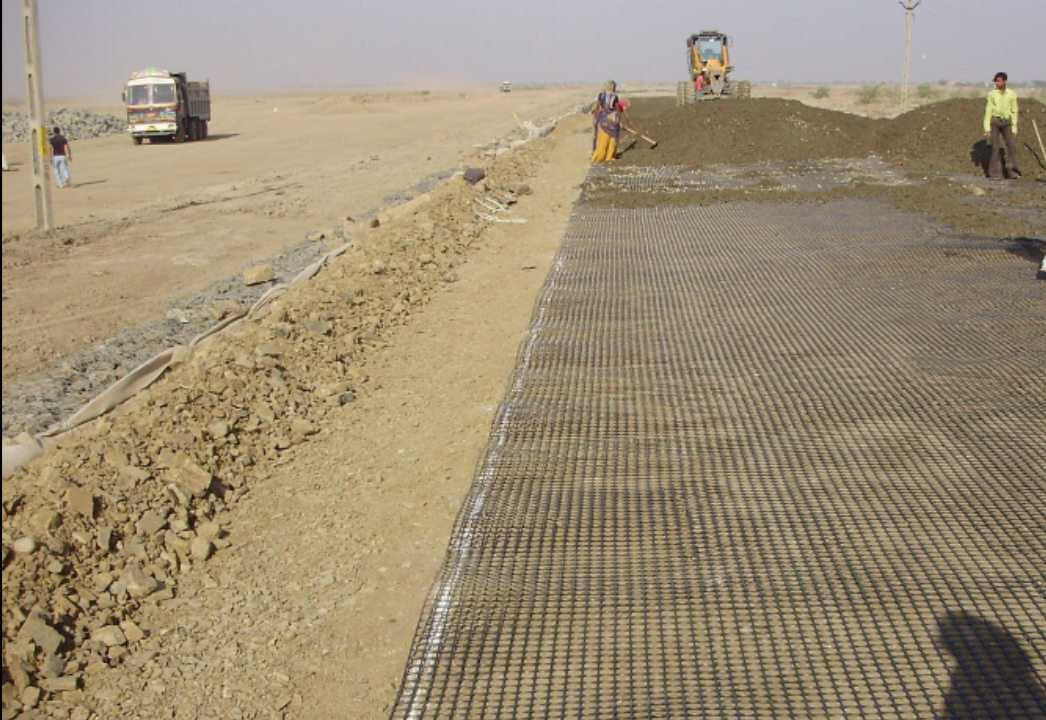

Photo 4: Laying of MacGrid® EG

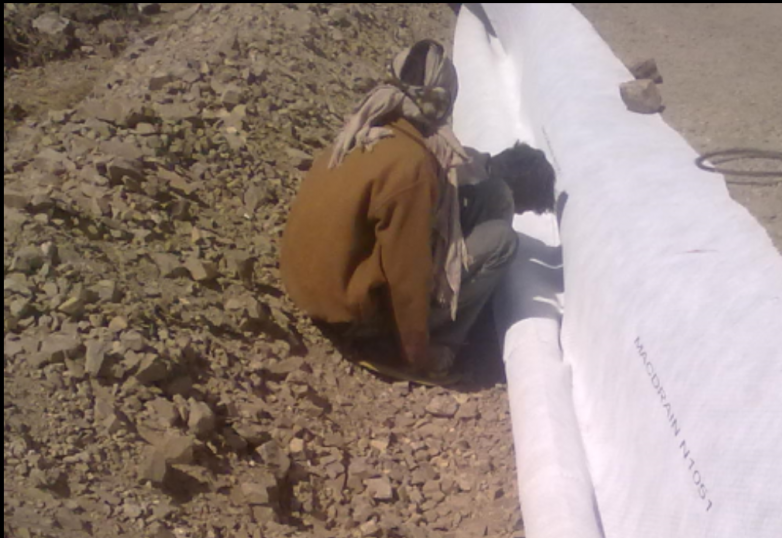

Photo 5: Installation of MacDrain® for drainage

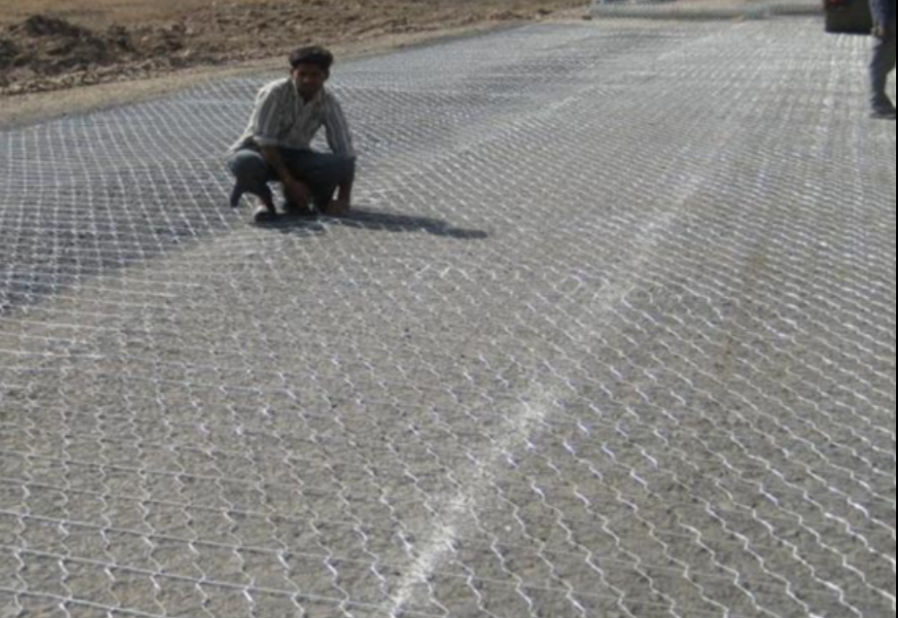

Photo 6: Laying of Road Mesh®
Problem
Bhavnagar is a city in the state of Gujarat situated 198 km away from the state capital Gandhinagar. This proposed Creek Kalatalav Sanesh road is the approach road to Bhavnagar District and for the nearby Salt Industries as well. The proposed road is formed between the creeks, where the ground water table is high and flood level is also high during the monsoons. Also, sub grade strength was found to be of CBR less than 2 percent with poor soil properties. The road used to demand high maintenance and repairs cost.
Solution
R & B department referred the problem to Maccaferri for the improvement of 14 km length proposed road. Ease and speed of construction was a key element in the design selection process. Considering the site conditions and poor soil properties, Maccaferri suggested a composite that will offer the design strength for road pavement construction necessary for this project. The solution included Double Twist wire mesh products such as gabion and Road Mesh® and geosynthetic products such as MacTex®, ParaLink®, MacGrid® and MacDrain®. Gabions were provided to act as an embankment protection on the sides of the proposed road. Nonwoven geotextile was provided to perform the separation and filtration. High strength geogrid- ParaLink® improved the ground conditions and uniform stress transfer to subsoil. Selection of products and solution was done meticulously to mitigate the present problems of coastal road.
Used Products
Gabions
Maccaferri Gabion is a Double-Twisted “DT” wire mesh container of variable sizes uniformly partitioned into internal cells, interconnected with othView
Nonwoven Geotextiles
Nonwoven geotextiles are flat textile structures consisting of synthetic fibres casually assembled by needle punching and/or thermal processes; theView
