Longitudinal Protection
2020
KOLKATA - WEST BENGAL - India
Cheviot Company Ltd
BANK PROTECTION WORKS IN RIVER GANGA AT BUDGE BUDGE

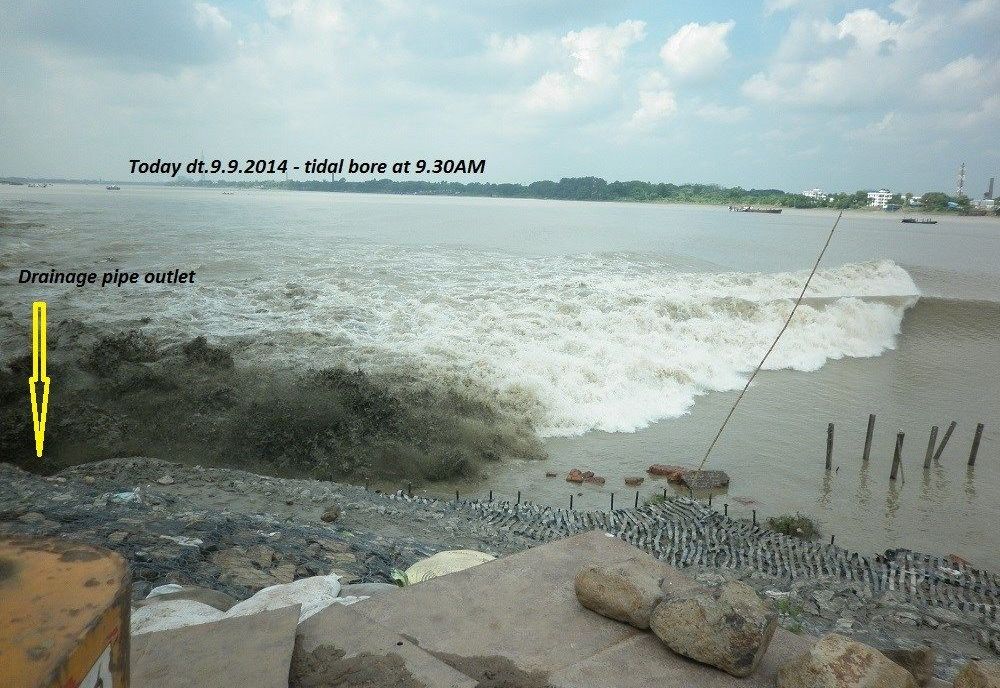

Photo 2: Occurrence of the tidal bore

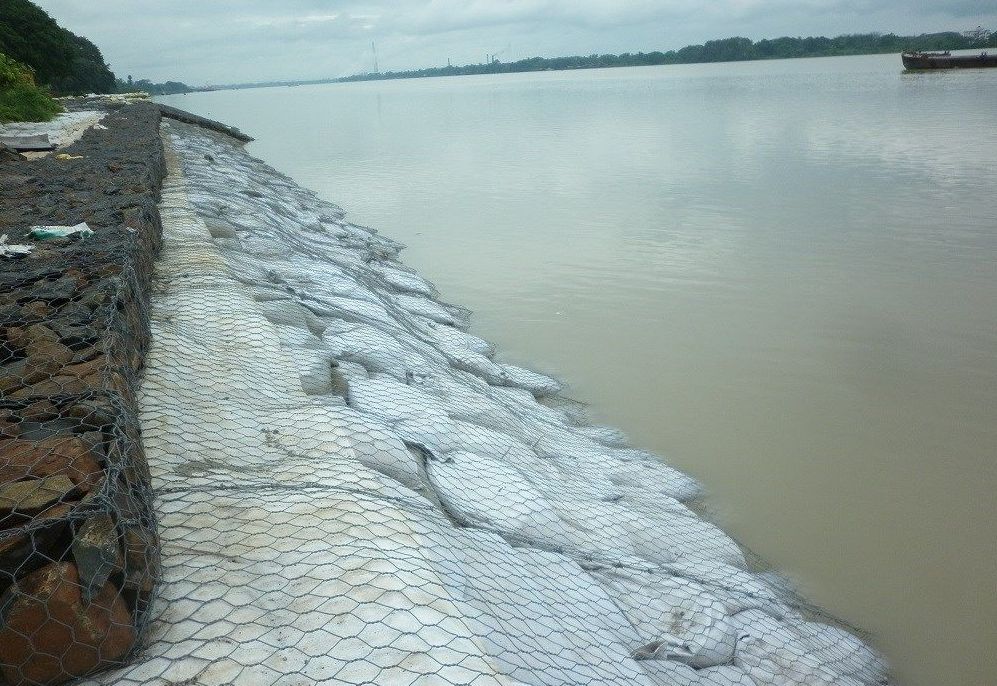

Photo 3: MacBags placed on the slope

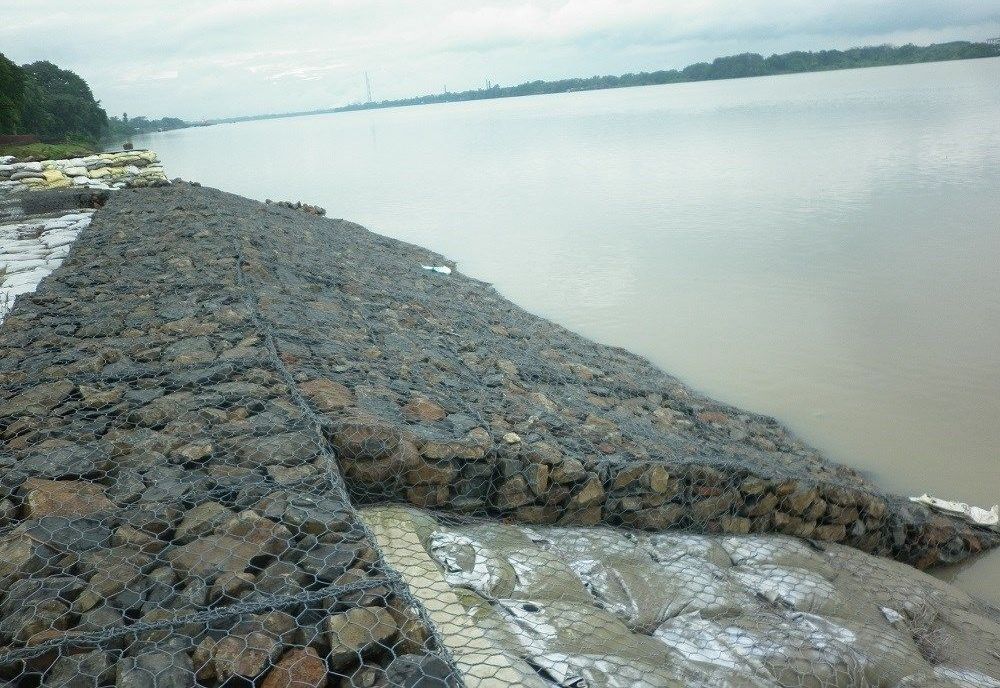

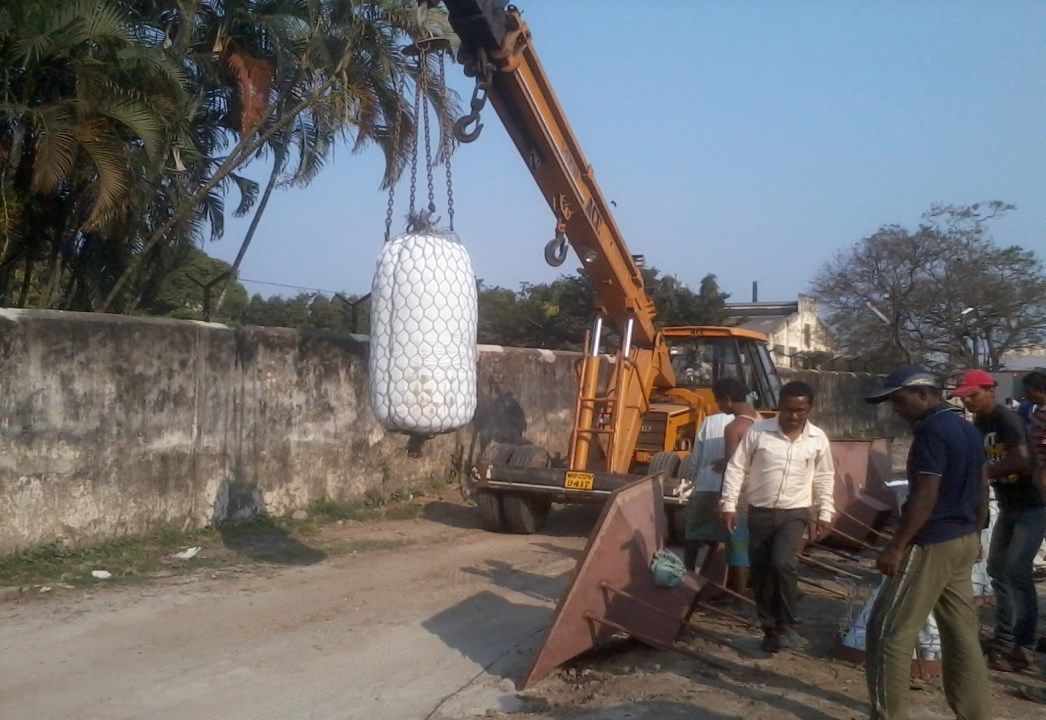

Photo 4: Sack gabions

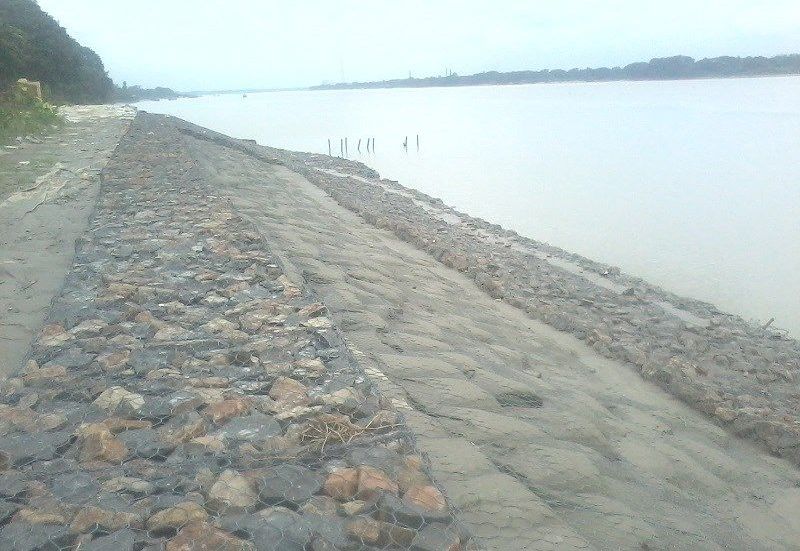

Photo 5: Placement of the gabion mattress
Photo 6: Arranged MacBags
Problem
The Cheviot Group of Companies, (Caledium Jute mill) is located along the River Hooghly, at Budge Budge, Kolkata. Tidal Bore is a phenomenon which occurs in the estuary zone near sea where the river mouth opening is funnelled into shallow and narrow river sections. Budge Budge is one such location where it occurs. The intense turbulence and the hydraulic jump, caused as result of the tidal bore had led to damage of the compound wall of the jute mill. To mitigate this problem, Cheviot Group proposed bank protection works. The anti erosion works were being implemented in a 100 m stretch along the Ganga river along the compound wall of jute mill that was identified as highly affected zone. Construction during the tidal bore is highly challenging and nearly impossible. Maximum height of the tidal bore observed was around 2 m and velocity was 7-10 m/s. Tidal Bore occurs once or twice in a month and extends for a period of 2-6 days, occurring once each day.
Solution
It was important to carryout the construction planning so that the system sustained all the worst loading conditions. The design thickness calculation of the system shall sustain the load imparted from tidal bore and this was to be done during the construction phase. Hence the focus was particularly on embankment protection system using geosystems. The height of the embankment to be protected was approx 6 m and slope 1V:2H. The thickness of system was analysed and considered as approx 3 m. Geotextile bag (MacBags) filled with sand are commonly adopted as solution for river hydraulics problems. These bags are preferably produced from woven polyester geotextile material. Here, sack gabions lined with geotextile material containment system were filled with dry sand and placed in position. These were used for preparation of foundation base for the structures. The anti-erosion works carried out during 2014 got submerged under water during the occurrence of the tidal bore. The erosion measures constructed with MacBags, Sack Gabions, DT Mesh Netting, Gabion Mat-tress survived the tidal bore and protected the banks. After the occurrence of the last tidal bore consider-able amount of silt deposit was noted.
