Erdox Snow

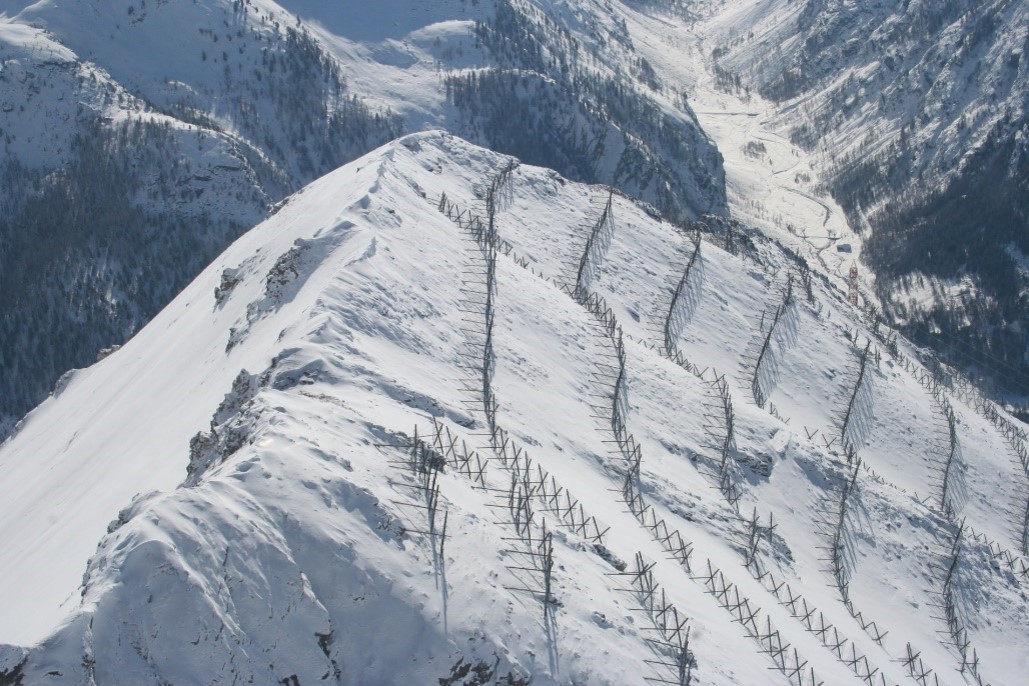

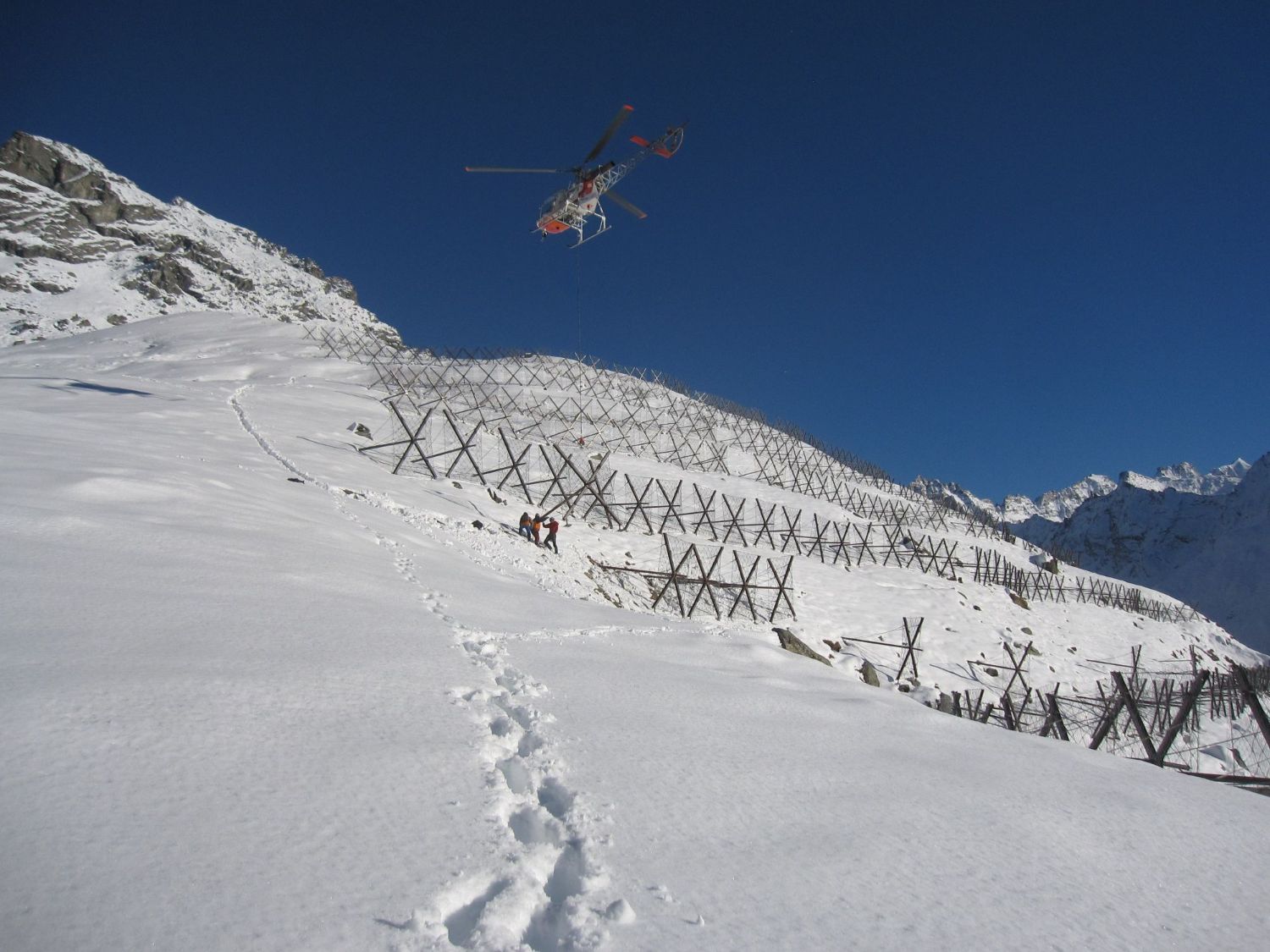

Maccaferri ErdoX Snow structures are protection measures that are placed in avalanche initiation zones to stabilise the snowpack. This limits the volumes of snow that can be mobilized, reducing the overall avalanche hazard risk.


The ErdoX Snow supporting structure is a modular unit with a single anchorage element;it features a cruciform facing panel structure made with steel beams which are hot dip zinc coated (EN ISO 1461:2009) and shaped to enable rapid jointing. One of the two beams is divided into two parts connected together in order to simplify the transportation of “folded units”.

Success Stories

AVALANCHE MITIGATION FOR MSP 11 NEAR ROHTANG TUNNEL

Based on the prevailing difficult site conditions and short construction window available, flexible snow barriers comprising of snow umbrella (Snow Er

APPROACH ROAD TO ROHTANG TUNNEL SOUTH PORTAL  – HIMACHAL PRADESH – India
AVALANCHE MITIGATION FOR MSP 11 NEAR ROHTANG TUNNEL
