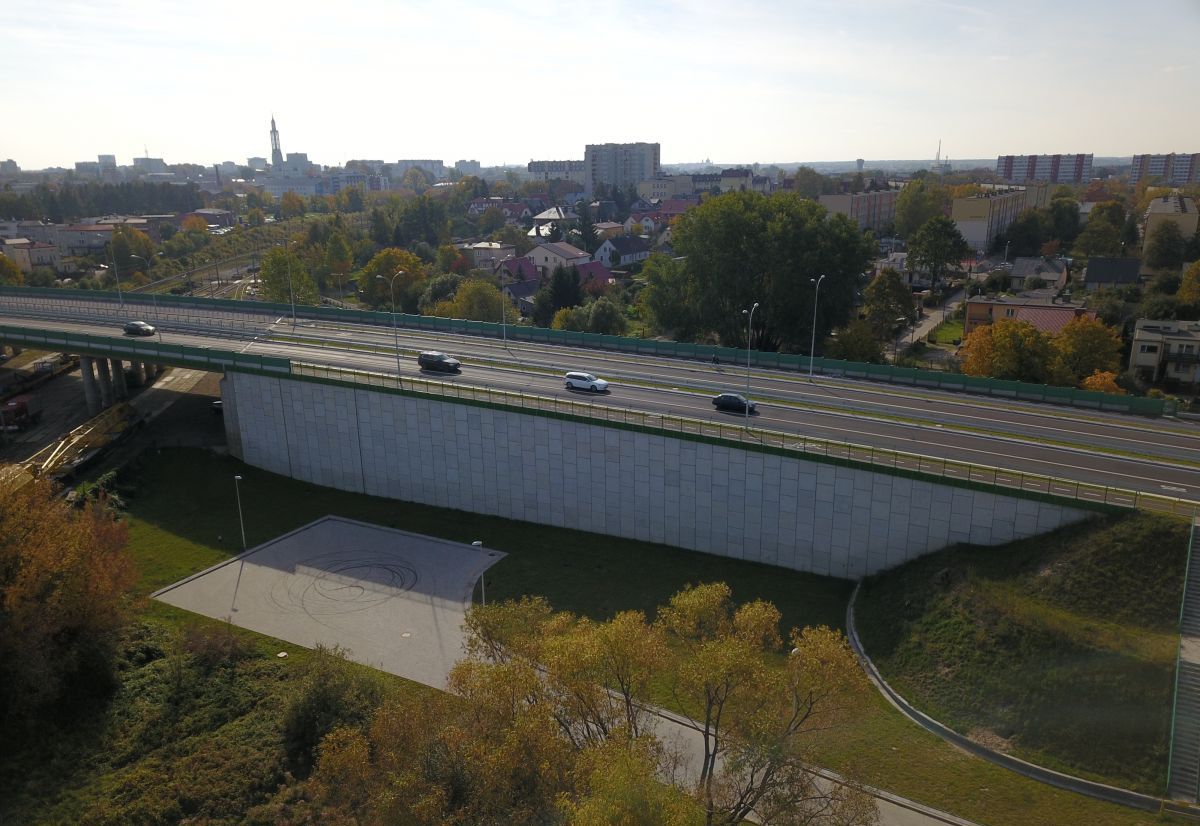

THE EXTENSION OF SITARSKA STREET OVER THE RAILWAY TRACKS

Home > Casos de éxito > THE EXTENSION OF SITARSKA STREET OVER THE RAILWAY TRACKS

Vertical Walls with Concrete Facing Panels

2017-2018

BIALYSTOK - PODLACHIA - Poland

Miasto Bialystok

Strabag

THE EXTENSION OF SITARSKA STREET OVER THE RAILWAY TRACKS

Problem

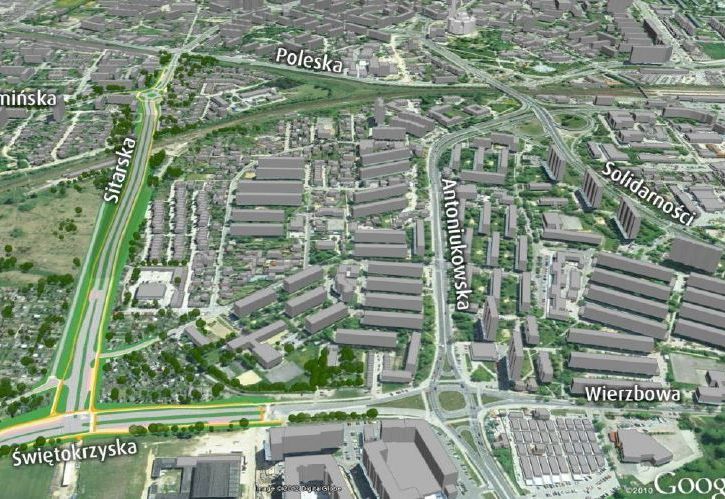

Extension of Sitarska street was a part of the project „ Improvement Białystok’s transport accessibility”. The scope of the project was to extend Sitarska Street over the railway tracks and connect two residential areas separated by railway tracks. The reconstruction of Sitarska Street was challenging for designers because of various factors. The planned job site was located in an urban area. According to the plans, the embankments with vertical walls has to be done in limited space. The limited space required very careful planning of construction technology. The client set a very short time to finish the realization of all works related to the construction of the retaining wall. An additional difficulty was that all works must be done with the active railway line. There was no possibility of stopping rail traffic.

Solution

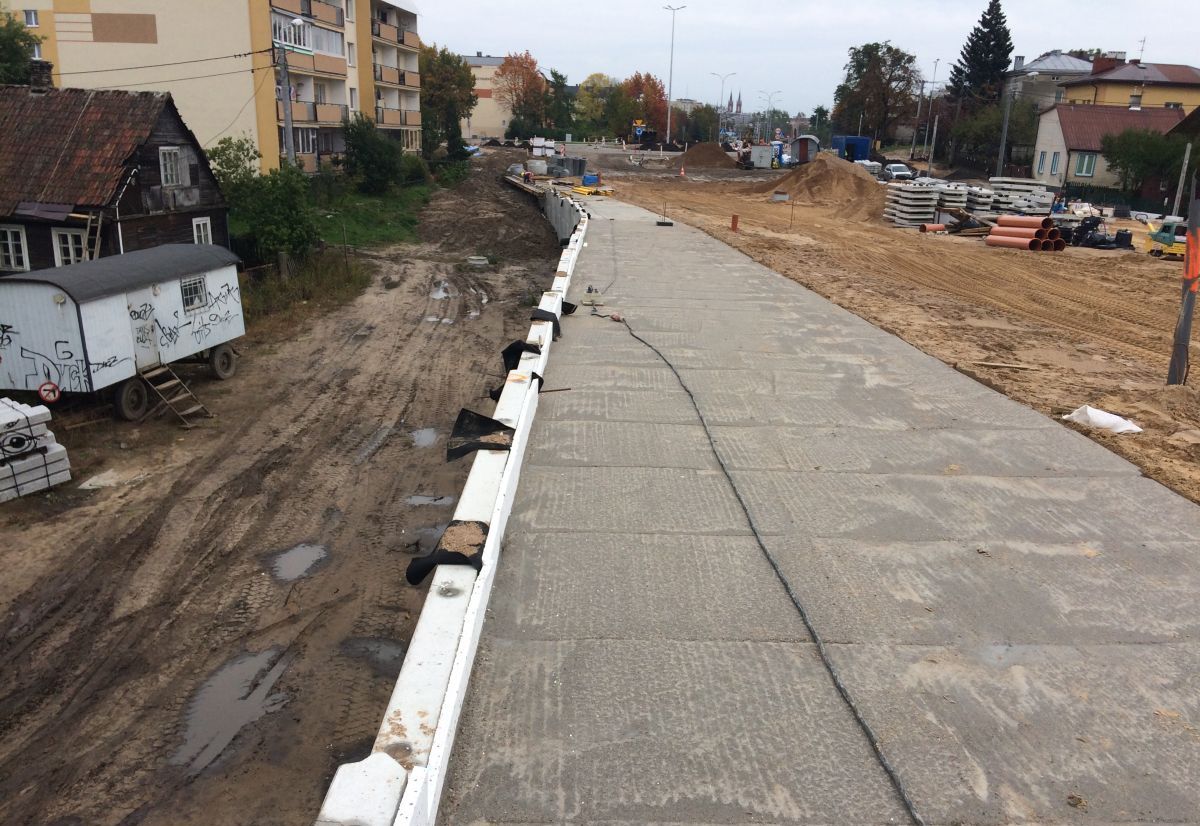

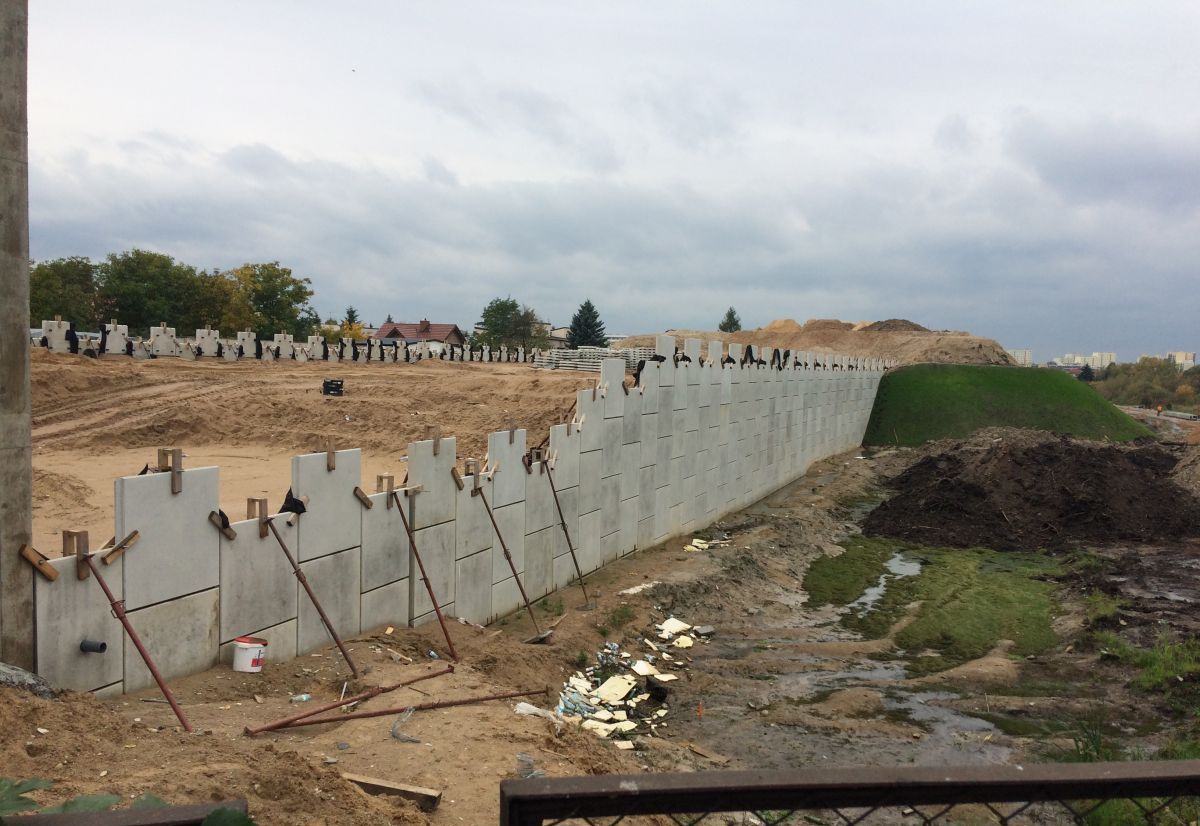

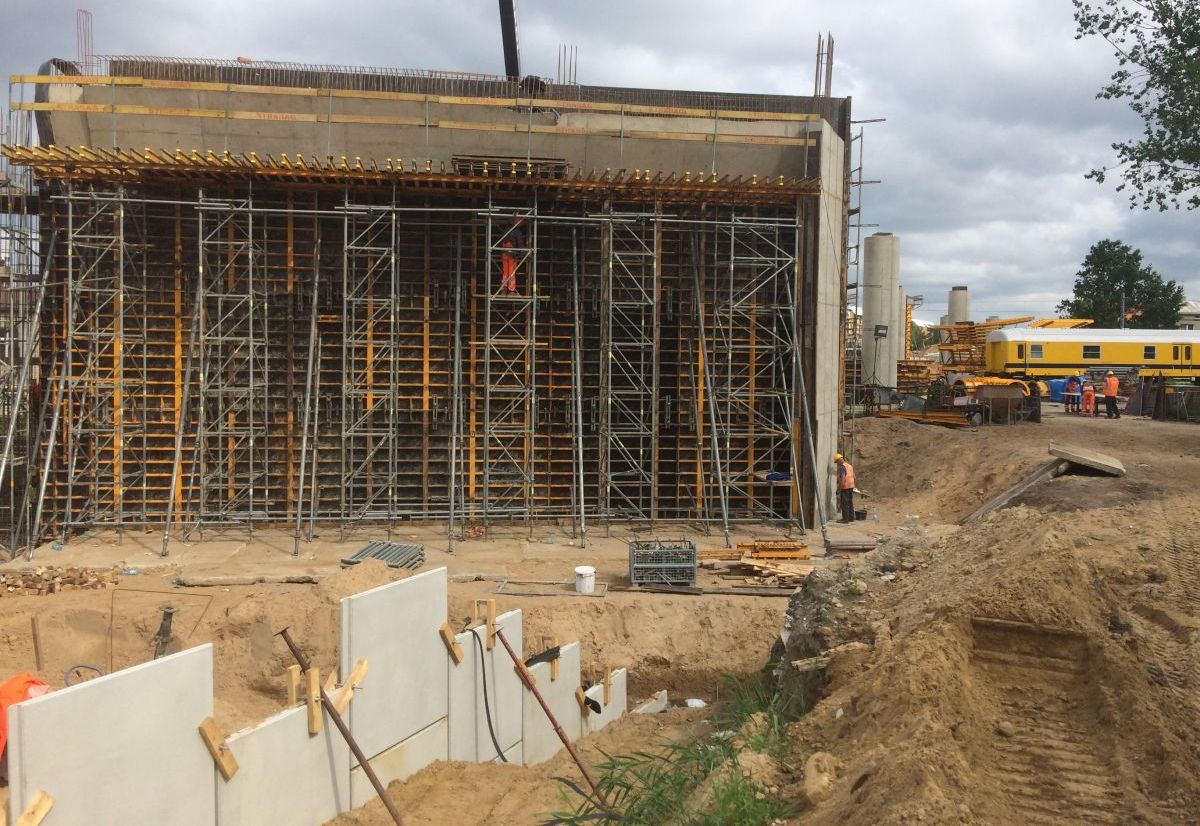

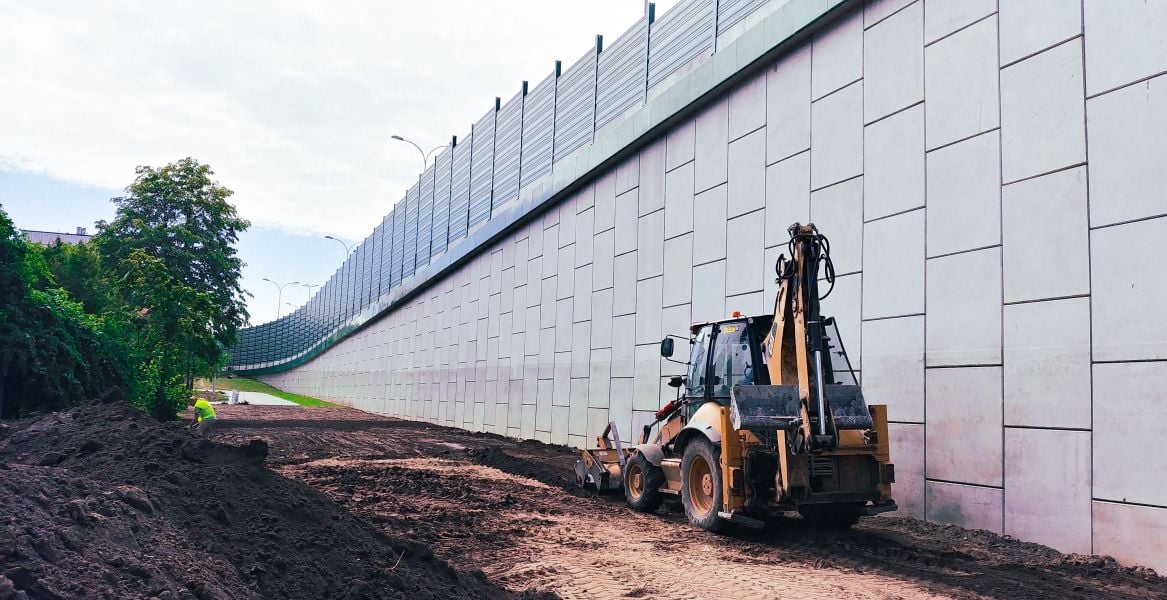

The MacRes system with concrete facing was proposed as a technology for retaining wall because of the space limitations and fast installation. The MacRes system is much quicker to install compared to the retaining walls with facing made of small-sized blocks or classical wrap-around embankment. The MacRes is a System to create vertical soil reinforcement structures with a concrete facing that is resistant to high loads. The ParaWeb polymer strip linear reinforcement is placed every 0.75 cm between compacted layers which are ensuring the stability of the construction. Maccaferri has proposed an innovative solution consisting of installing the retaining wall simultaneously with the concrete bridge abutment. The idea was to leave the expansion joint which allows correction of potential imperfection resulting from installation. This solution permits save time and space on the job site area. The supplied facing panels and geosynthetic reinforcement was stored on previously completed parts of the MacRes reinforced soil and then immediately installed. Maccaferri construction meets not only the technical requirements. The MacRes System has a high aesthetically pleasant look of facing panels. This pleasing eye construction affects the satisfaction of people who are passing through Sitarska Street.
