RANCAMAYA RETAINING WALL
Reno Mattresses installation as scour protection
RANCAMAYA RETAINING WALL_1

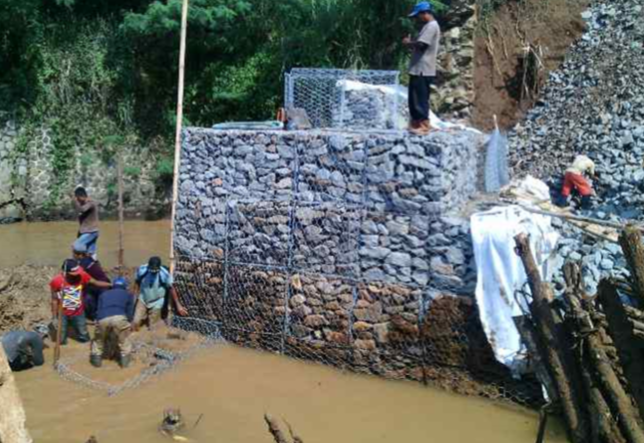

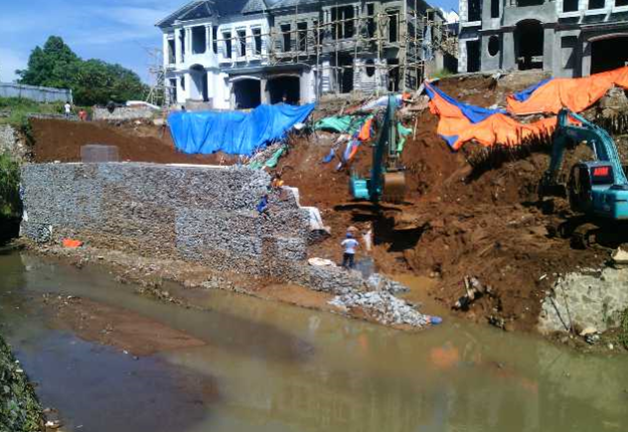

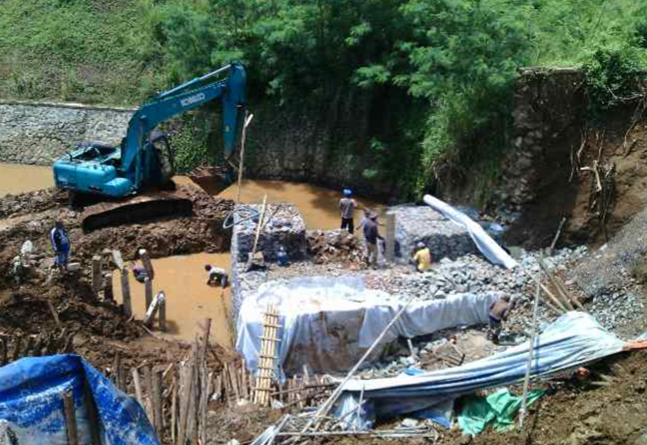

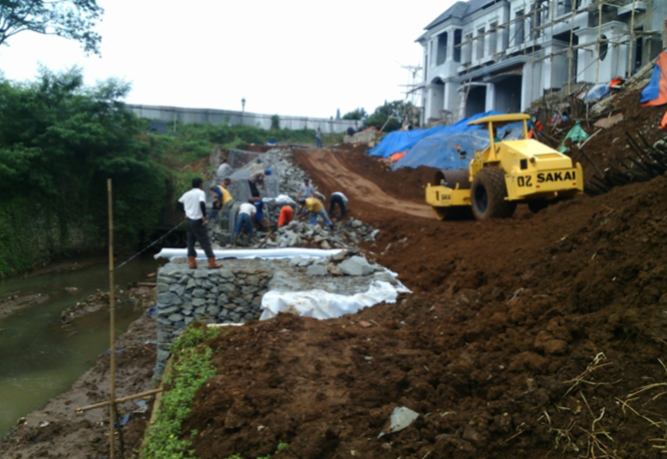

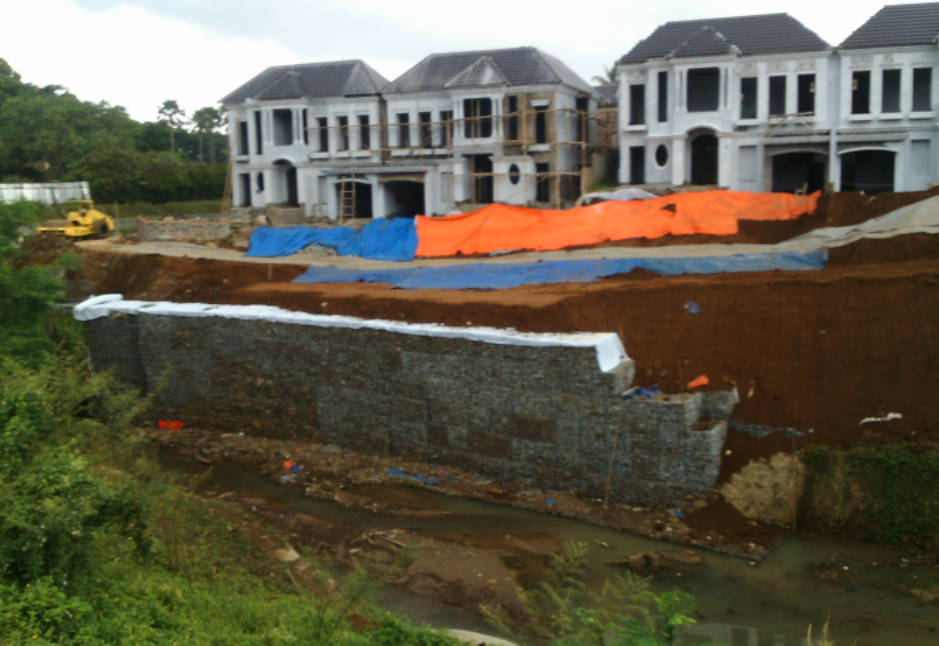

Gabions and Reno Mattresses during construction
RANCAMAYA RETAINING WALL_3
RANCAMAYA RETAINING WALL_4
Problem
Rancamaya Golf Estate is a residential area located in Bogor (West Java). Some houses, part of the residential complex, are located onto an embankment not far from an open drainage channel running at its toe. The water course is approximately 5 m wide. The embankment height is around 10 m making a steep slope inclined 60 degrees on the horizontal. Due to the combined action of the water flow causing the erosion of the embankment and the heavy rainfalls saturating the clayey embankment, a landslide suddenly occurred threatening the stability of the houses. Rapid countermeasures in order to guarantee the safety of the housing area are mandatory.
Solution
As landslide rehabilitation, Maccaferri provided a solution using a 7 m high Gabion made retaining wall. In addition, as scour protection of the Gabion wall, Reno Mattresses were placed at the toe of the gravity structure. All the stability checks were performed using the internally developed Maccaferri software (MacStars W 4.0). The retaining structure stability was checked under both static and seismic conditions. Furthermore, the stability during soil excavation and construction phases has been verified. Maccaferri provided the Client with jobsite supervision and the Contractor with installation assistance in order to ensure that the highest construction and installation standards were followed. The construction works of the retaining wall lasted around 2 months.
