LOW PERMEABILITY LINING AT KUNINGAN DAM

Home > Success stories > LOW PERMEABILITY LINING AT KUNINGAN DAM

Lining Systems - Base

2020

KUNINGAN - JAWA BARAT - Indonesia

PT. Wijaya Karya (Persero) Tbk.

LOW PERMEABILITY LINING AT KUNINGAN DAM

Problem

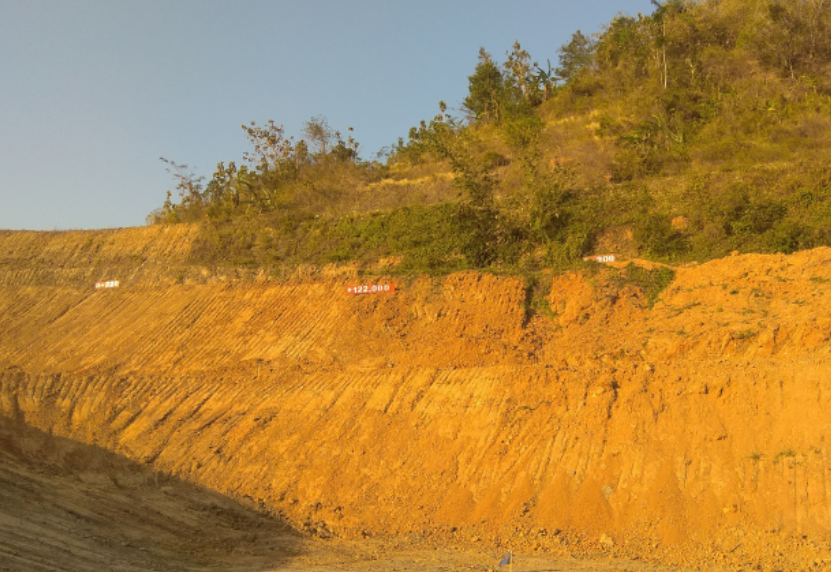

A section of the access road at Kuningan Dam Project (Kuningan – Jawa Barat) needed to be protected from water intrusion. The access road which is located at Sesar Area has location very close to the water dam. Because of the lack of low permeable soil on the site, a low permeability geosynthetic was proposed as an alternative solution. Geosynthetic Clay Liner called MacLine GCL W10 by Maccaferri was selected considering its easy installation method and endurance to be installed directly on the existing coarse-grained soil.

Solution

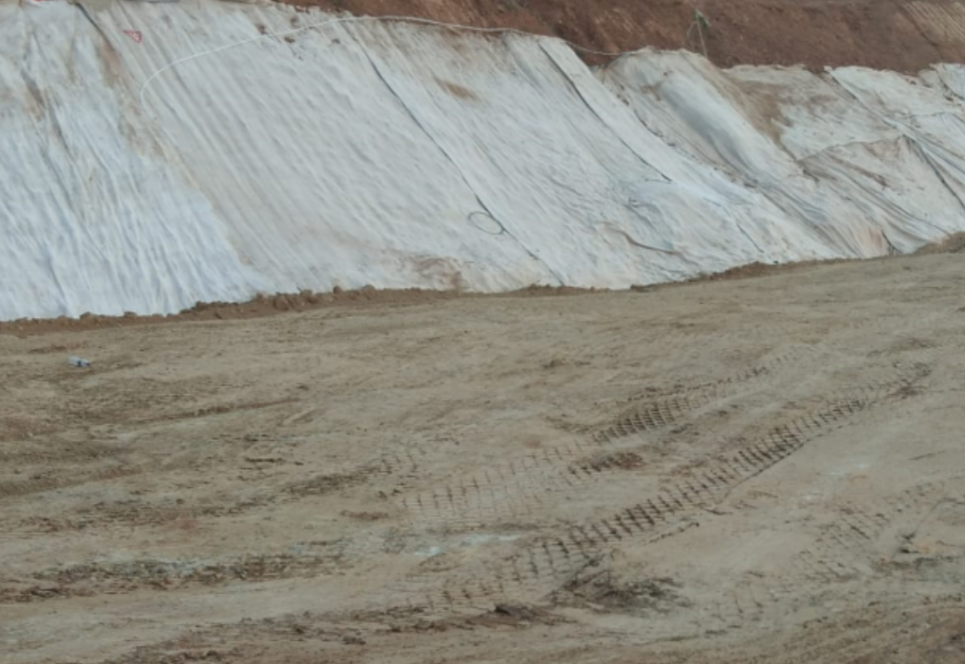

A 2,500 m2 area of MacLine GCL W10 has been installed on an existing slope at the side of the access road. The construction was then continued with an embankment construction to support the existing slope. MacLine GCL W10 consists of a layer of sodium bentonite encapsulated between non-woven geotextile and woven geotextile, needle punched together for maximum performances under a wide variety of site conditions. A low permeability lining system then created by MacLine GCL W10 until 1×10-11 m/sec under the pressure of 100 kPa with a nominal thickness of 5.5 mm. Available in rolls, MacLine GCL W10 has an easy installation procedure and it needs an only overlapping system for the connections without complex system compared to other material. Maccaferri Macline GCL W10 shall grant some advantages such as: Easy and Quick Installation ; Suitable for any kind of superficial contour thanks to its flexibility ; Self-recovery attribute from puncture ; Cost-effective.
