Reinforced Soil Walls and Slope Reinforcement
2022
MARIANHILL - KWA-ZULU NATAL - South Africa
TRANSNET GROUP CAPITAL
TRANSNET RME
GEOSURE CONSULTING
THORNWOOD RAILWAY STATION
THORNWOOD RAILWAY STATION_0
THORNWOOD RAILWAY STATION_1
THORNWOOD RAILWAY STATION_2
THORNWOOD RAILWAY STATION_3
THORNWOOD RAILWAY STATION_4
Problem

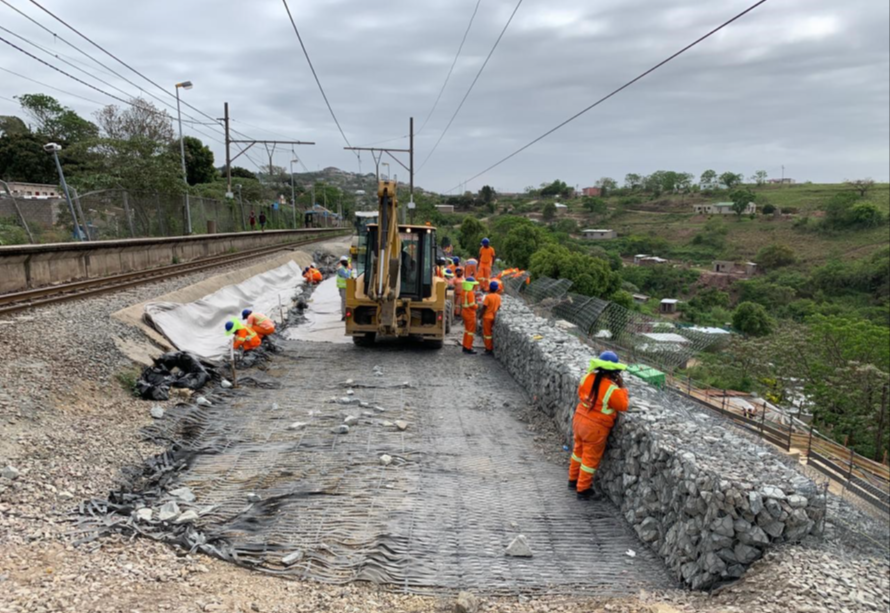

Transnet Railway passing through Thornwood Railway station experienced slope movement and failure in 2014. The railway became non-operational and a full reinstatement of the supporting formation was required. The reinstatement began with piles, a bearing wall and a wrap-around geotextile solution. During the construction phase of the rehabilitation solution, a portion of the existing embankment supporting rail Line 2 was undercut in order to relieve overburden pressures on the toe of the existing embankment.
Solution

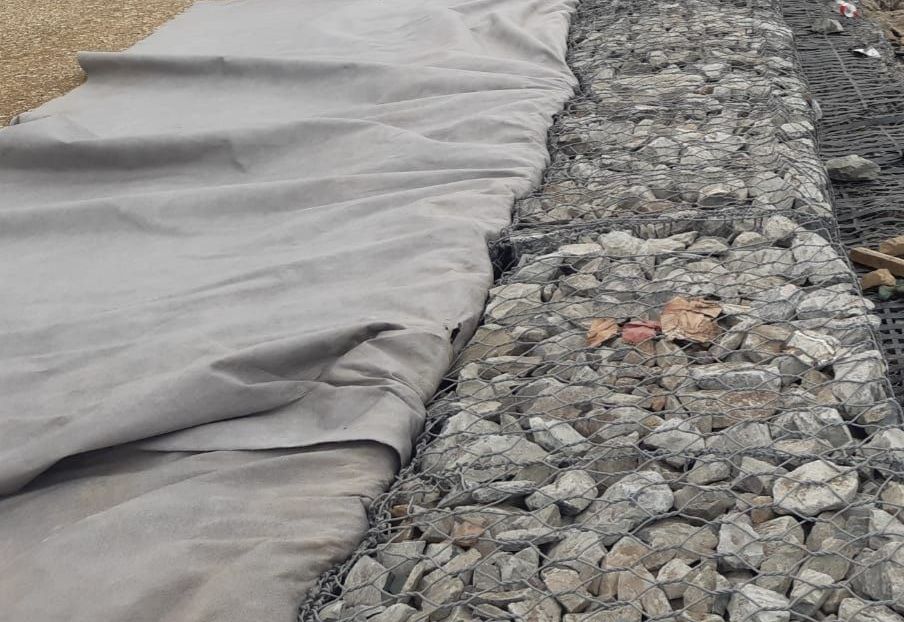

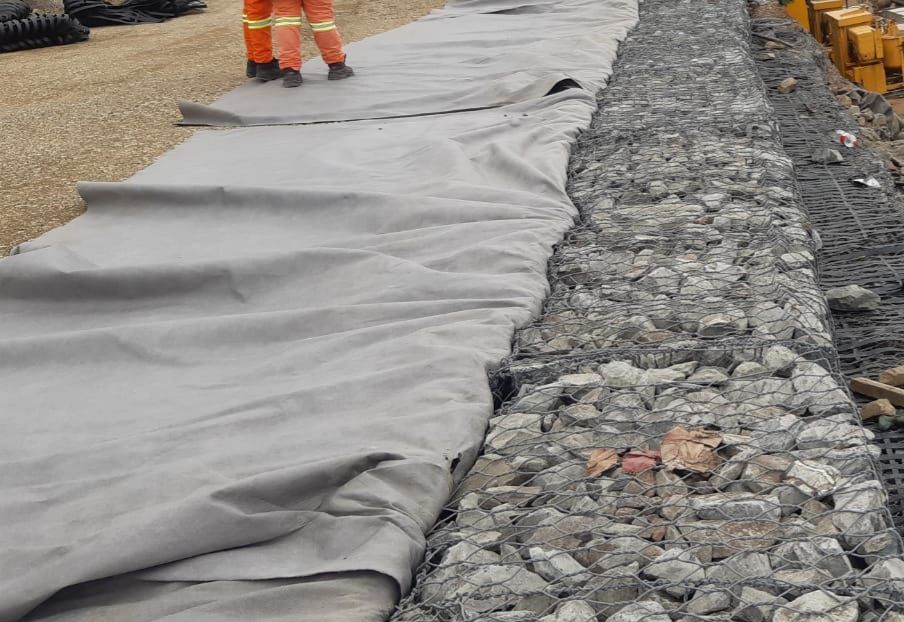

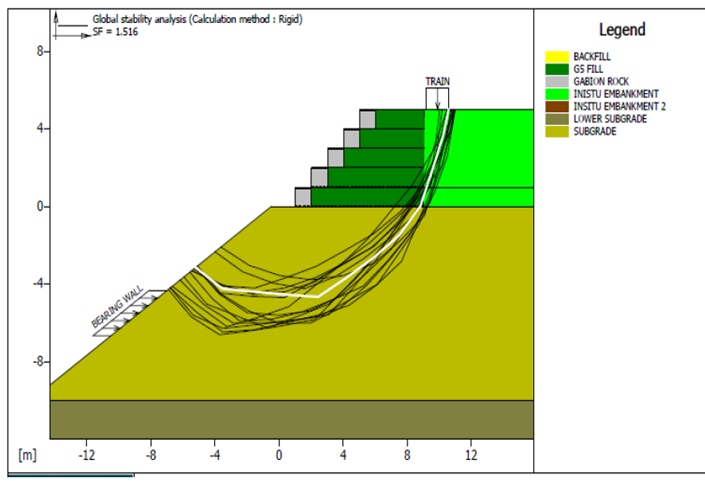

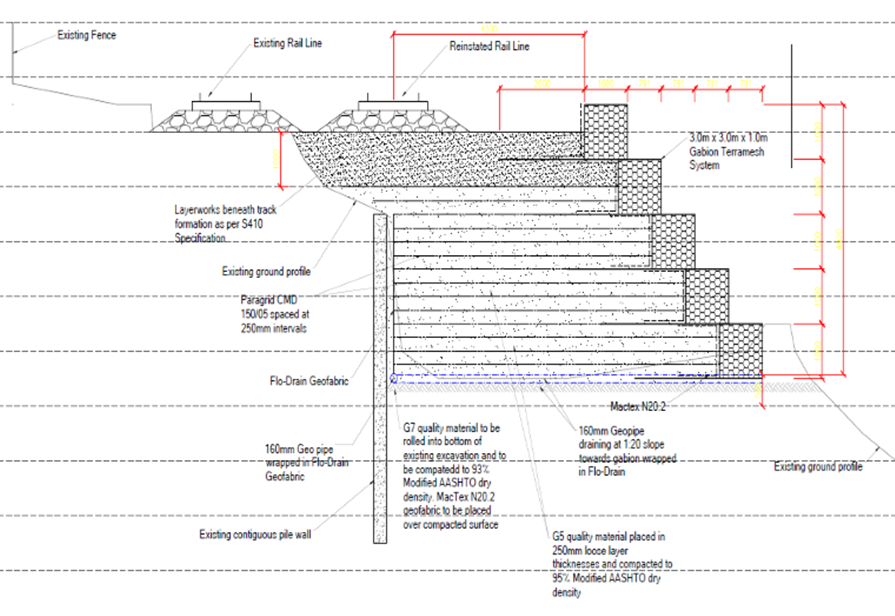

The most effective solution proposed and accepted was the use of a Mechanically Stabilised Earth Wall was used for the containment of the platform. The Terramesh System with Paragrid 150/05 tie-backs were modelled on Maccaferri Software, MACSTARS, to determine the minimum FOS against global instability of the MSE solution. Due to the immense loads experienced, the solution required Geogrids every 250mm to reinforced the G5 material specified as the structural fill. A Geotextile, MacTex H40.1 was used as a filtration material between the Terramesh System and the structural fill.
