TERRAMESH RETAINING WALL KORCA-ERSEKA-LOT2 PHASE1

Home > Histori suksesi > TERRAMESH RETAINING WALL KORCA-ERSEKA-LOT2 PHASE1

Reinforced Soil Walls and Slope Reinforcement

2022

KORCA - ALBANIA - Albania

ANK shpk

ANK shpk

A&E Engineering " Sh.p.k.

TERRAMESH RETAINING WALL KORCA-ERSEKA-LOT2 PHASE1

Problem

u003cpu003eThe Korca – Erseka Road project is located in the southeast ofu0026nbsp;Albania. The project construction started in March 2021 and finished the first part in January 2022. Currently, the road axis Korca-Erseka has a length of 45 kilometers, while with the completion of the new segment the distance is reduced to 35 kilometers. Its construction will promote the further development of tourism in the southeast of the country by bringing closer two areas with great potential, such as Korca and Erseka. With its completion, the distance between Korca and Erseka is reduced to 20 minutes. Being an unique design with back to back earthed filled structures, the contractor company ANK asked Maccaferri for our support for these project.u0026nbsp;After runing the profiles in Macstars 4.0 we found out that the geogrid reinforcement lengths weren’t satisfying the stability checks.u0026nbsp;cks.u003c/pu003e

Solution

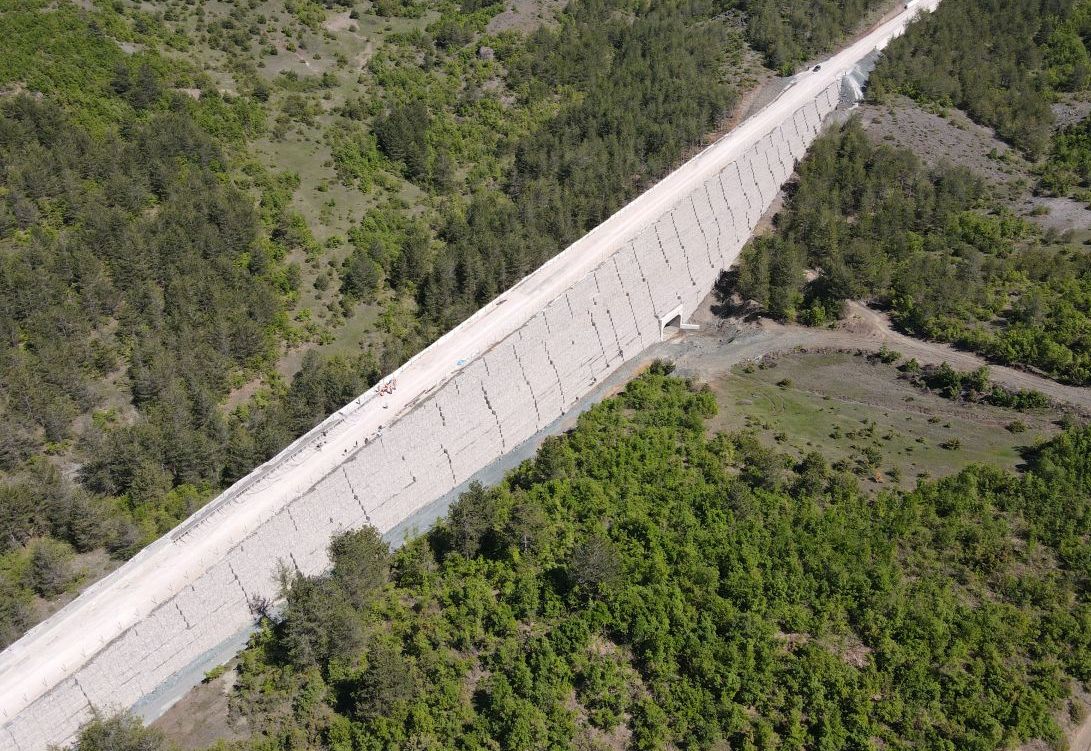

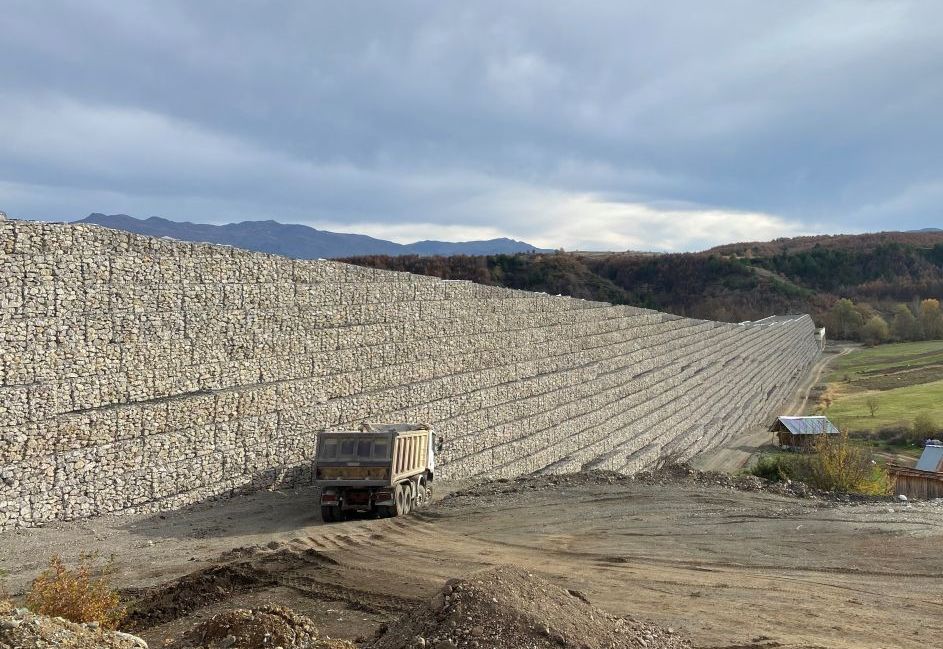

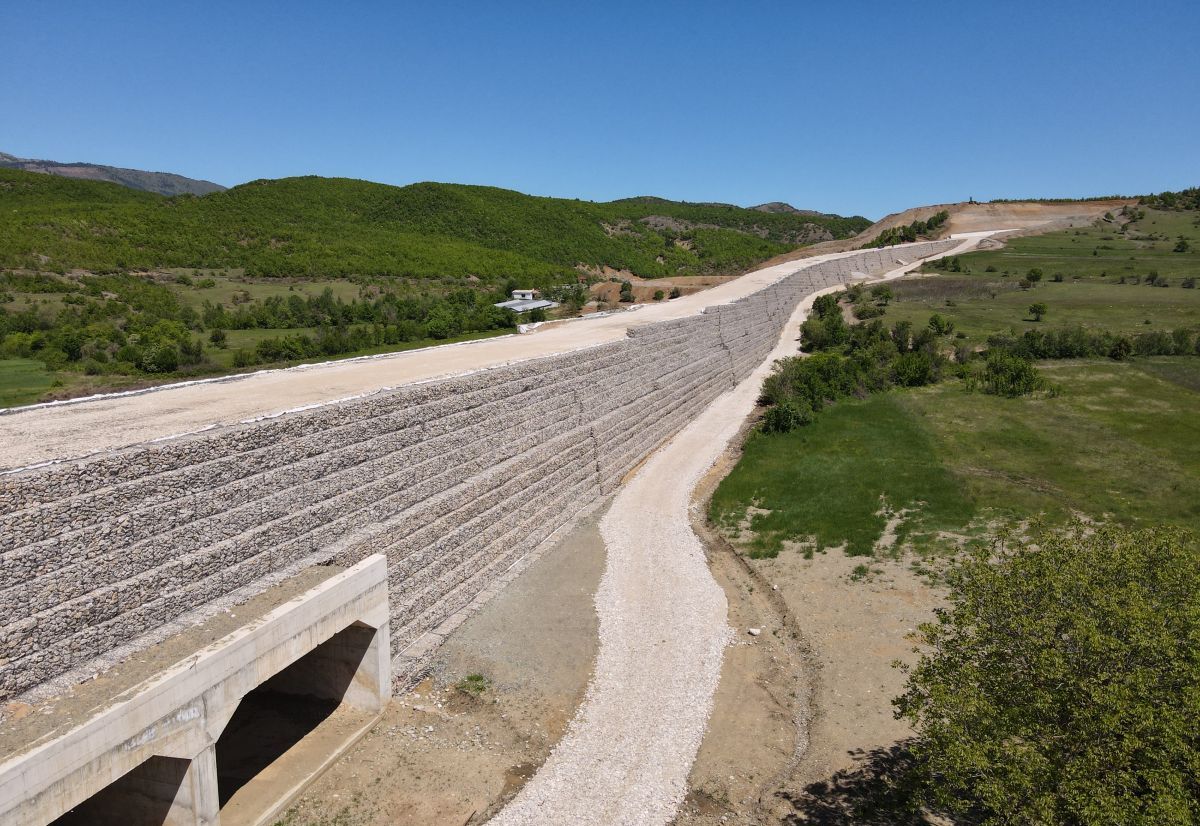

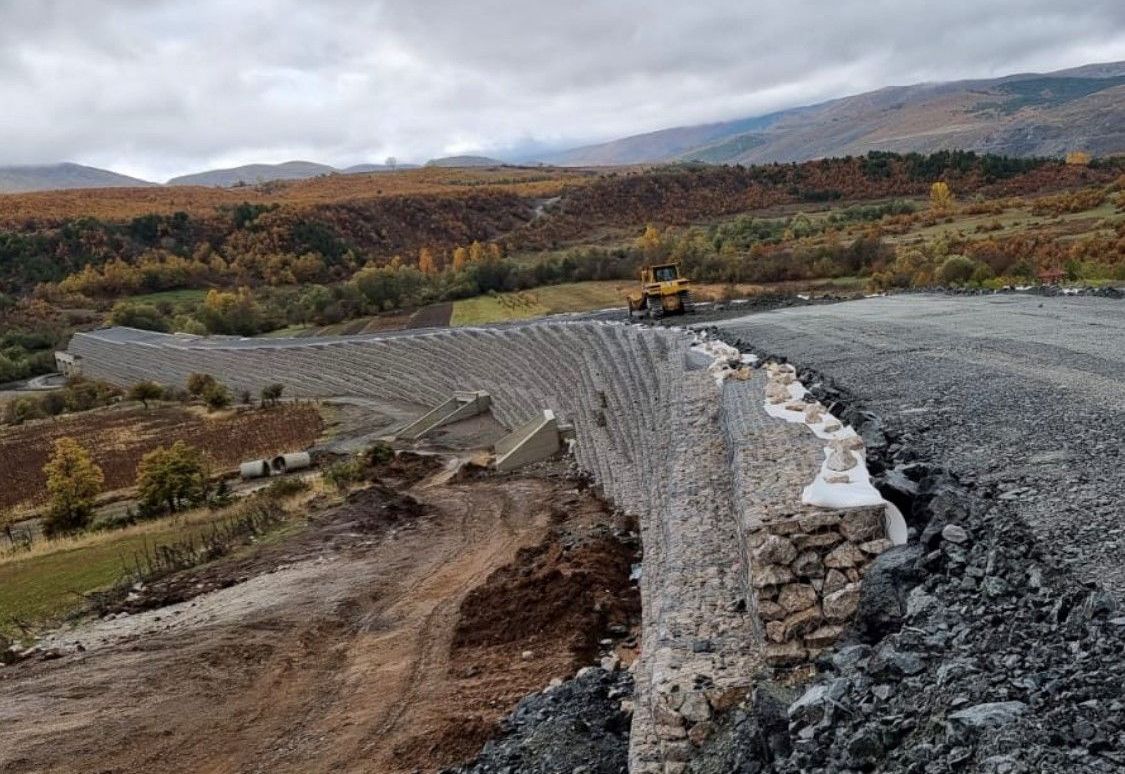

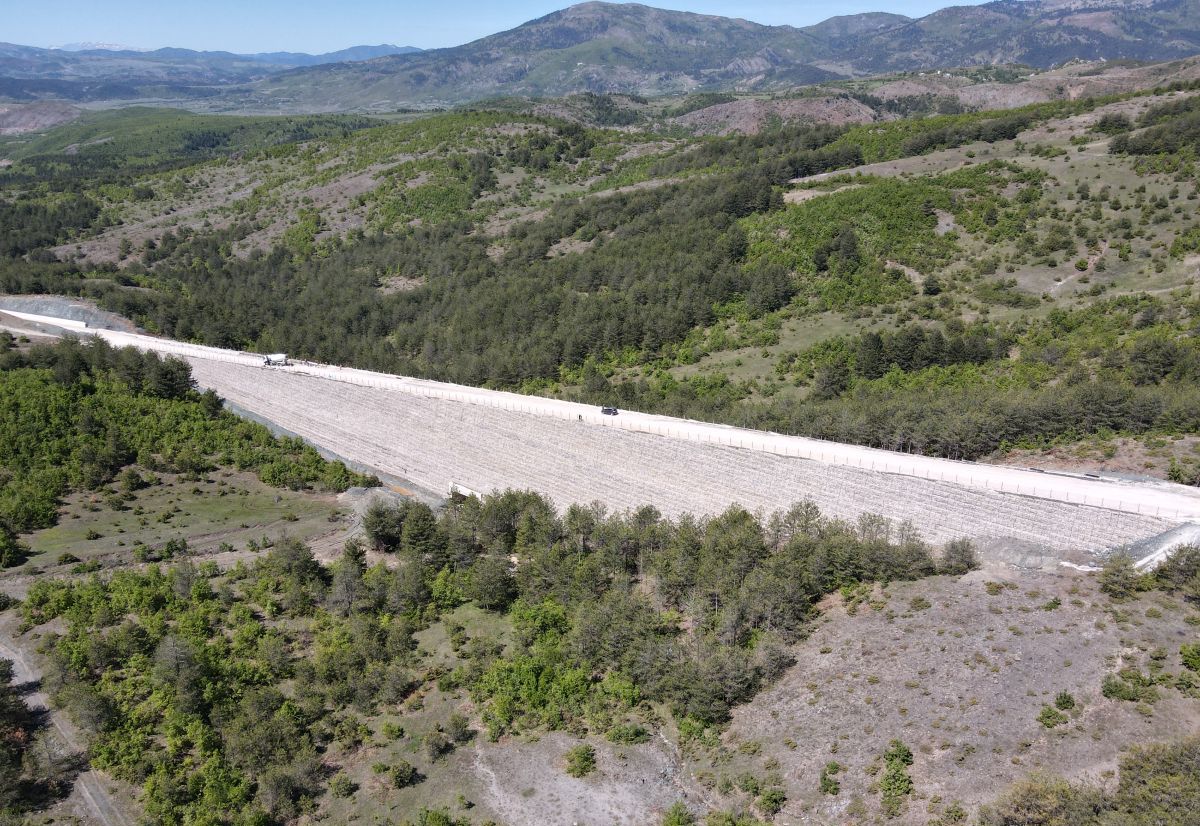

u003cpu003eFirstly we redesigned the solution using Terramesh units with dimensions 3x3x1x1m. To ensure stability, Terramesh System was reinforced withu0026nbsp;Paralink 300u0026nbsp;andu0026nbsp;Macgrid WG15,11,8u0026nbsp;according to the software Macstars2000 calculations. This way we gave them the most cost effective solution.u0026nbsp;The construction of the wall started in March 2021 and it was finished in January 2022.u0026nbsp;u0026nbsp;In total 4 Terramesh back to back walls were build around 31’500m2 of facade.u0026nbsp;Wall 1 L=325m ; Max height H=32mu0026nbsp;Wall 2 L=130m ; Max height H=20mu0026nbsp;Wall 3 L=50mu0026nbsp;u0026nbsp;; Max height H=12mu0026nbsp;Wall 4 L=525m ; Max height H=16mu0026nbsp;u003c/pu003e

Used Products

TerraMesh
TerraMesh
Familja Maccaferri Terramesh® përfshin opsione të ndryshme per fasaden për të ndërtuar struktura të Tokës së Stabilizuar Mekanikisht (MSE) dhe ShpatetShiko
