Simple Drapery

2021

SUNGAI LONG - SELANGOR - Malaysia

SIN HEAP LEE DEVELOPMENT SDN BHD

ROCKFALL PROTECTION AT GOODVIEW HEIGHTS TOWNSHIP, SG LONG, SEL

Problem

Goodview Heights Township is a prestige development by one of the well-known property developer Sin Heap Lee Development Sdn Bhd. However, there are several fractured and irregular rock slopes that might affect the construction in which it needs to be treated. Hazard to the development is imminent should the fractured rocks detach from the slope surface and fall. This prompted the client to take precautions immediately to protect the rock slope.

Solution

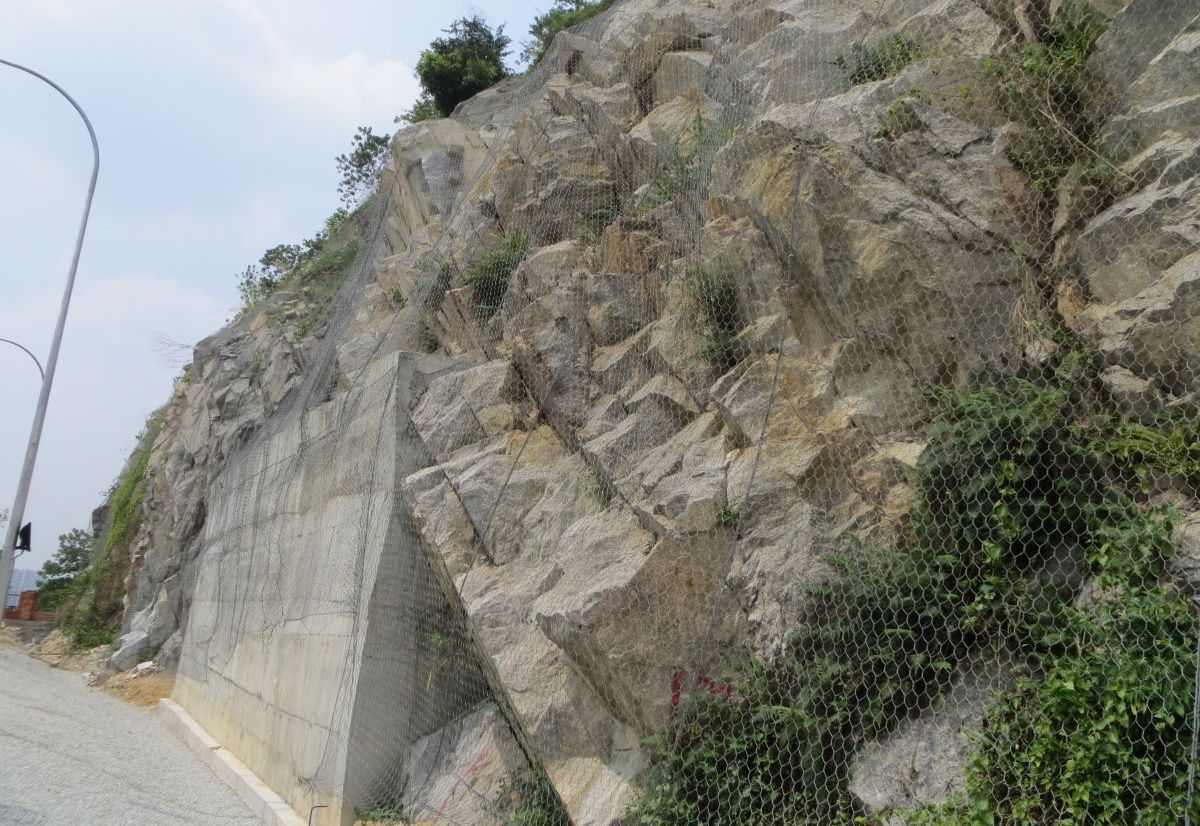

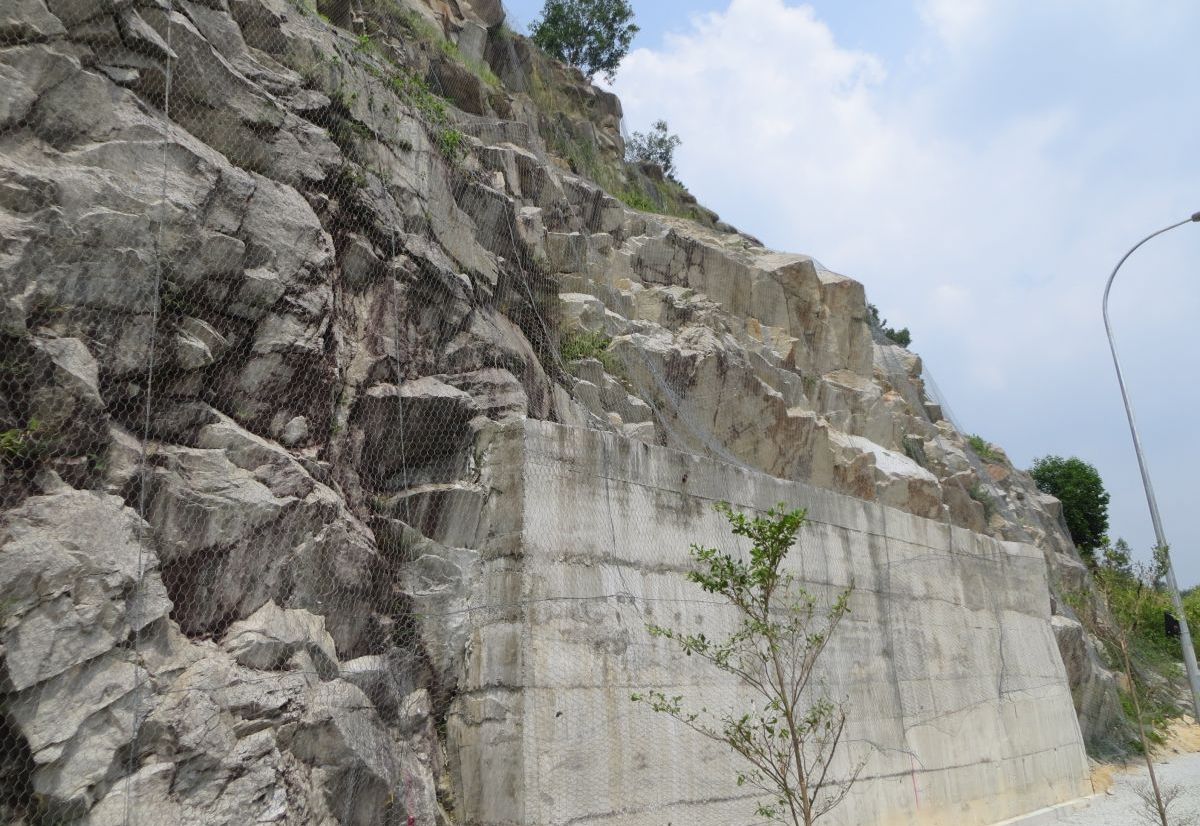

Maccaferri Galfan Steelgridā„¢ G8/3.0 was laid on top of the rock slope, with rock bolts anchoring at every 3m spacing. This acted to strengthen and prevent detachment of any loose rocks from the rock surface. An estimated of 1800 m2 with a height up to 30m are to be protected and covered. Galfan Steelgridā„¢ which is made of zinc-alluminium alloy coating to better corrosion protection is a netting consist of steel cables weaved longitudinally into wire mesh. This enhances the drapery stiffness, thus effectively transfers all heavy stress to the rock bolts.

Used Products

MacArmour & SteelGrid
MacArmour & SteelGrid
MacArmour MacArmour is a 2-in-1 product that combines a homogeneous structure of bi-directional steel wire ropes with double twView
