Reinforced Soil Walls and Slope Reinforcement
2007
MABLEDON, DARTFORD, UNITED KINGDOM
Highways Agency
Costain Civil Engineering Ltd
Jacobs
A2 / A282 JUNCTION IMPROVEMENTS

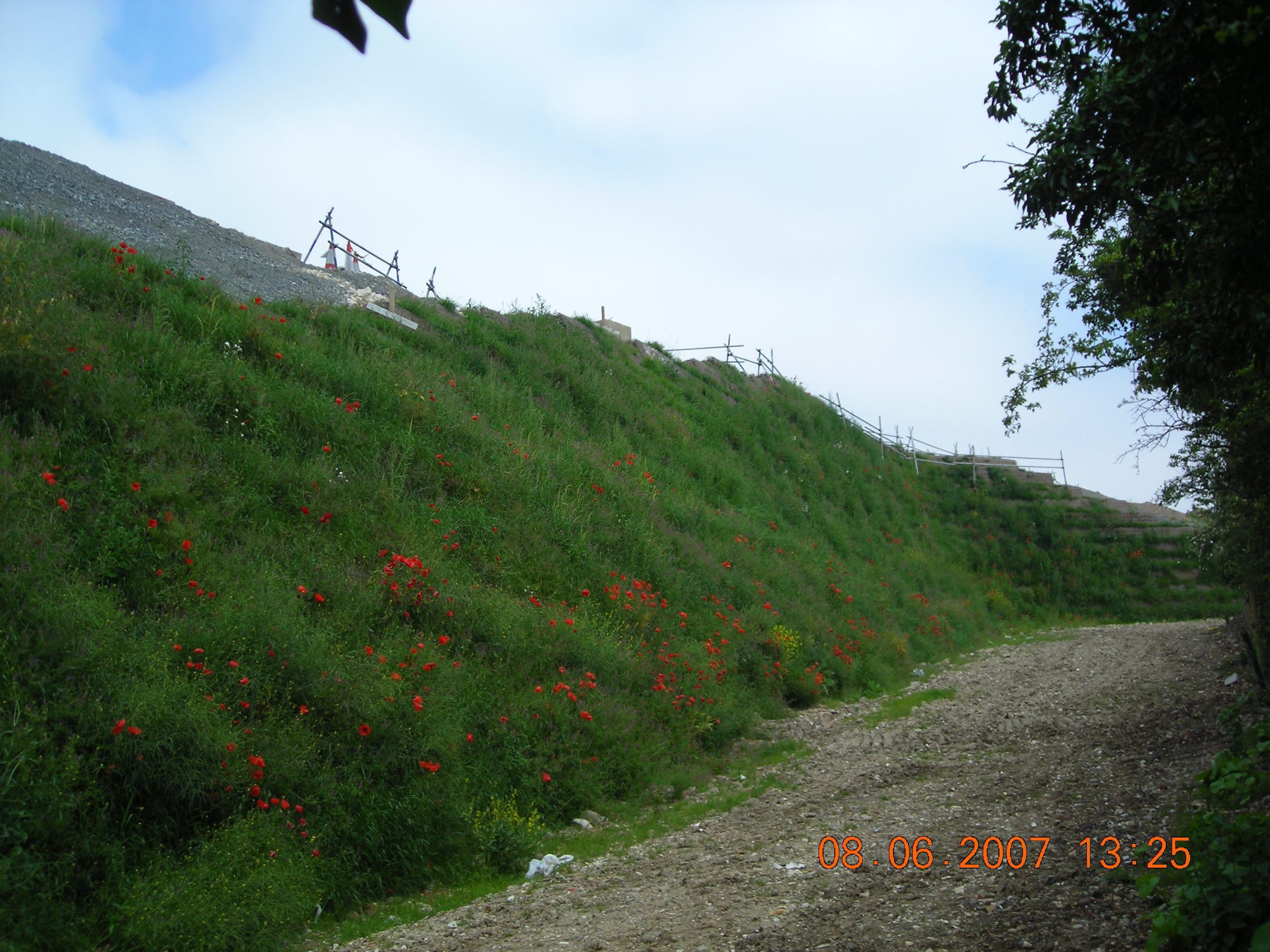

Green Terramesh reinforced slope under construction

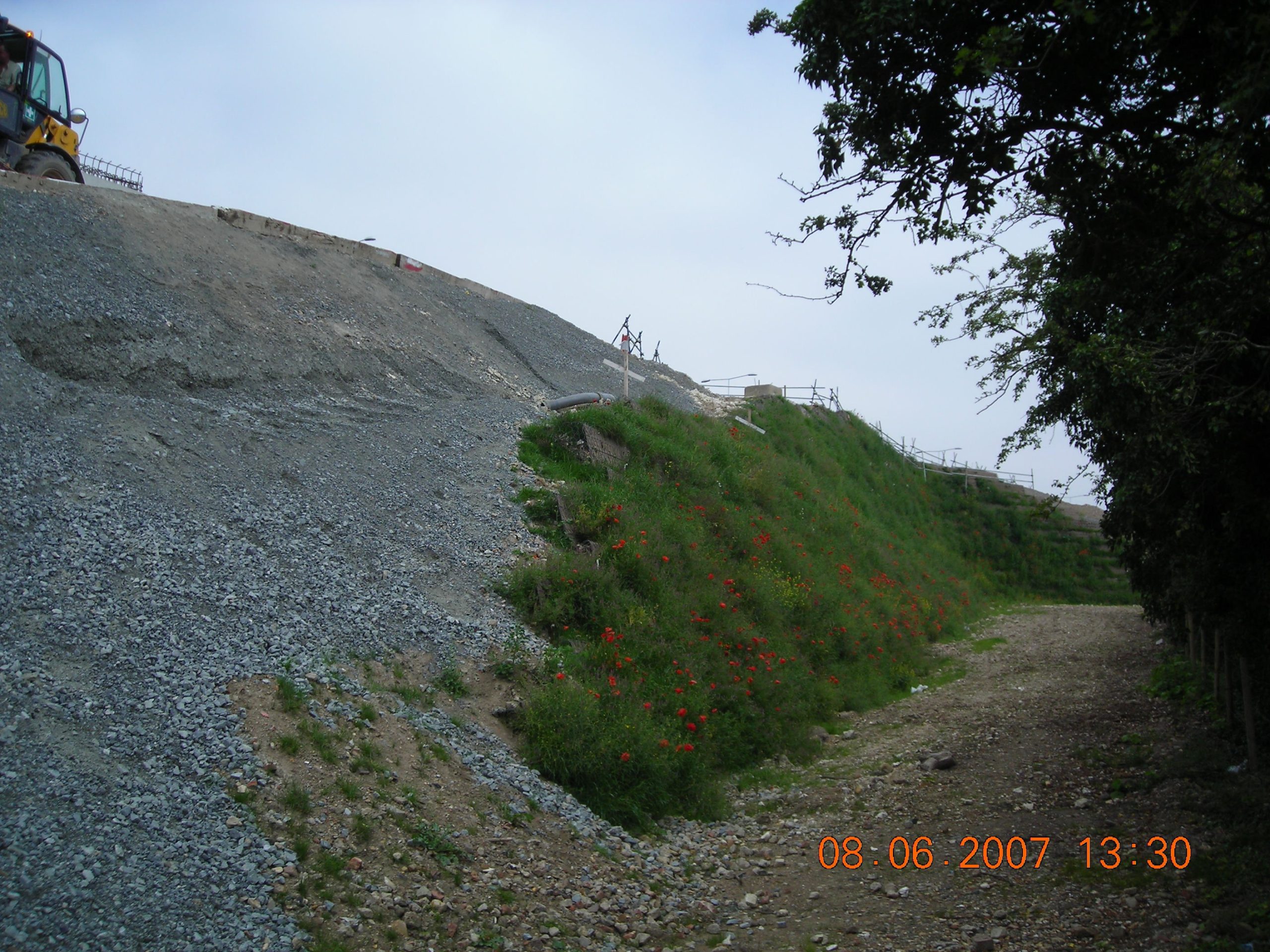

Green Terramesh reinforced slope under construction
Green Terramesh reinforced vegetated
Problem
The important junction between the A2 and A282 arterial routes adjacent to London’s M2 motorway needed widening from three lanes to four. A widened embankment would support the new lane. At the foot of the existing slope is a mature hedgerow which supports several nationally scarce and vulnerable species, including ladybirds, wood boring beetles, fungus weevils and bark beetles. The bark of the hawthorn trees in the hedgerow supports the jewel beetle, a scarce species in North Kent. If the usual 1:2 slope was built to form the embankment for the fourth lane, this hedgerow and the crucial habitat it provided would be destroyed.
