NL BERGEN

Home > Histori suksesi > NL BERGEN

Slope Protection

2019

BERGEN - NORTH HOLLAND - Netherlands

Texion Geosynthetics NV

DIJKENCOMBI (VISSERS PLOEGMAKERS/VAN DE WETER

TAUW

NL BERGEN

Problem

In the valley of the Maas in North Holland, the local authorities experienced some problems with erosion of the dikes. In order to solve these problems next to the river Maas and protect the dikes against erosion, Waterschap Limburg was looking for a partner. Texion Geosynthetics together with Maccaferri provided a very simple but adequate solution by installing a polypropylene anti-erosion mat. To ensure safe and easy installation on the slopes of the dikes the product MacMat R020 was selected.

Solution

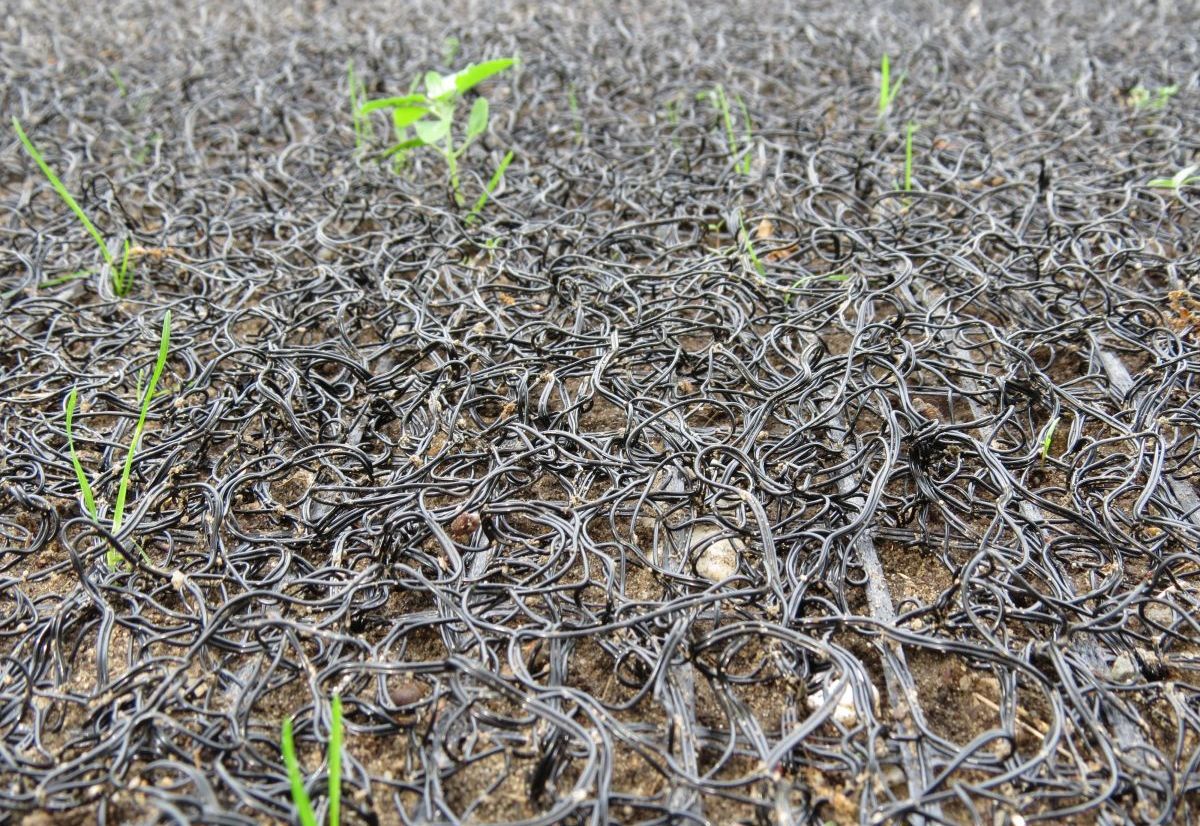

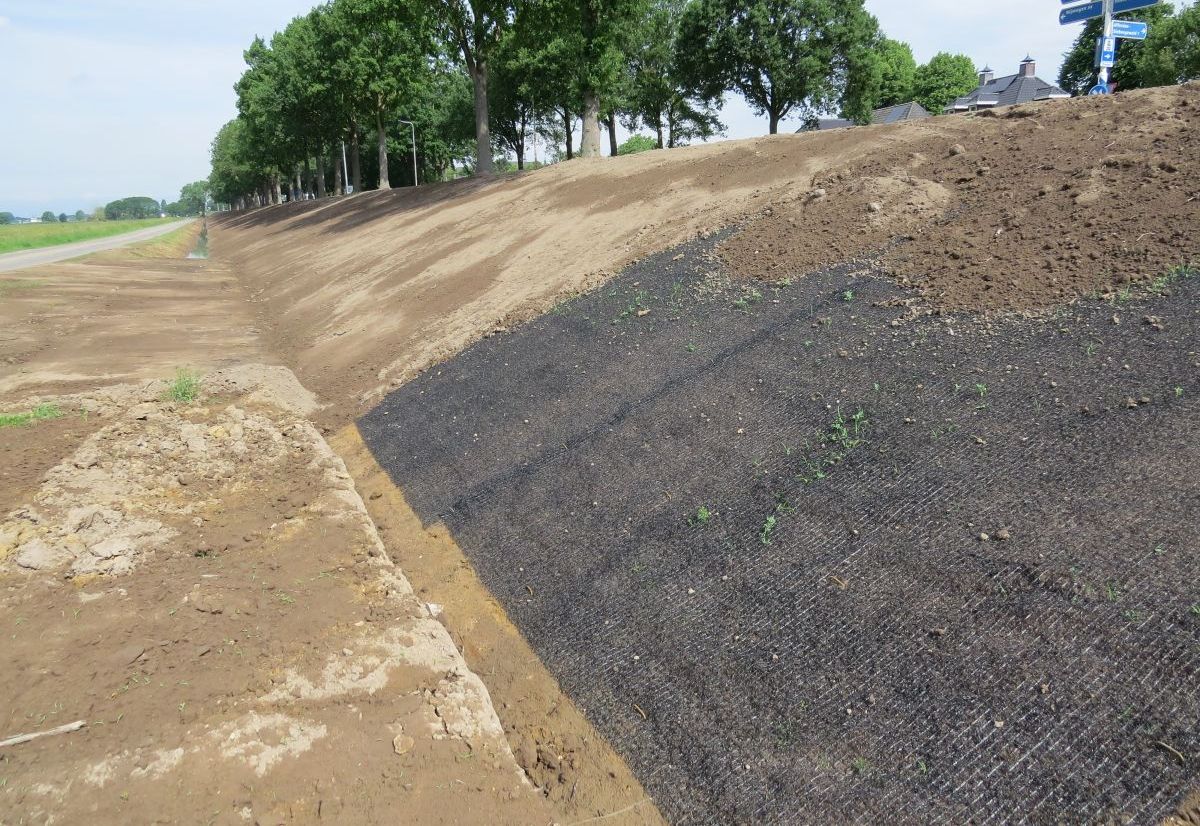

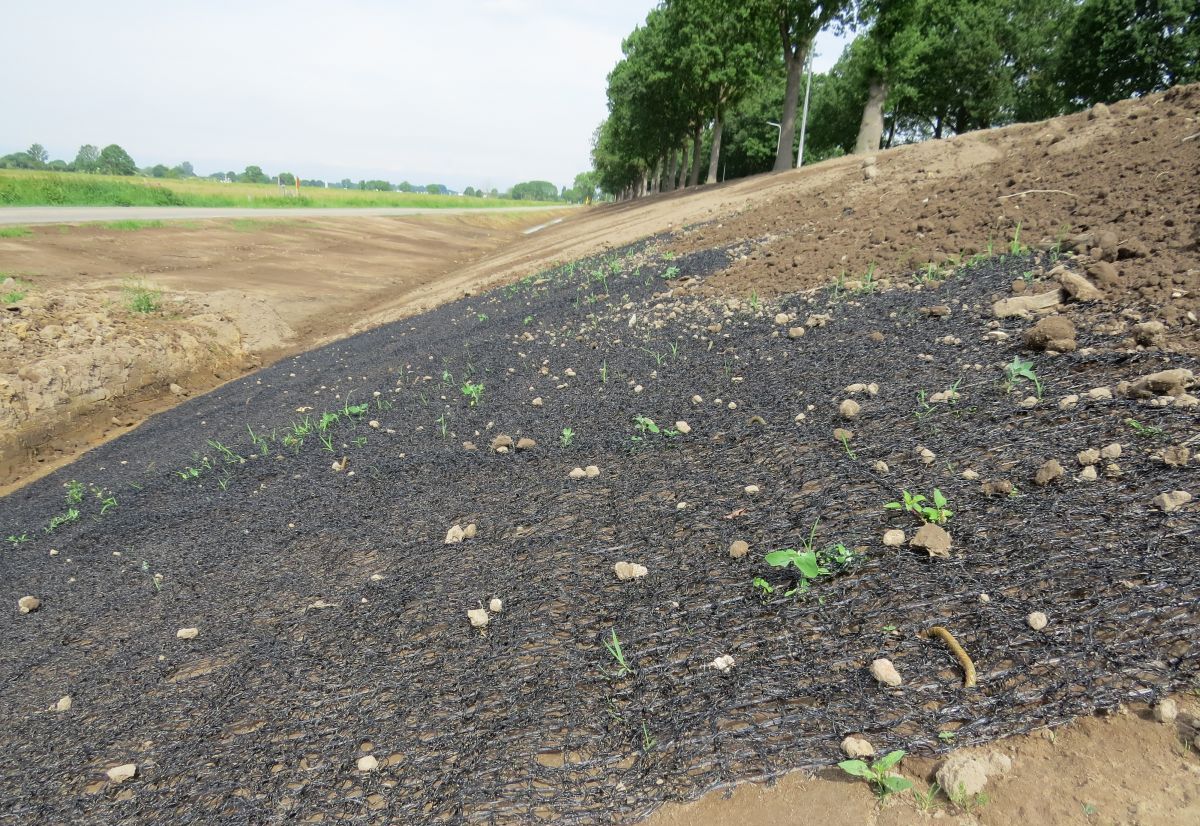

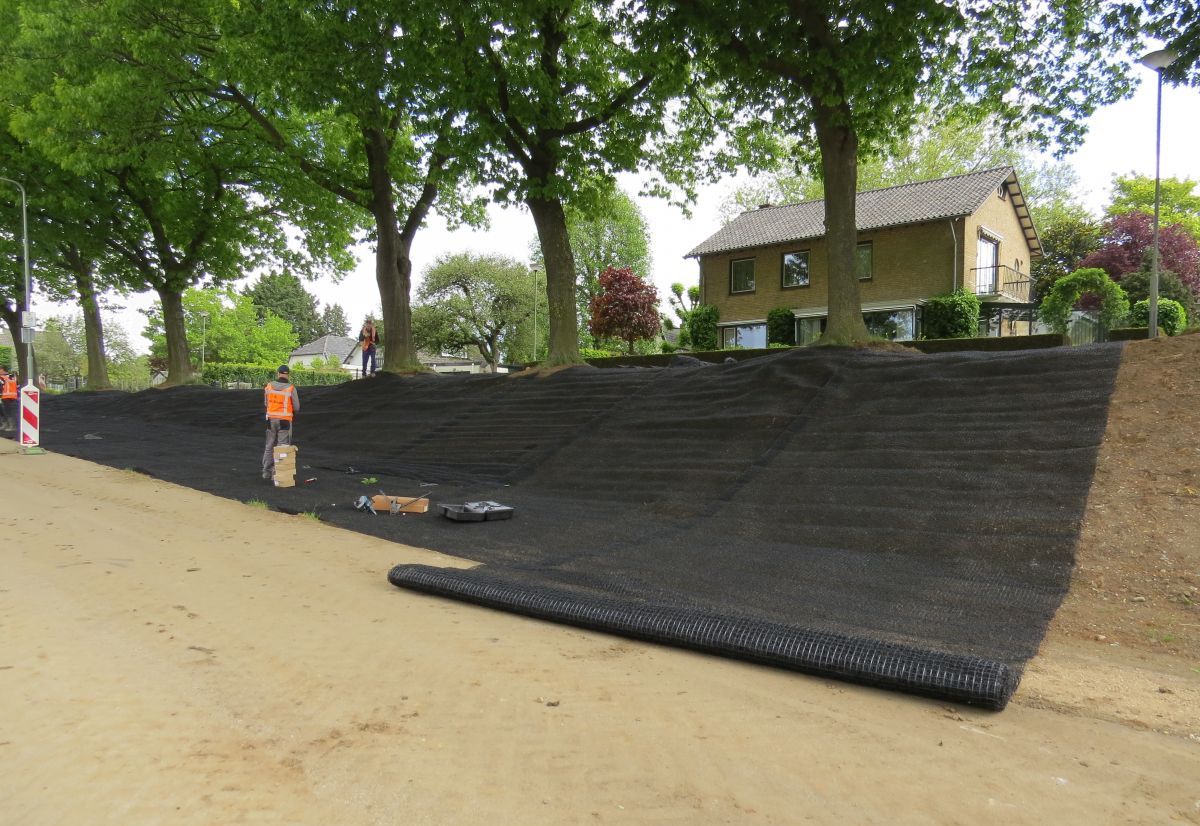

The anti-erosion mat MacMat R020 is reinforced by a polyester geogrid with a tensile strength of 20 kN/m. The MacMat R020 was secured to the slope with metal pins that were installed in a diamond pattern. To avoid wastages, the rolls could be connected to one another by 8 clips/meter = 2,5 kN/m x 8 = 20 kN/m. After the installation phase, a layer of 5 – 7 cm of vegetative soil was placed upon the MacMat R020. Already during the installation phase the first grass blades started to grow up.

Used Products

MacMat R
MacMat R
Gjeomatet e përforcuara janë të përbëra ku struktura mat 3D ne brendesi te një përforcimi që mund të jetë ose një rrjetë çeliku me dopio torsion ose nShiko
