Reno Mattress Plus
Perlindungan hidraulik tepi sungai yang hemat biaya
Dinamakan menurut salah satu intervensi pertama yang dilakukan oleh Maccaferri lebih dari 100 tahun yang lalu, Reno Mattress® sekarang identik dengan pekerjaan hidrolik dan proyek perlindungan erosi di seluruh dunia. Pada saat yang sama, di Maccaferri kami sangat percaya pada inovasi! Inovasi dalam hal solusi dan produk merupakan bagian penting dari evolusi perusahaan yang sukses. Reno Mattress Plus adalah hasil uji eksperimental yang inovatif. Pemahaman yang lebih mendalam tentang kinerja matras memungkinkan kami untuk membuat desain yang lebih hemat biaya yang memberikan peningkatan daya saing pada solusi Reno Mattress.
Dalam aplikasi dengan nilai tegangan geser yang tinggi, Reno Mattress Plus lebih dari 73% lebih efisien daripada rip-rap. Solusi ini mengurangi jejak lingkungan dari perlindungan tepi sungai. Ini karena penghematan bahan dan transportasi. Selanjutnya, Reno Mattress Plus menciptakan habitat alami bagi spesies hidup, meningkatkan keanekaragaman hayati melalui perlindungan benthos: ruang interstisial matras menawarkan habitat bagi spesies yang hidup di zona transisi antara air dan darat. Reno Mattress Plus lebih mudah dipasang, bahkan dalam kondisi kemiringan yang curam, berkat diafragma ganda yang kuat yang mempercepat proses penyiapannya.
Perlindungan tepi sungai tradisional yang dibuat dengan batu lepas (rip-rap) membutuhkan lapisan bahan yang tebal agar efektif. Hal ini disebabkan batu tidak dibatasi dan lapisan batu tidak dapat ditempatkan secara akurat, mengakibatkan konsumsi batu yang lebih tinggi dan, akibatnya, meningkatkan beban lingkungan. Reno Mattress tradisional adalah perlindungan tepi sungai yang dirancang berlebihan dibandingkan dengan beban sebenarnya yang ditanggungnya. Reno Mattress Plus merupakan hasil uji eksperimen di Colorado State University. Pemahaman yang lebih mendalam tentang kinerja matras memungkinkan kami untuk membuat desain yang lebih hemat biaya, memberikan solusi kami peningkatan daya saing dibandingkan dengan sistem yang setara dan alternatif (tradisional).
Success Stories
Built, not just drawn
Discover more

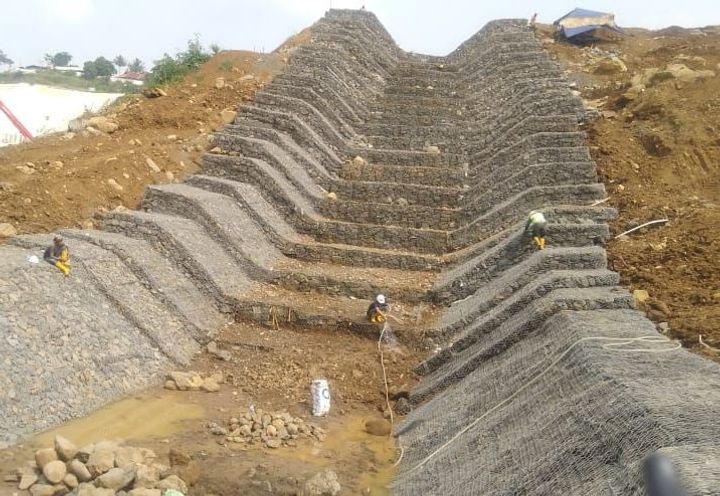

CIAWI DAM DROP STRUCTURE
Indonesia
Ciawi Dam is a dry dam located in West Java, Indonesia. The infrastructure is planned to have a capacity of 6,45 m3 and expected to reduce the flood discharge of 160 m3/sec. The purpose of this dam is to reduce the amount of rainwater from the upstream so that the city in the lowland area doesn’t flood. As a part of the dam construction, there is an existing river flow that needs to be diverted. The original design was using the heavy galvanize as the coating of the wire mesh or concrete structure as the alternative. The total length of the drop structure is 54,2 meters and 18 meters of total height.
Discover more
INDOCEMENT FACTORY RIVERBANK PROTECTION
Indonesia
Indocement factory is located in the South of Jakarta and it is the second-largest cement producer in Indonesia. PT Indocement Tunggal Prakarsa Tb in cooperation with Heidelberg Technology Center aimed to provide protection against the erosion affecting the banks of the river flowing adjacent to their cement production plant. During the rainy season, the riverbanks were severely damaged by erosion processes which were threatening the plant structures nearby (conveyor belts and storage tanks). The ongoing erosion had to be minimized through an engineered river lining.
Discover more

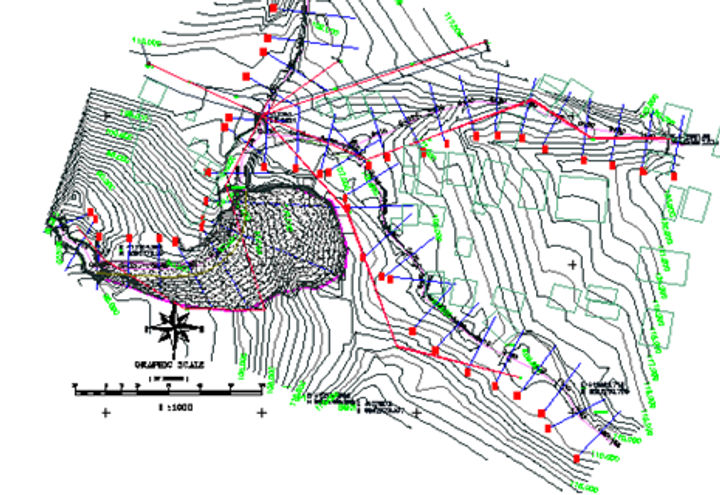

KANAWA SLOPE AND RIVER PROTECTION
Indonesia
Kanawa is located in the North of Ambon Island, Maluku Province of Indonesia. Some areas in the vicinity of the Governor’s property were prone to sliding (see picture before the intervention) and have already experienced shallow landslides during the rainy season. The objective of the Client was to stabilize the area using an environmentally friendly solution which could have given a “green touch” to the landscape. The total unstable soil height to be retained was approximately 10m. The main technical constraint of the project was the presence of a small river discharging directly at the toe of the slope to be retained. The water was falling straight at the toe of the slope with an uncontrolled hydraulic jump of approximately 10m. It was therefore important also to mitigate the water falling energy in order not to erode the new construction and to protect the slope against erosion.
Discover more
What we can do with
Reno Mattress Plus
