MACRES

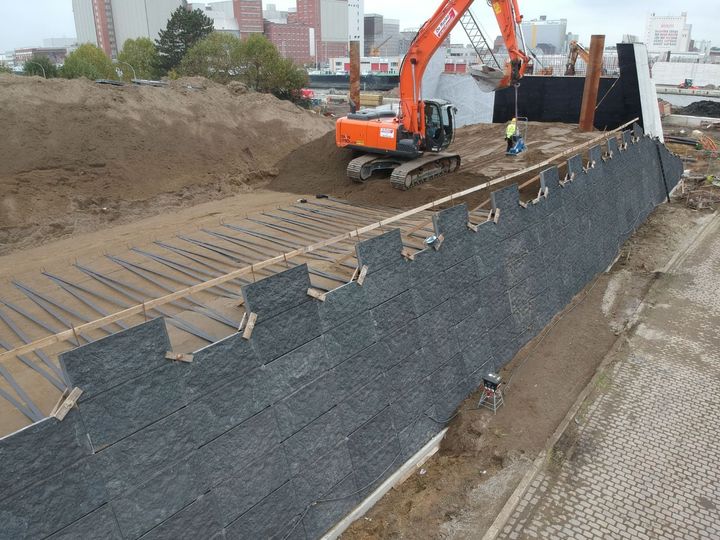

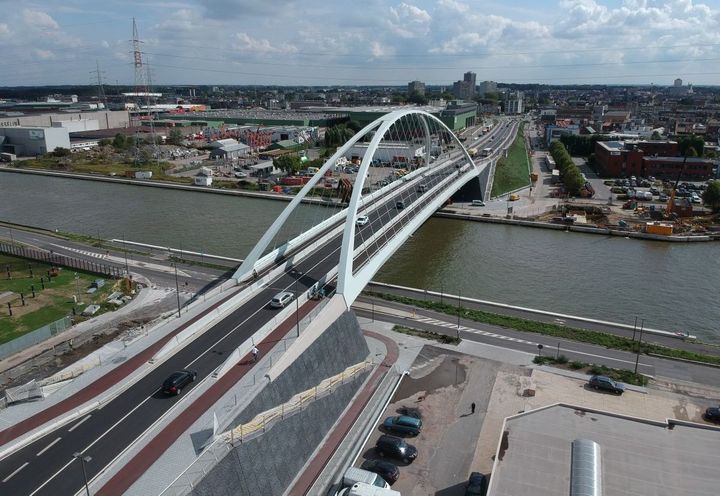

De Vlaamse Waterweg (Flemish Waterway Authority) invested more than 15 million Euro in the construction of the new Burgemeester Eduard Waghemansbrug, better known as Brug van den Azijn. 12. 5 million were dedicated to the bridge construction while 2. 5 million for the widening of the N130 between the district of Merksem and Deurne. The project included bus lanes in both directions, a one-way cycle lane, and a pedestrian path. The abutments were designed to support a 123 m span arch bridge, approximately 16 m wide. The new bridge clearance was targeted to be 9. 1 m high, allowing the passage of ships with four layers of containers. The architects of the project designed an articulated façade for the bridge structures. Therefore, the reinforced soil walls and the true abutments were designed with a 75° inclination.

Temukan lebih lanjut

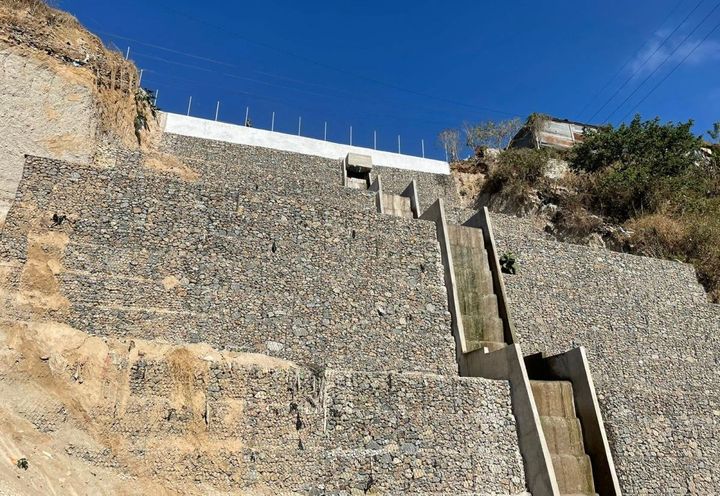

There is a significant erosion issue posing a risk to the stability of the area. Due to the erosion caused by a transverse culvert, the safety factors of the slope are compromised, exacerbating the situation. Additionally, the presence of a river at the base of the slope, flowing into the southern basin of Guatemala, exacerbates the problem due to flooding and ongoing rains that continue to erode the area. A protective structure with metal mesh DT is required to safeguard the integrity of the infrastructure.

Temukan lebih lanjut

The erosive action of the stream flowing parallel to kilometer 137 on the federal highway Pinotepa Nacional - Salina Cruz has caused the undermining of the embankment, risking its stability. Additionally, the urban expansion brings a larger surface covered with asphalt and concrete, which have a lower infiltration coefficient, resulting in increased hydraulic expenditure, especially during hydro-meteorological events that affect this coastal city.

Temukan lebih lanjut
