2023
Kuwait
Kuwait University
Shapoorji Pallonji International
Maccaferri
Kuwait University

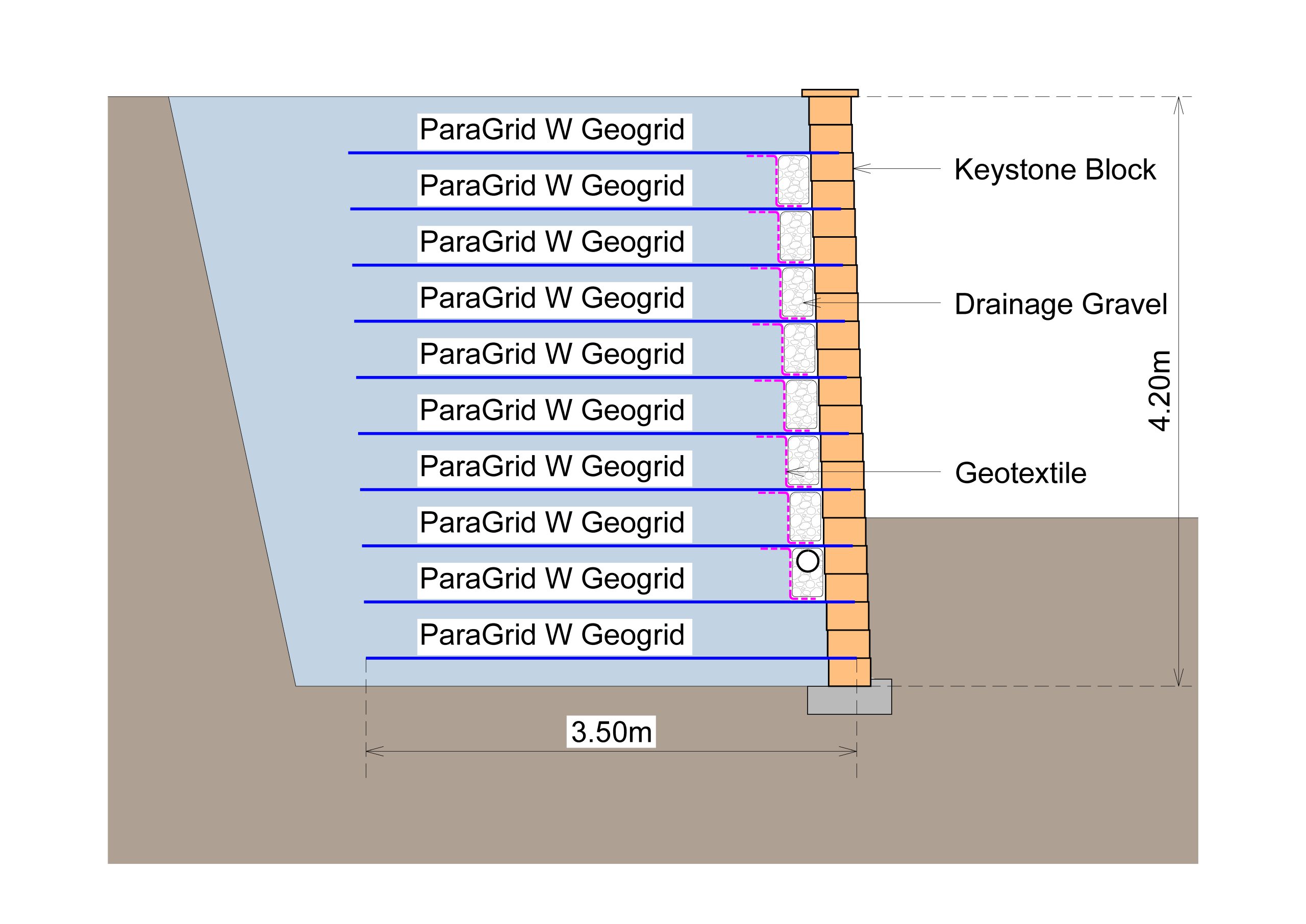

Section
Location
During Contruction
After Construction
Challenge
Kuwait University premises underwent extensive infrastructure development, encompassing landscaping, roads, and building structures. Some areas required retaining walls as high as 5 to 6 meters to accommodate the challenging terrain. Being located at center of city, the retaining walls needed to be aesthetically pleasing to complement the surrounding environment. Additionally, certain sites posed significant engineering challenges due to restricted space and weak foundation soil, necessitating the use of a Mechanically Stabilized Earth (MSE) wall for its proven structural and cost advantages. The primary challenge was to design and construct an MSE wall system that could adapt to these space-constrained areas, where existing interferences complicated the installation process.
Solution
Maccaferri’s MacWall system was selected as the ideal MSE wall solution for this project, given its architectural appeal, technical efficiency, and flexibility in addressing site-specific constraints. The MacWall system featured segmental concrete blocks (Keystone), BBA-certified Paragrid geogrid soil reinforcement, and fiberglass pins for mechanical connections, ensuring durability and reliability. For most sections, standard MSE wall construction was employed, utilizing geogrid lengths equivalent to at least 70% of the wall height to achieve structural stability.This adaptation minimized excavation needs while maintaining wall integrity. Maccaferri Middle East played a pivotal role in the project, providing comprehensive services, including the design, supply, and construction assistance for the MacWall system. By employing innovative design approaches and high quality materials, the solution effectively addressed both the spatial and geotechnical challenges of the project, delivering a robust, visually appealing retaining wall system.
Used Products
