DEVREKANİ-ÇATALZEYTİN ROAD TERRAMESH PROJECT

Home > Success stories > DEVREKANİ-ÇATALZEYTİN ROAD TERRAMESH PROJECT

2026

KASTAMONU, DEVREKANİ, ÇATALZEYTİN

GENERAL DIRECTORATE OF HIGHWAYS, 15TH REGIONAL DIRECTORATE

İREM İNŞAAT YAPI SAN. VE TİC. A.Ş.

MACCAFERRI TURKEY

DEVREKANİ-ÇATALZEYTİN ROAD TERRAMESH PROJECT

Challenge

The Black Sea Region of Türkiye has a climate characterized by heavy rainfall throughout the year. This situation causes serious geotechnical and drainage problems, particularly in highway infrastructures constructed on mountainous and steep terrains. Similarly, along the Devrekani–Çatalzeytin route in Kastamonu province, intense rainfall endangered the safety of the road platform, creating the need for a retaining system in order to widen the roadway platform. The weak ground conditions in the area, combined with the reduction in bearing capacity due to rainfall, made the implementation of permanent stabilization systems essential.

The aim of the project was to ensure the long-term safety of both the highway platform and the existing infrastructure, while also widening the road platform. Within this scope, a retaining system that is environmentally compatible and capable of exhibiting high flexibility was required. Maccaferri’s Terramesh retaining wall solution was evaluated as an ideal system to meet these requirements. In the project, stepped modular wall types with varying heights were implemented, resulting in a system that is both aesthetically pleasing and durable. Ultimately, the project aimed to control ground movements in the area and provide a long-lasting roadway solution.

Solution

In the Kastamonu Devrekani–Çatalzeytin project, Maccaferri was preferred due to its ability to provide a durable, environmentally friendly, and technically optimized solution suitable for the regional conditions. As a result of the detailed geotechnical analyses and design studies carried out by Maccaferri’s engineering team, each retaining wall segment was specifically designed for the project requirements. Thanks to its high drainage capacity, flexible behavior against deformations, and rapid installation advantages, the Terramesh system stood out as both an economical and sustainable alternative compared to conventional reinforced concrete solutions.

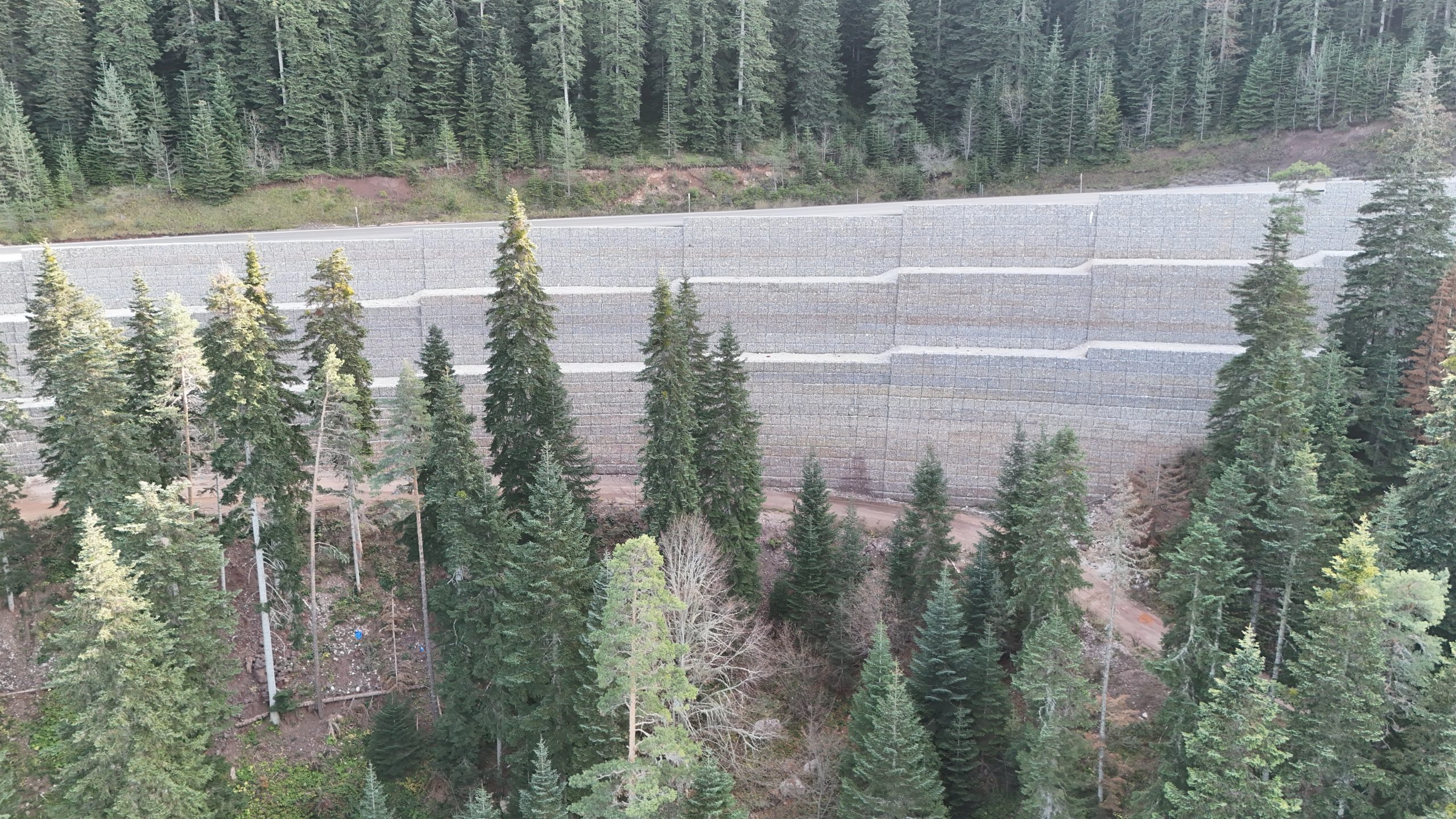

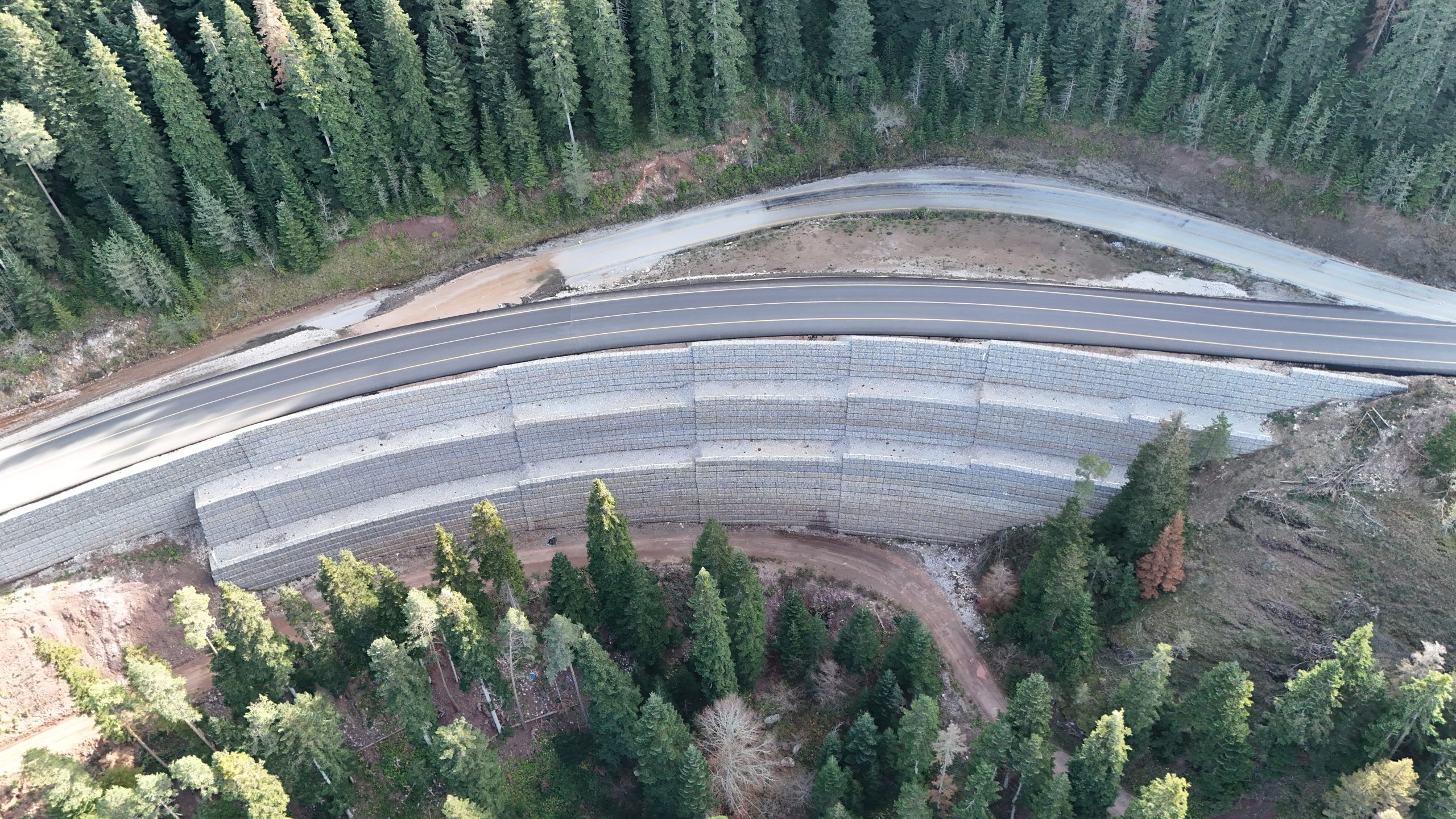

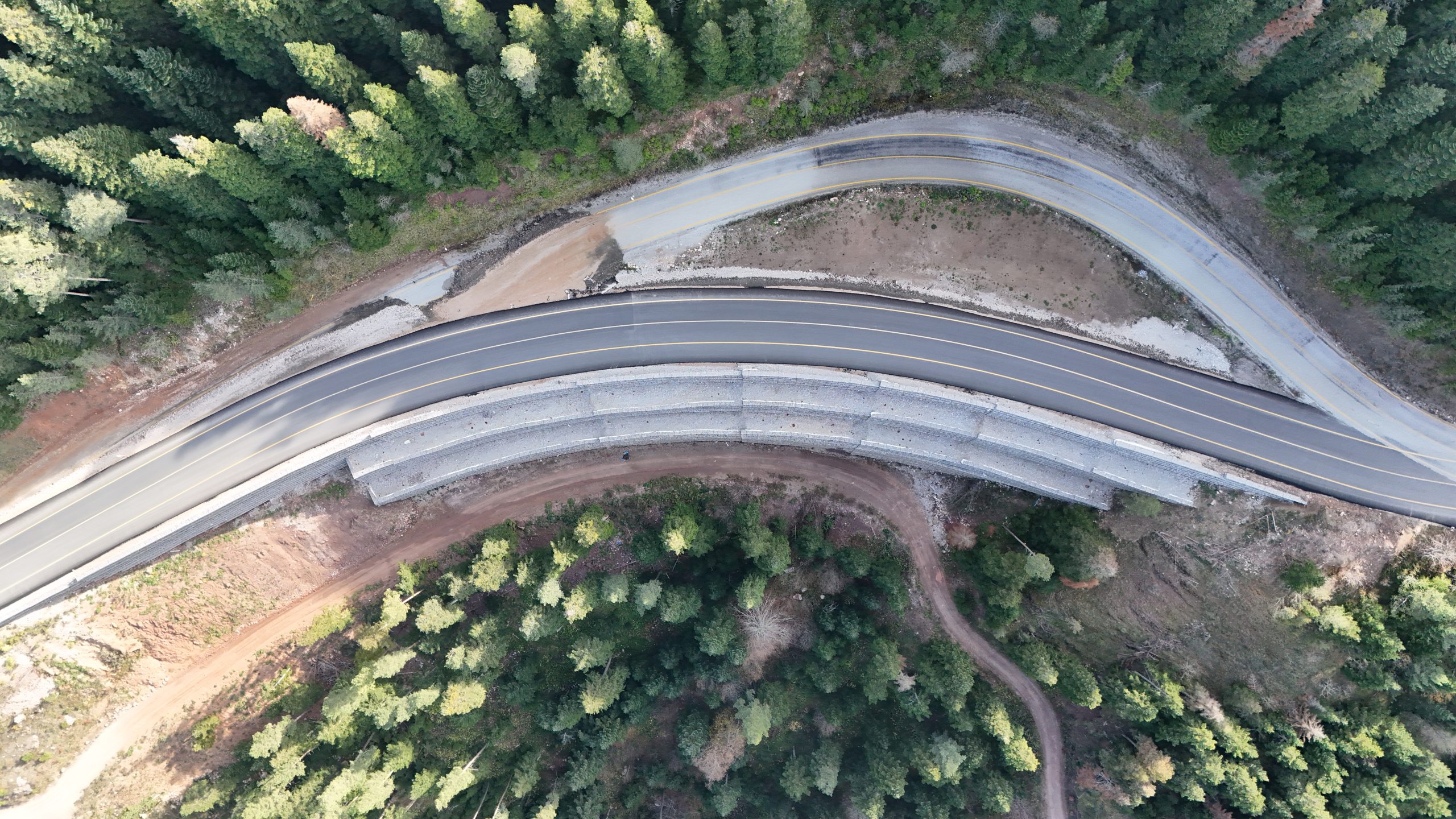

Within the scope of the application, Terramesh modules were installed step by step on slope surfaces with varying inclinations, ensuring compatibility with the natural topography. Maccaferri contributed to the project not only as a product supplier, but also through comprehensive support including design, engineering consultancy, and on-site technical assistance services. During the construction process, which was carried out in close coordination with the project team, the works were completed as planned despite challenging ground conditions and climatic difficulties in the field. Through this application, the highway route was successfully secured once again, and the objective of achieving a long-term service life was accomplished by widening the road platform.

Used Products

TerraMesh
TerraMesh
Maccaferri Terramesh® Family includes different facing options to build a Mechanically Stabilized Earth (MSE) structures and Reinforced Soil SlView
star
MonoAxial GeoGrids
MonoAxial GeoGrids
Paragrid™ WAn enhanced high performance knitted geogrid characterized by a very high modulus and the lowest reduction factors. Designed forView
star
Nonwoven Geotextiles
Nonwoven Geotextiles
Versatile Solutions for Separation, Filtration, and Protection Nonwoven geotextiles are flat textile structurView
star
