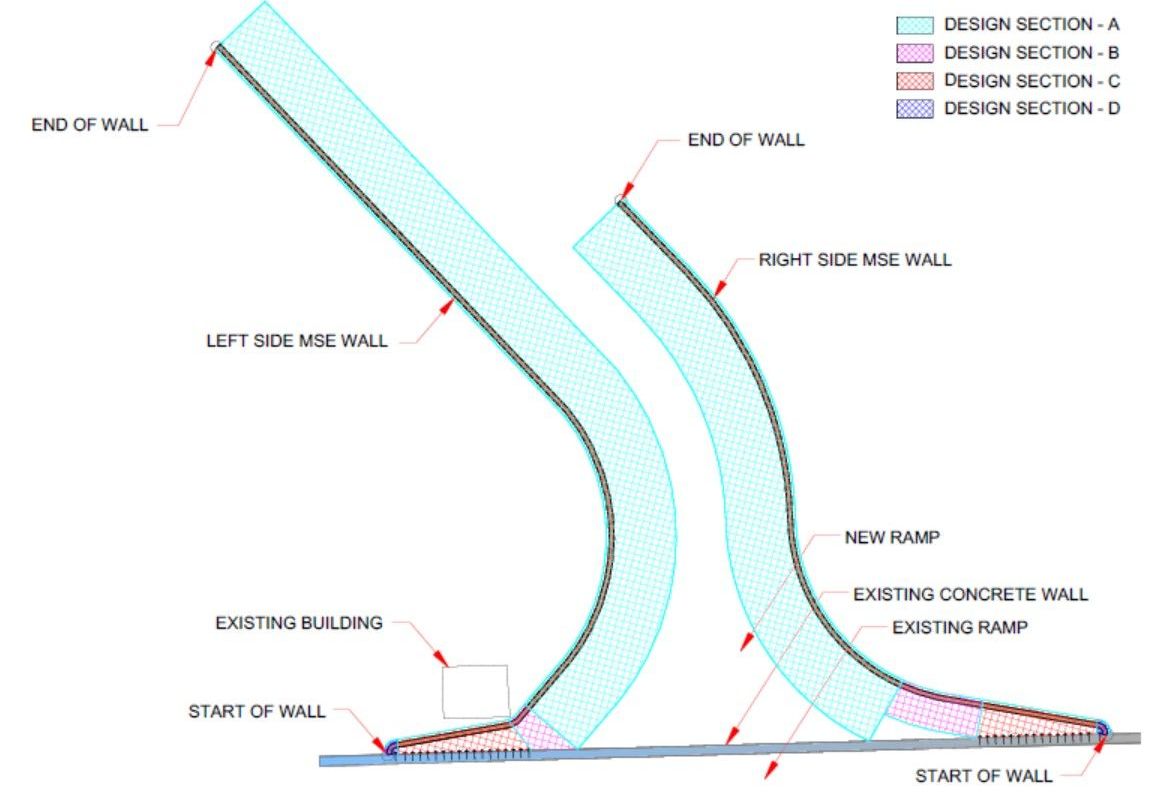

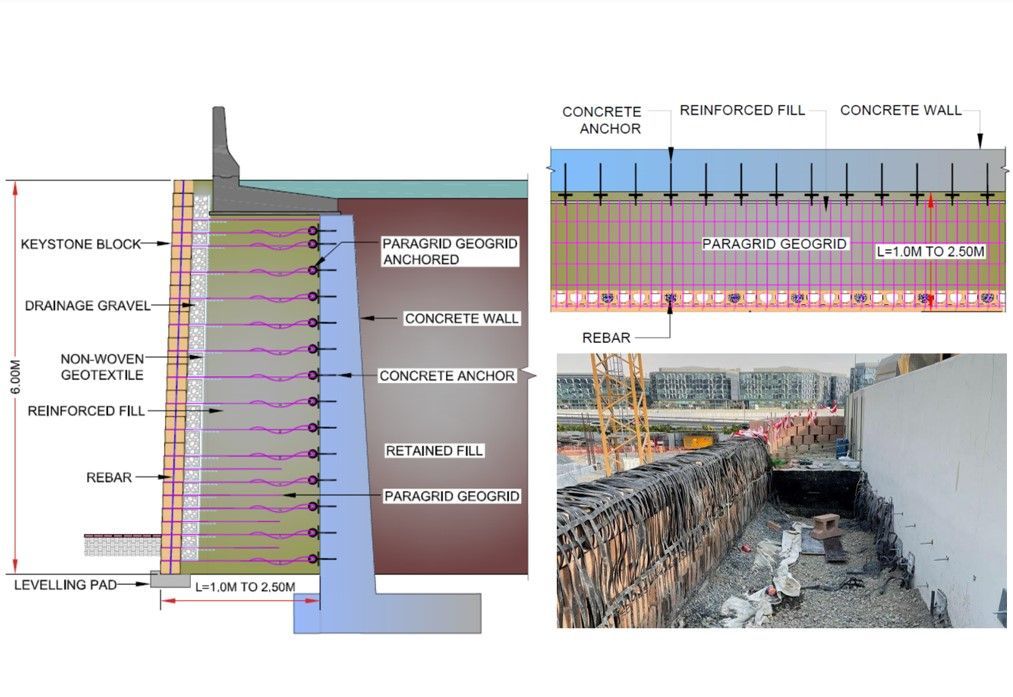

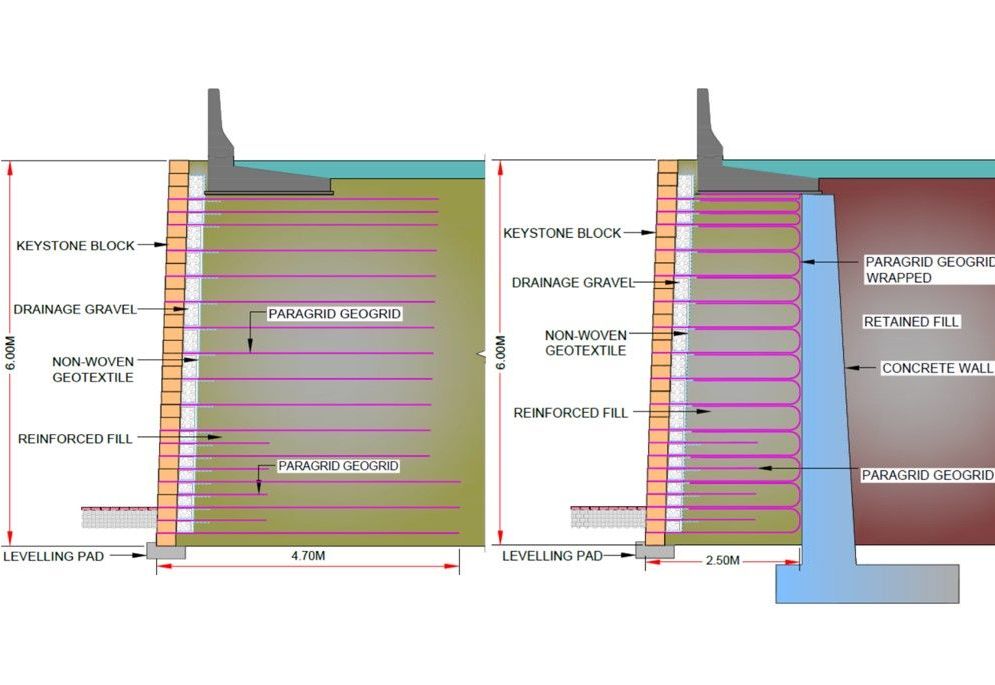

Maccaferri’s MacWall system was chosen as the preferred MSE Wall type, owing to its techno-commercial and architectural benefits, in addition to its flexibility for adapting to the site space constraints. MacWall system consists of segmental concrete blocks (type Keystone), BBA certified geogrid soil reinforcement (type Paragrid) and mechanical connection by fiberglass pins. In the project, for most of the stretches, it was feasible to consider simple MSE wall (Section A) with geogrid length ≥ 4.2m (70% of the wall height). Sections B, C & D represented the cases where available width was less than 70% of wall height, due to the proximity to the existing concrete wall (refer plan drawing). The widths available for geogrid in Section B ranged from 2.5m to 4.2m. If the design length of geogrid exceeded the available width, it was wrapped inwards (Section B) to dissipate residual stresses within the reinforced fill. For the remaining stretches where available width was further reduced due to the location of concrete wall, it was required to actively connect the narrow MacWall wall to the existing concrete wall (Section C). In this case, the geogrid was connected to the concrete wall through anchors and steel cables at all levels. In Section D case, the available width was ≤ 1m and the MacWall was realized by actively connecting the keystone facing block to concrete anchors using steel stirrups and rebars. Maccaferri Middle East was involved in design, supply and construction assistance for the scope of MacWall MSE wall system in the project.
