İSTANBUL - MARMARA - Turkey
KARAYOLLARI GENEL MÜDÜRLÜĞÜ
ISTANBUL – ŞILE – AĞVA ROAD PROJECT
ISTANBUL – ŞILE – AĞVA ROAD PROJECT_0
ISTANBUL – ŞILE – AĞVA ROAD PROJECT_1
ISTANBUL – ŞILE – AĞVA ROAD PROJECT_2
At the sections between Km: 16+500 – 26+950 and Km: 37+000 – 84+800 of the Kuzey Marmara Road Project which is connecting Agva and Istanbul, unstable slopes and rock fall events resulted from the excavation works for the base construction of the V4 Viaduct. Especially for the ongoing works on the viaduct, the rockfall potential of the slopes threatened the health and safety of the site workers. During a site visit of our technical team, rock volumes with the range of 0.25-0.3 m³ were detected. With the aim to protect the site workers during the further construction period, a temporary solution was considered.

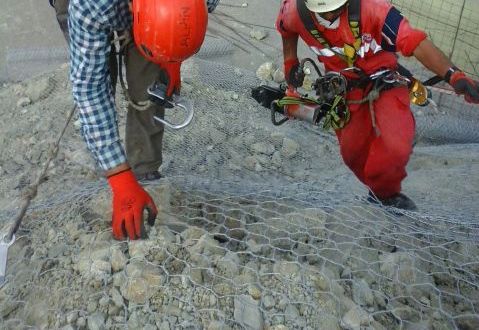

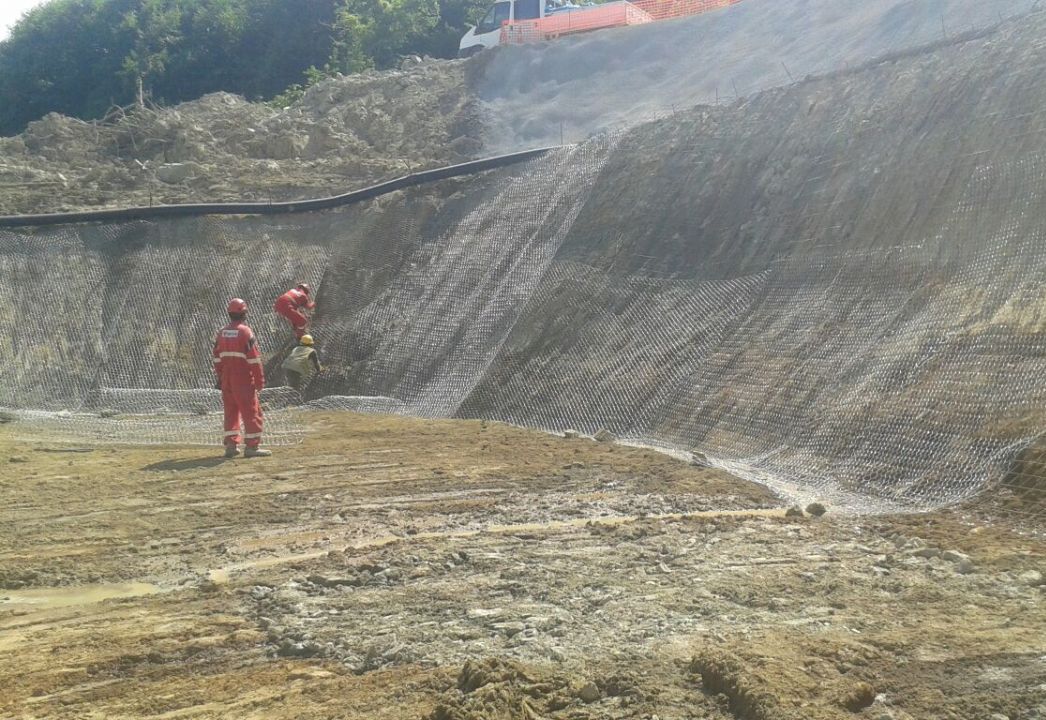

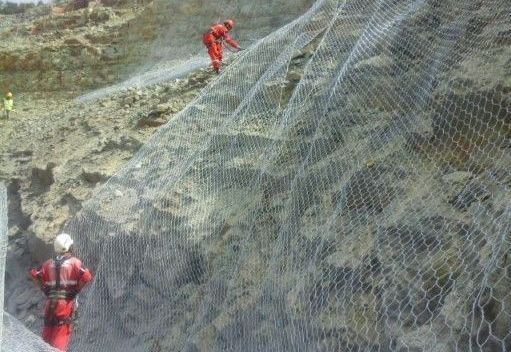

As a consequence of the above mentioned situation, it has been found necessary to protect the slope with a double-twisted wire mesh in a simple drapery system. In the case of rockfall, the energy of the rocks will be decreased and the falling rock material will be guided to the toe of the slope without threatening neither the construction workers nor the viaduct construction. As per the volume of the potentially risky rock materials and the therefore composing maximal energy, a double-twisted wire mesh with a 6×8 mesh size produced from a 2.7mm, galvanized steel wire was installed. For a better connectivity between mesh and slope the mesh was mounted on the slope with one slope anchor each 25-30 m². For the complete project site, a total of 12.900 m2 Wire Mesh has been utilized.
