TerraMesh
ระบบกำแพงดินเสริมกำลังแบบโมดูลาร์
กลุ่ม Maccaferri Terramesh มีตัวเลือกสำหรับผิวหน้าที่แตกต่างกันเพื่อสร้างโครงสร้าง Earth Stabilized Earth (MSE) และ Reinforced Soil Slope (RSS) ประกอบด้วยตะแกรงลวดเกลียวคู่ (แบบ 8x10) ที่ประกอบไว้ล่วงหน้าแล้ว พร้อมประกอบเมื่อถึงหน้างาน การเสริมแรง ผิวและฝาปิด ทั้งหมดล้วนเป็นแผงตาข่ายที่ต่อเนื่องกันเป็นแผงเดียวโดยไม่ต้องมีการตัดใดๆที่ไซน์งาน
Terramesh ผลิตจากลวดเหล็กคุณภาพสูงบวกด้วยการเคลือบโพลิเมอร์เพิ่มเติม (Polimac) เพื่อรับประกันอายุการใช้งานการออกแบบถึง 120 ปี
PoliMac คือสารเคลือบที่สามารถทนต่อสภาพแวดล้อมที่รุนแรงที่สุด ซึ่งนำไปสู่การเพิ่มประสิทธิภาพที่ยอดเยี่ยม
PoliMac รับประกัน: - ทนทานต่อการเสียดสี 10 เท่า
- ทนทานต่อสารเคมี 2 เท่า
- มีประสิทธิภาพ 4 เท่าในสภาพอากาศที่หนาวเย็น
- ทนทานต่อรังสียูวี 4 เท่า
Terramesh ถูกผลิตในโรงงานของเราทั่วโลก ระบบการจัดการและการผลิตในโรงงานของเราหลายแห่งได้รับการรับรองตามมาตรฐาน ISO 9001 มีตัวเลือกผิวหน้าที่แตกต่างกันสามแบบ หน้าหิน (Terramesh System), หน้าพันธุ์พืช (Green Terramesh) หรือหน้าสถาปัตยกรรม (Mineral Terramesh)

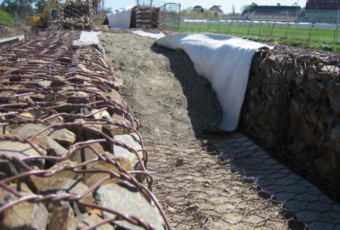

Terramesh System เป็นระบบโมดูลาร์ที่ใช้ในการสร้างผนัง MSE ด้วยกล่องลวดตาข่ายเกเบี้ยน ส่วนผิวหน้าถูกสร้างขึ้นโดยการเชื่อมต่อแผงด้านหลังและไดอะแฟรมเข้ากับแผงหลักเพื่อสร้างเซลล์รูปสี่เหลี่ยมที่ใช้ในการกักขังหิน การเสริมแรงของตาข่ายเซลล์ผิวด้านหน้าและฝาปิดล้วนเป็นแผงตาข่ายต่อเนื่องกัน
Terramesh System มีจำหน่ายในความยาวมาตรฐาน โดยไม่ต้องตัดที่ไซต์งาน หลังจากประกอบที่ไซต์งานแล้ว ตาข่ายสี่เหลี่ยมจะถูกเติมด้วยหินเกเบี้ยนที่เหมาะสม การวางโครงสร้างจะถูกวางบน Geogrid เสริมแรงและบดอัด
Green Terramesh เป็นระบบโมดูลาร์ที่เป็นมิตรต่อสิ่งแวดล้อมใช้เพื่อสร้างโครงสร้างเสริมกำลังดิน (RSS) ซึ่งใช้ในการสร้างพรรณพืช (สีเขียว)
มันถูกใช้ทั่วโลกในโครงร่างโครงสร้างพื้นฐานที่สำคัญที่สุด บางส่วนประกอบด้วยลวดคตาข่ายบิดคู่ (ชนิด 8x10) เรียงรายไปด้วยผ้าห่มป้องกันการกัดเซาะและเสริมความแข็งแรงด้วยแผงตาข่ายเชื่อมเหล็ก เหล็กขึ้นรูปสำเร็จรูปสองตัวมาเชื่อมต่อที่ไซต์งานเพื่อรักษาแนวให้อยู่ในมุมเอียงที่ต้องการ ด้านหน้าที่ทำมุมและผ้าหุ่มป้องกันการกัดเซาะได้รับออกแบบมาเพื่ออำนวยความสะดวกในการสร้างพืชพรรณตามธรรมชาติ ข้อกำหนดที่สำคัญของ Green Terramesh คือส่วนประกอบทั้งหมดได้รับการติดตั้งมาจากโรงงาน ทำให้ Green Terramesh ติดตั้งได้รวดเร็วกว่าโครงสร้างเสริมกำลังดินของคู่แข่ง อุปกรณ์นี้ถูกสร้างขึ้นอย่างง่ายดายที่ไซต์งาน มุมค้ำยันรองรับผิวหน้าในมุมที่กำหนดโดยไม่ต้องใช้แบบหล่อภายนอกหรือบานเกล็ดใดๆ โครงสร้างดินถมจะถูกถมไว้ด้านหลังของผิวหน้าทันทีเพื่อส่งเสริมการเจริญเติบโตของพืชอย่างรวดเร็วบนทางลาด
Mineral Terramesh เป็นระบบเสริมกำลังดินที่มีเอกลักษณ์และง่ายต่อการติดตั้งพร้อมพื้นผิวหินลาด เหมาะอย่างยิ่งสำหรับการใช้งานที่ต้องการความสวยงามทันสมัยและสะอาดตา
ส่วนประกอบ Mineral Terramesh เป็นชิ้นส่วนสำเร็จรูปที่ติดตั้งมาจากโรงงาน พร้อมสำหรับการติดตั้งอย่างรวดเร็วที่ไซต์งาน โดยมีอายุการใช้งานการออกแบบ 120 ปี การติดตั้งทำได้ง่ายโดยไม่ต้องมีการเชื่อมต่อระหว่าง geogrid และชุดประกอบ
Mineral Terramesh ไม่ต้องการโครงภายนอกในรูปแบบใดๆ เนื่องจากมีแผงตาข่ายเชื่อมชุบสังกะสีอย่างหนักและเสาค้ำยัน ซึ่งยึดผิวหน้าในมุมที่ถูกต้องระหว่างการก่อสร้าง
โปรดติดต่อบริษัท Maccaferri ในพื้นที่ของคุณเพื่อขอรายละเอียดเกี่ยวกับการปฏิบัติตามข้อกำหนดและการรับรองในพื้นที่ของคุณ "
TerraMesh System
Gabion-facing solution for reinforced soil walls with a vertical rock face. Its pre-assembled units form gabion cells for stone confinement, allowing the use of locally available or on-site stones whenever suitable, helping reduce material transport. Designed for demanding applications and high-load conditions, it combines fast installation, durability and a natural rock-facing.
TerraMesh Green
Vegetated-facing solution for reinforced soil slopes and embankments. Designed to promote rapid vegetation growth, it combines an angled front face, erosion control blanket and suitable topsoil to create a natural green finish. Ideal for projects where structural performance and environmental integration must work together.
TerraMesh Mineral
Architectural rock-facing solution for reinforced soil structures with a sloping mineral finish. Its pre-assembled units include welded mesh panels and bracing struts that hold the face at the correct angle during construction, with no need for external framework. Ideal for projects where structural performance, reduced stone consumption and a clean-faced aesthetic are required.
Paramesh Walls
An advanced configuration combining TerraMesh units with our monoaxial geogrids that allows reinforced soil structures to reach steeper slopes, support higher loads and reduce settlements, while optimising the use of reinforcement only where needed.
PoliMac
A tested high-performance coating designed to enhance the durability of TerraMesh units in the most demanding environments. Compared with PVC coating, PoliMac delivers significantly higher performance: 10x abrasion resistance, 2x chemical resistance, 4x cold weather performance and 4x UV resistance. This protection supports a design life of up to 120 years and helps reduce long-term maintenance needs.
Design and assessment software
Maccaferri supports TerraMesh projects with a dedicated suite of software tools. MacSTARS W helps design reinforced soil walls and slopes, performing stability checks and supporting the optimisation of the structure. MacCycle Assessment enables comparative LCA studies, evaluating the environmental impact of reinforced soil structures.
เรื่องราวความสำเร็จ
สร้างขึ้นจริง ไม่ใช่แค่ภาพวาด
ค้นพบเพิ่มเติม
BAY BRIDGE, CALIFORNIA, 112-FOOT-TALL VEGETATED RSS
United States
The Bay Bridge demolition and reconstruction required a reinforced soil slope in the final phases of the new bridge’s construction. A reinforced slope was urgently needed behind the U. S. Coast Guard building that sits at water level on the southeast coast of Yerba Buena Island. The embankment confinement system (ECS) facing alignment was originally proposed to follow contours. However, the proposed slope of the contours varied from left to right and top to bottom, demanding custom manufacturing and complex construction.
ค้นพบเพิ่มเติม
BE-ANTWERP MALINAS
The access road of a new retail center has been planned in Mechelen, Belgium, to let customers easily drive to the new shopping mall. Initially, the retaining wall for the ramp leading to the bridge abutment had been planned as a concrete L-retaining wall, but, thanks to the technical support of Maccaferri, the design has been changed in favour of 530 sqm MacRes System with 12. 000 lm of ParaWeb reinforcement. Due to the bad foundation soil characteristics, the contractor asked Maccaferri´s support also for the calculation and delivery of 1. 100 sqm of ParaLink 950 as basal reinforcement over piles. Smooth standard panels have been chosen.
ค้นพบเพิ่มเติม
BE-MECHELEN R6
The construction of part of the new ring-road R6 in the municipality of Mechelen, Belgium, required the construction of 2 new road bridges. The designer adopted a very particular shape of the bridge abutment, where the two access ramps had to be built using a reinforced soil structure. The choice of Mineral Terramesh was very well appreciated because of the ease of construction and because of the nice external finishing. Moreover, the Municipality did not want to carry any maintenance of green facings, therefore the stone facing has been very well appreciated by the public authority.
ค้นพบเพิ่มเติม
