Жёсткая сетка для защиты от камнепадов
HEA-панели (с высокой поглощаемой энергией) от Маккаферри — это изделия с самой высокой жесткостью в линейке наших систем Mac.RO™, демонстрирующие исключительную прочность при малой деформации. Для сеток жесткость важнее прочности на растяжение, поскольку она влияет на их провисание под нагрузкой. Панели сплетены из одного неразрывного высокопрочного стального проволочного троса, закрепленного в каждой точке пересечения запатентованным соединением HEA «двойной узел».
В отличие от сеток одинарного кручения с тросом спиральной свивки, конструкция HEA-панелей обладает исключительными деформационно-прочностными характеристиками при минимально возможной деформации. HEA-панели используются в закрепляемой на склонах драпировке, где требуется малое провисание и высокая прочность. Благодаря многоосной деформации панели, нагрузки эффективно передаются на анкера на поверхности склона независимо от их расположения.
Запатентованное узловое соединение состоит из двух креплений, представляющих собой петли из пары стальных проволок диаметром 3,00 мм с покрытием Гальмак из сплава цинка с алюминием (5 %). Два таких крепления плотно охватывают тросы и перекрещиваются друг с другом. Панель состоитиз сетки с квадратными ячейками, изготовленными из одного троса, закрепленного алюминиевой обжимной гильзой в соответствии со стандартом EN 13411-3.
Success Stories
Built, not just drawn
Discover more
CANTERA ZIORDIA
The Ziordia quarry has an orography formed by limestone rock, with steep slopes as a result of quarrying, and potentially unstable large blocks. The company CRS Ingeniería contacted Bianchini Ingeniero to analyse the situation and possible solutions, and subsequently the company Inaccés Geotècnica Vertical also intervened. One of the main risks was the blocks that could fall from a 40-metre-high, 15-metre-wide mochón, located on one of the quarry's usual passageways. This represented a potential risk for the installations and the workers themselves. Therefore, a series of actions were carried out to stabilise these blocks and protect the area.
Discover more
PRESA FRANCISCO ABELLÁN
Spain
The Francisco Abellán reservoir is located near the town of Lopera, in the center of the province of Granada. It is fed mainly by the tributary of the river Fardes, which in turn is fed by the river Guadiana Menor and covers an area of 1847. 40 km2. The reservoir contains Miocene sedimentary materials such as sandstones, marlstones and calcarenites. In the extreme north-east, there is an alternation of these three materials and two problems: The first is in the upper sandstone bench due to the presence of unstable blocks, some of them of large size. The second problem is in the lower bank, where unstable blocks and roofs are also observed as a result of differential erosion. On the other hand, on the northwest slope (NW) there is access to the monitoring station which is unprotected against falling rocks.
Discover more

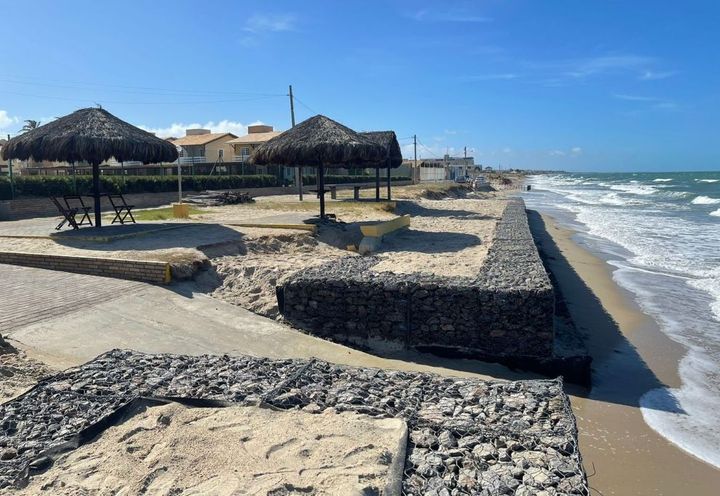

PROTEÇÃO COSTEIRA COM GABIÕES
Brazil
The sea waves were eroding the seafront in front of the condominium, where the development's leisure area and access ramp are located. These erosions have caused problems getting around and accessing the property.
