Reinforced Soil Walls and Slope Reinforcement
2020
PRISHTINE - KOSOVO - Kosovo
Republic of Kosovo, Ministry of Infrastructure
BECHTEL ENKA GENERAL PARTNERSHIP
TEMPUS PROJECT Ltd.
KOSOVO MOTORWAY PROJECT
WL 015
KOSOVO MOTORWAY PROJECT_2
WR 139
KOSOVO MOTORWAY PROJECT_4
Problem

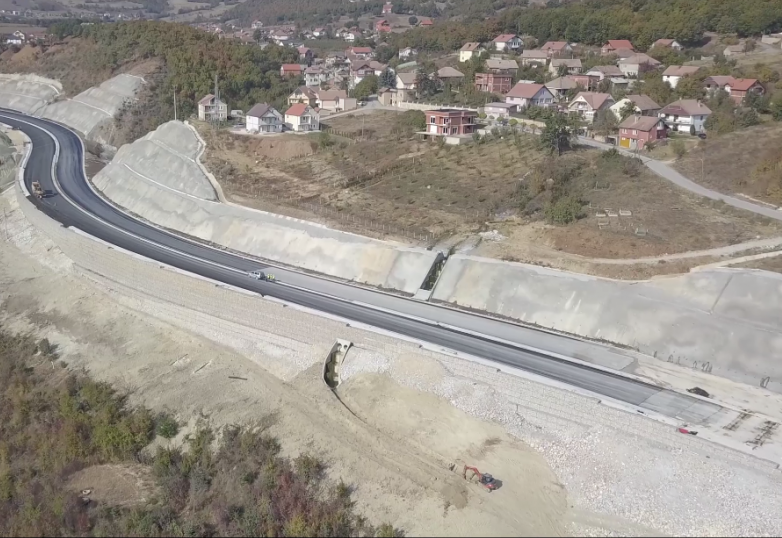

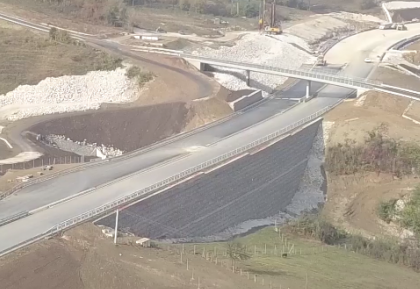

This project has implied reinforced soil wall design, material supply and installation. The main contractor was Bechtel Enka general partnership. Bechtel Enka joint-venture completed Kosovo’s first two motorways – Route 6 and Route 7. Route 6 Prishtine – Hani i Elezit is an integral part of road corridor which connects capital cities, Prishtine and Skopje (FYR Macedonia). Together these motorways create a transport corridor from Kosovo’s border with Albania, via its capital, to its border with North Macedonia. The walls have been built in a seismic and montainous area for a total of more than 13800 sqm of reinforced soil facing.
Solution

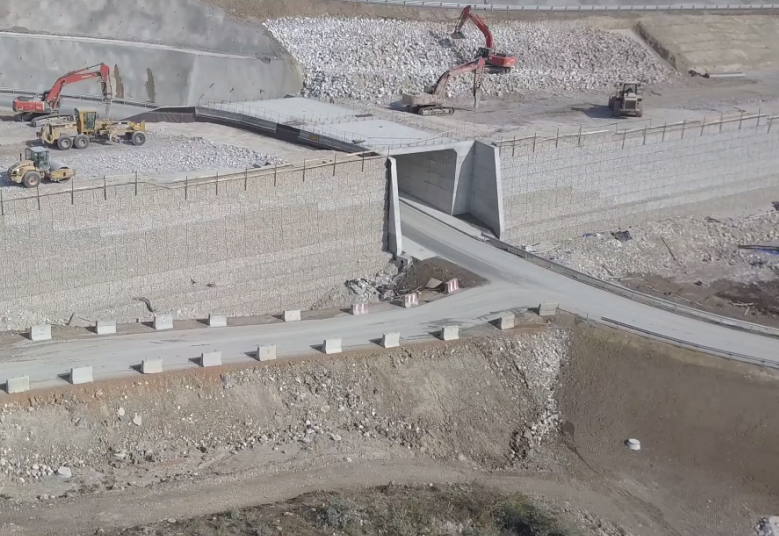

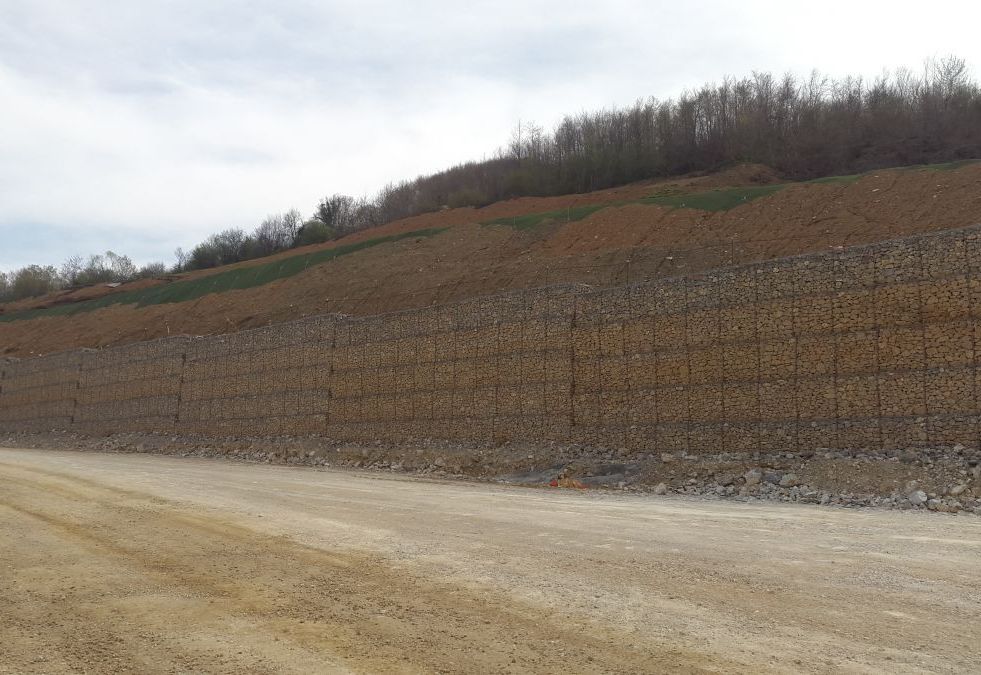

Mainly, seven Paramesh system walls have been built: WL 015, WL 024, WL 060, WR 131, WR 134, WR 139, WR 406. The main products used are Terramesh System 3x2x0.5 and 3x2x1, MacTex H35.1, ParaLink 500, ParaLink 300 and ParaGrid 150. The project included also gabions walls, soil nailing with MacMat and rockfall protection. Most of the walls comprises of box culverts at the bottom for the runoff of water. The maximum height of the reinforced soil walls is nearly 25 meters.
