Reinforced Soil Walls and Slope Reinforcement
2022
LABUAN BAJO - EAST NUSA TENGGARA - Indonesia
DINAS PU KAB. MANGGARAI BARAT
PT. INTI KARYA JAYA PERKASA
PT. INTI KARYA JAYA PERKASA
PARAMESH WALL FOR BAJO – MALAWATAR ROAD SEGMENT

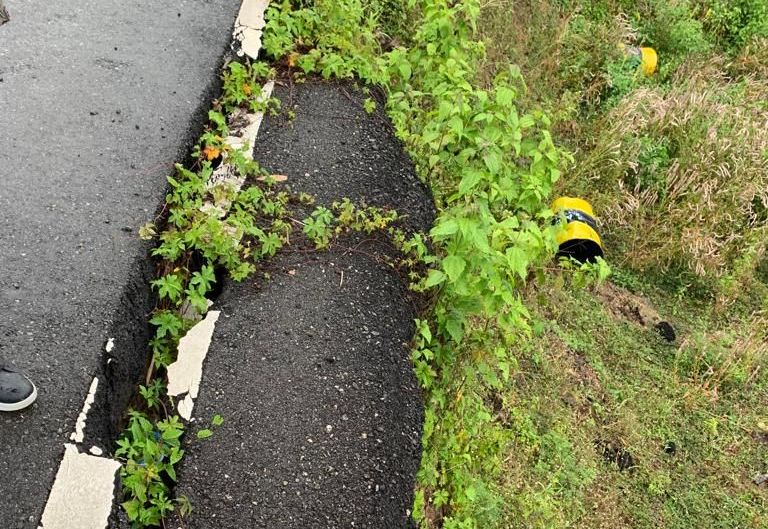

Before Construction

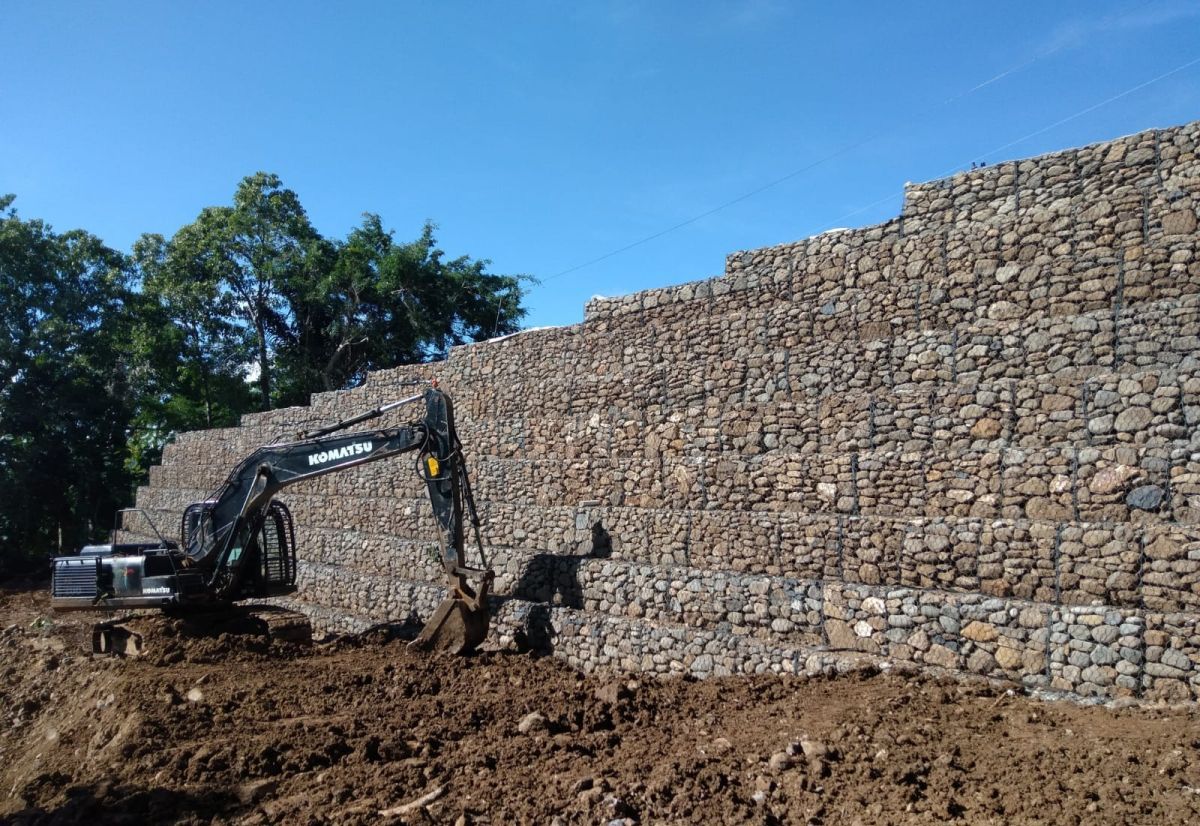

Finish Construction
Problem
The Road, which is the main access connecting Bajo and Malawater District, has a length of approximately 60 km. There was one section of the road with a length of 72m where the Landslide occurred in October 2022. Several cracks appeared on the roadside which indicate the failure zone. Thus, immediate handling shall be done, considering that the road will always be active for public mobilization and daily activities. The Retaining Wall was chosen as a solution for the case. Maccaferri Indonesia recommended the solution of a Mechanically Stabilized Earth Wall using Paramesh System.
Solution
The Retaining Wall Structure for Bajo – Malawatar Road Segment is constructed using Paramesh System with a height of 8.5m, consisting of a Terramesh System as the facing and secondary reinforcement, which is then combined with Paragrid HF 150 – geogrid with a tensile strength of 150 kN/m – with the length of 7m as the primary reinforcement of the structure. Maccaferri Indonesia proposed to use the Polimac Coated Wire for the Terramesh System as protection against corrosion, abrasion, and UV exposure. The usage of this material proved to be more effective and efficient in terms of construction time and cost. All the stability checks of the structures were performed using the internally developed software of Maccaferri (MacStars). Furthermore, Maccaferri provided the client with Product Assistant in order to ensure The Obligated Standard Procedures were followed.
