Reinforced Soil Walls and Slope Reinforcement
2022
PUERTO ESCONDIDO - OAXACA - México
SICT OAXACA
HUAROCSO SA DE CV
HUAROCSO SA DE CV
Second Stage MME at Puerto Escondido Airport

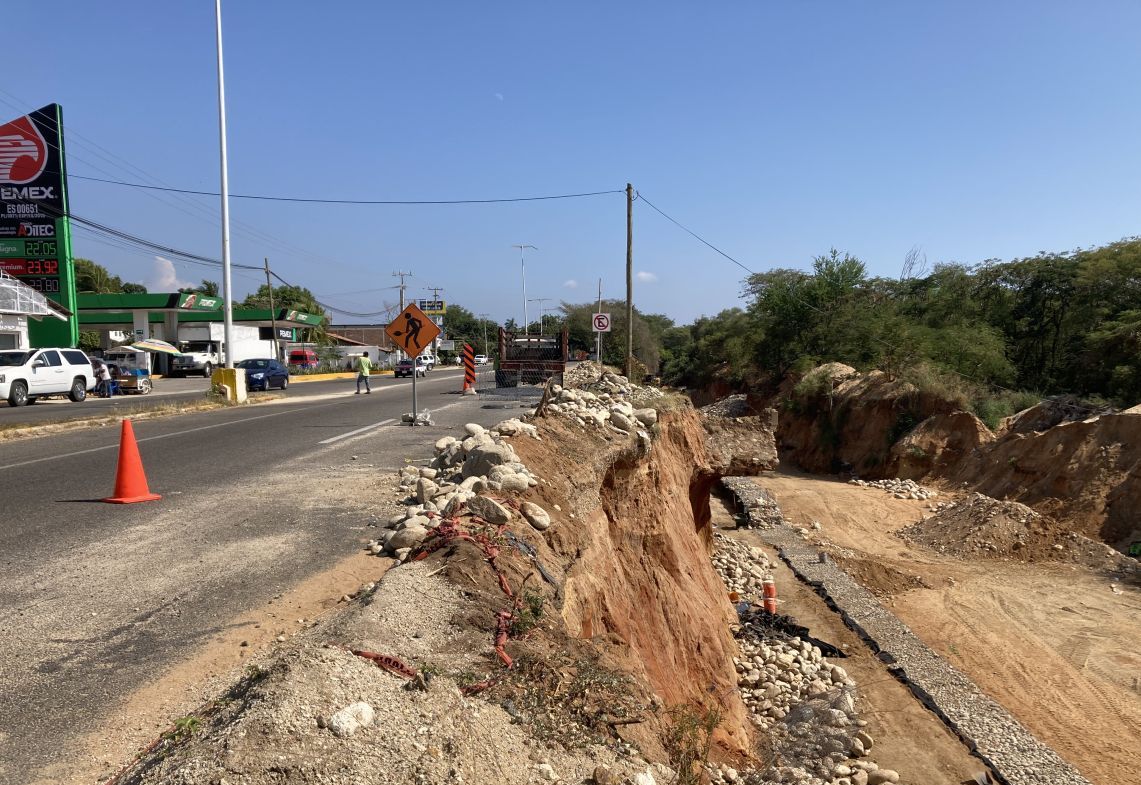

Site of the construction

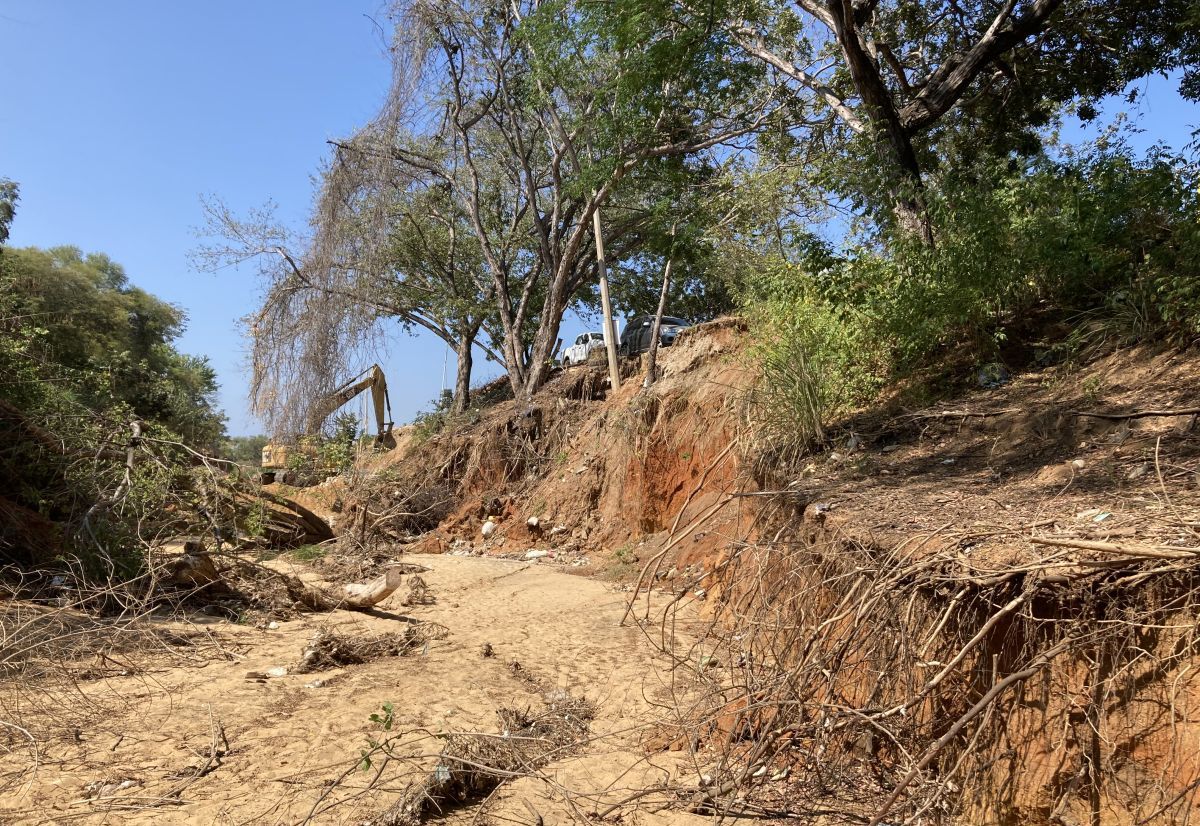

Before the construction

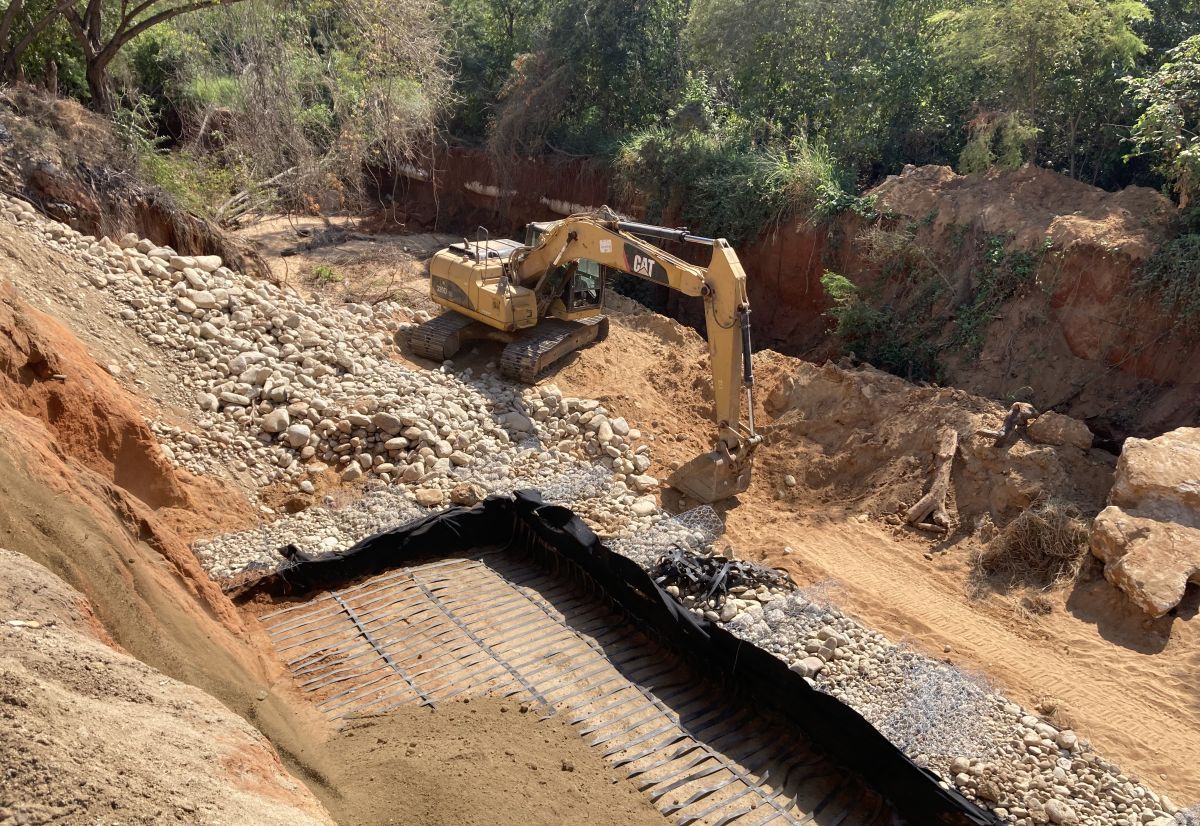

During the construction

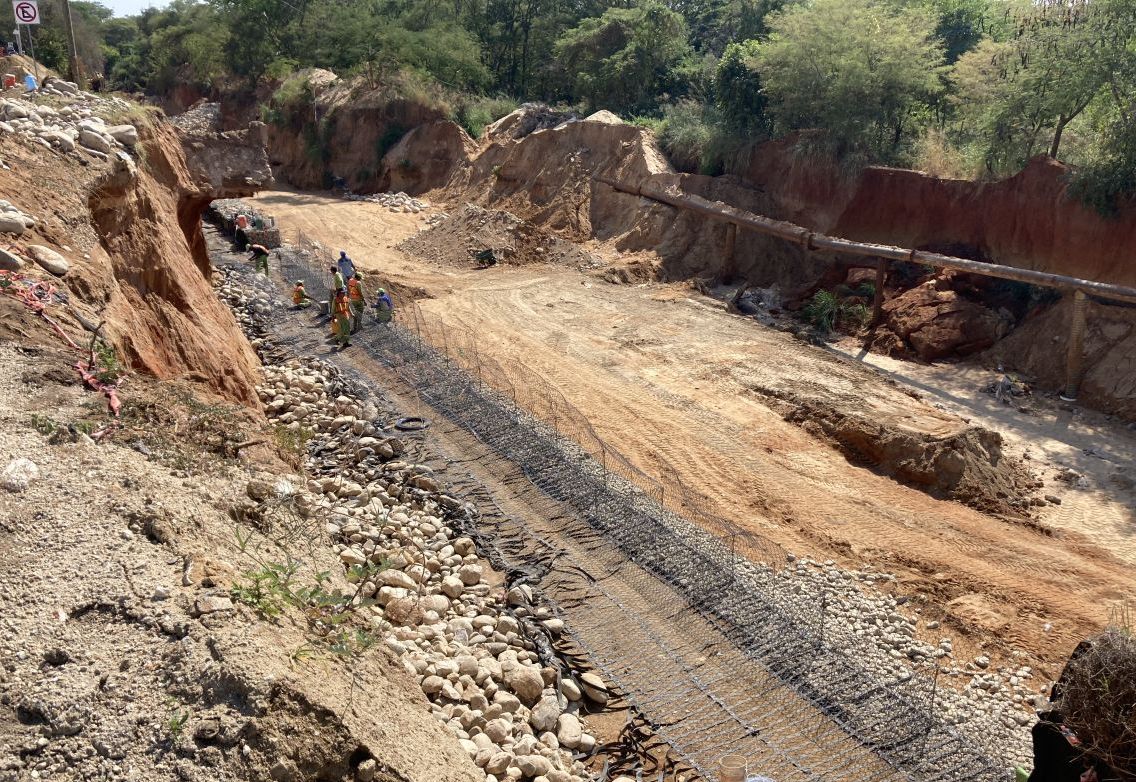

During the construction

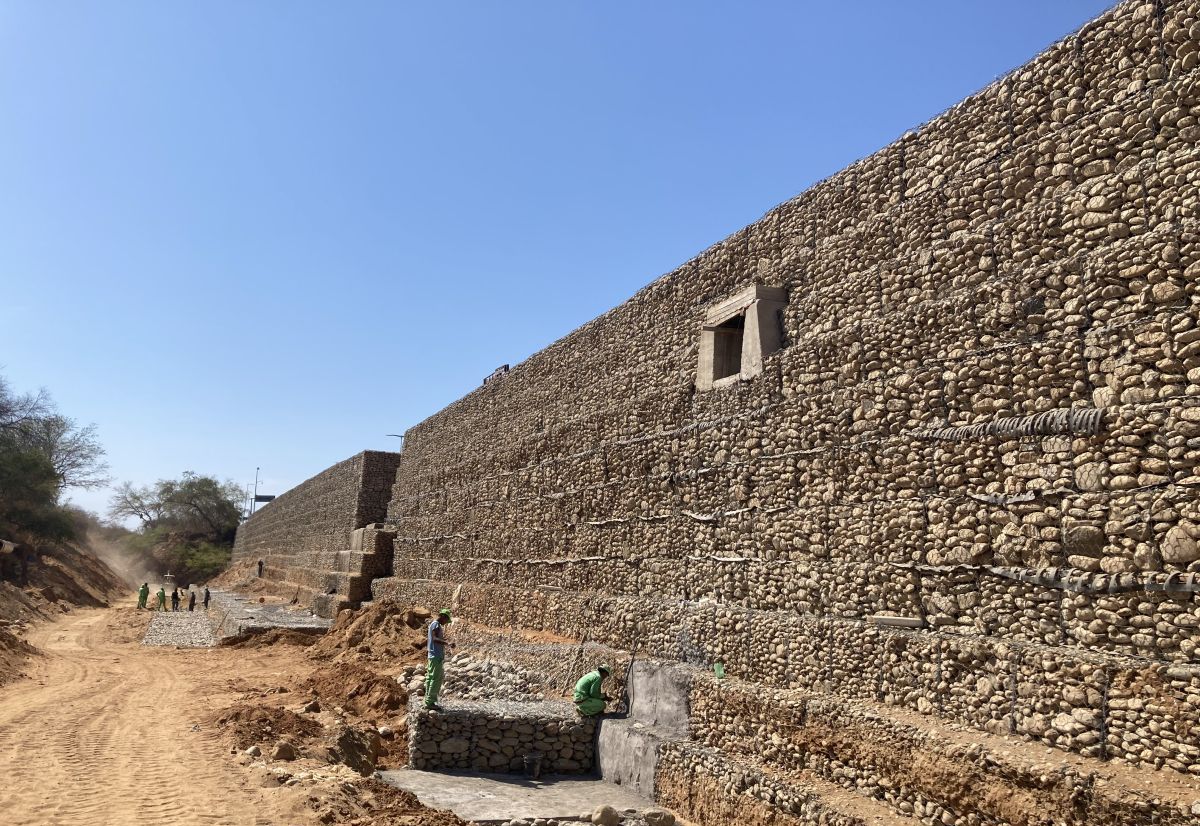

Final works

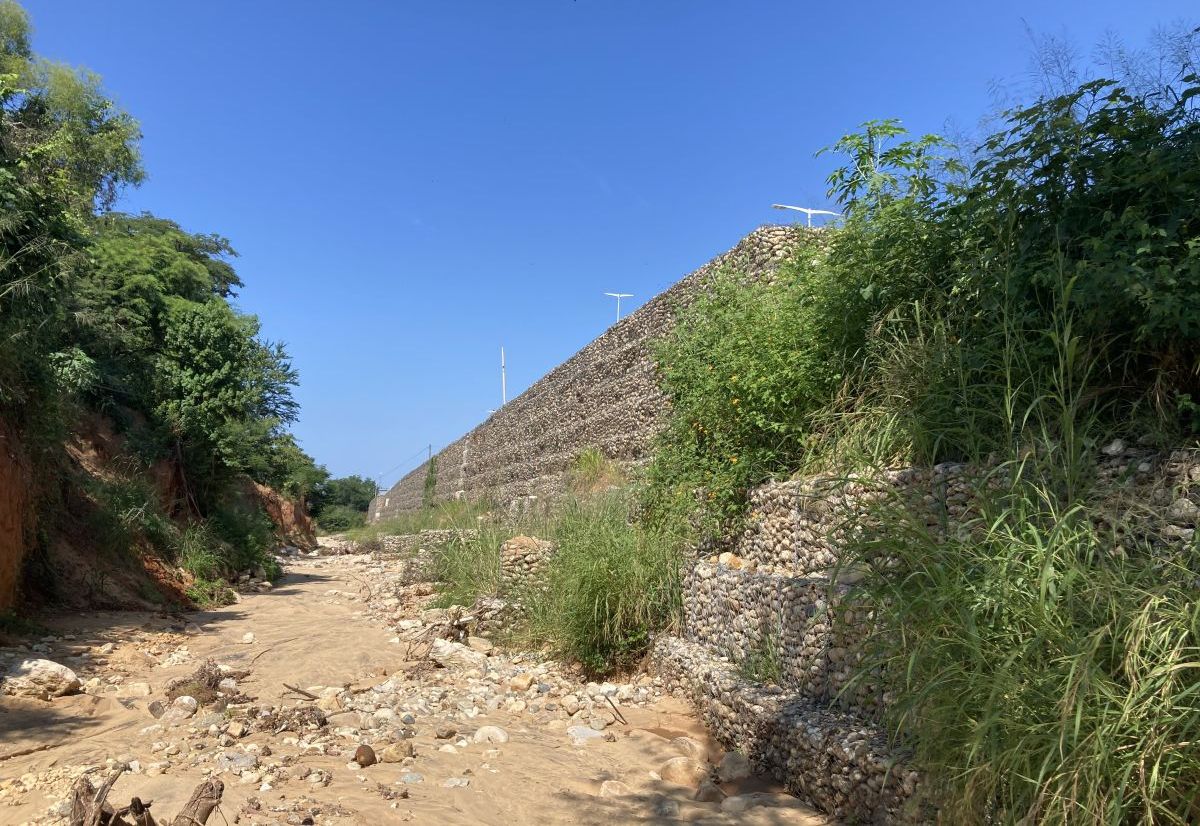

Greening of the area

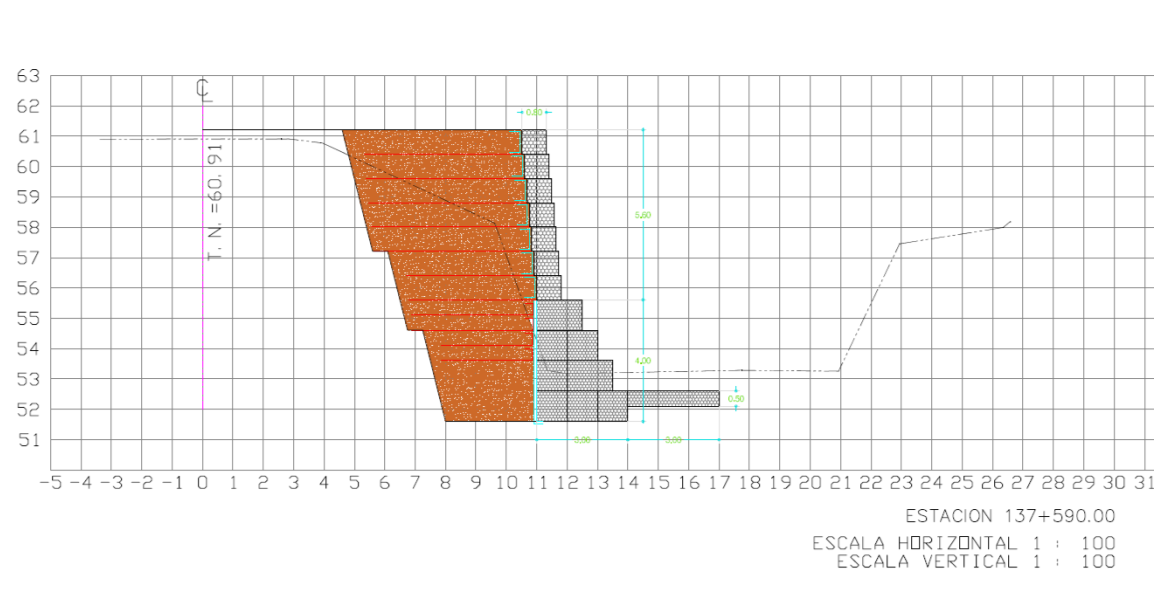

Technical Design
Problem
The erosive action of the stream flowing parallel to kilometer 137 on the federal highway Pinotepa Nacional – Salina Cruz has caused the undermining of the embankment, risking its stability. Additionally, the urban expansion brings a larger surface covered with asphalt and concrete, which have a lower infiltration coefficient, resulting in increased hydraulic expenditure, especially during hydro-meteorological events that affect this coastal city.
Solution
To strengthen the embankment, a longitudinal containment structure was designed and built, combining gabion walls and the Terramesh System along with Paragrid 200 HF geogrids. Additionally, transverse deflector-type structures and two gabion weirs were included to control the slope of the channel. Also, an increased embedment depth was implemented for this wall, located in a high seismicity zone.
