Dynamic Barriers
2022
EIDFJORD - VESTLAND - Norway
WIMO
FV 5096 SKREDSIKRING STRONGASVA, EIDFJORD
FV 5096 SKREDSIKRING STRONGASVA, EIDFJORD_0
FV 5096 SKREDSIKRING STRONGASVA, EIDFJORD_1
FV 5096 SKREDSIKRING STRONGASVA, EIDFJORD_2
Share post / intermediate anchoring
System details
Problem
The road FV 103 is an important road for Statkraft AS and tourists. It runs through a very mountainous area with very high slopes. In winter, the only access road is in danger from icefall, and in summer rockfall events are a frequent problem.
Solution

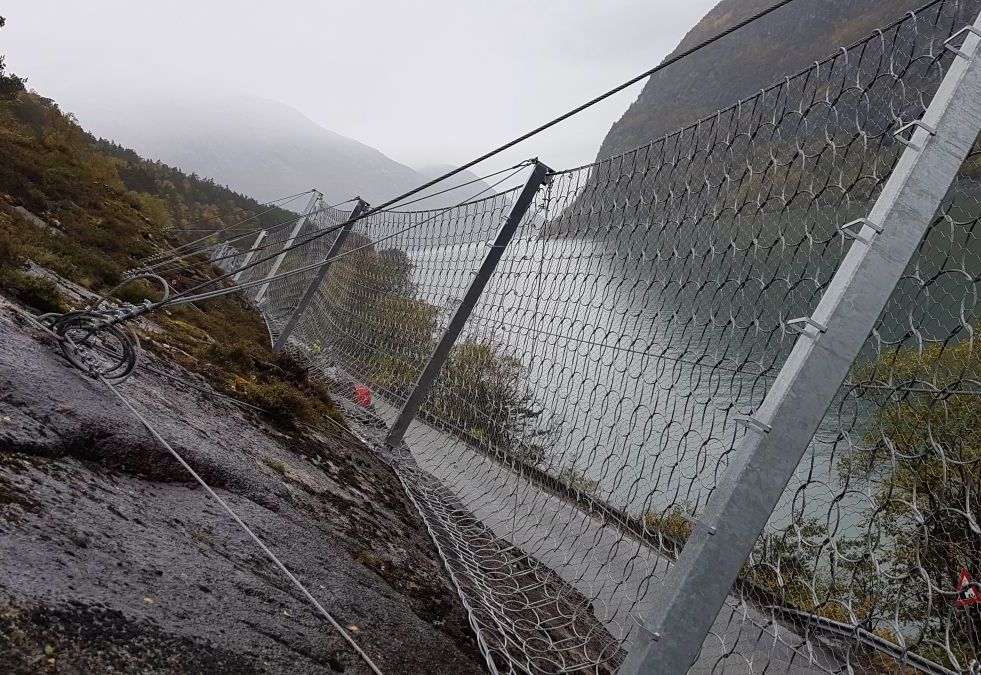

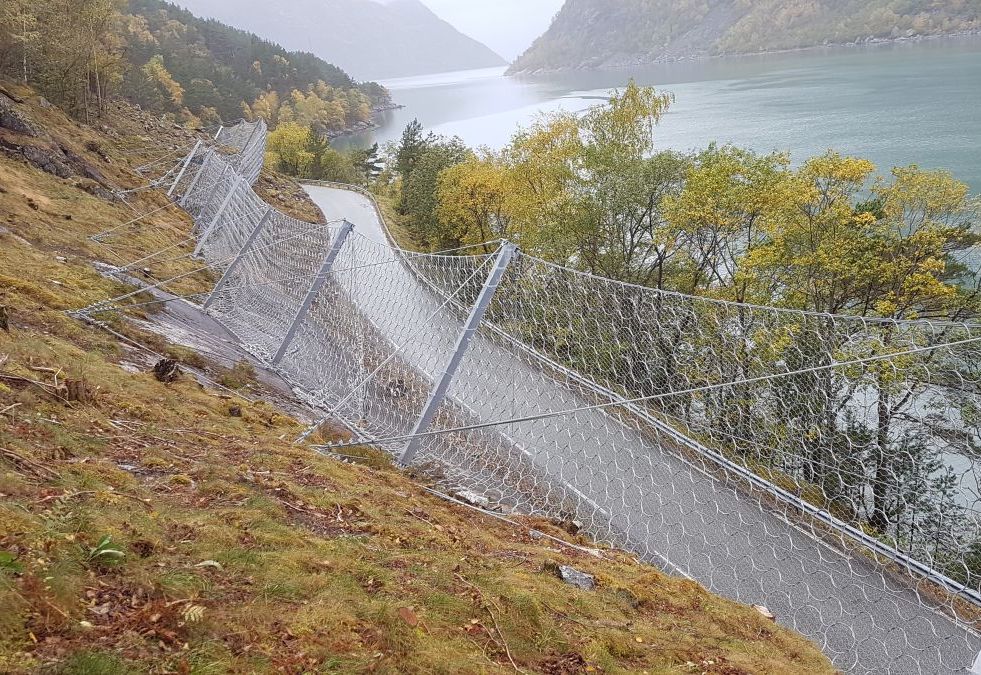

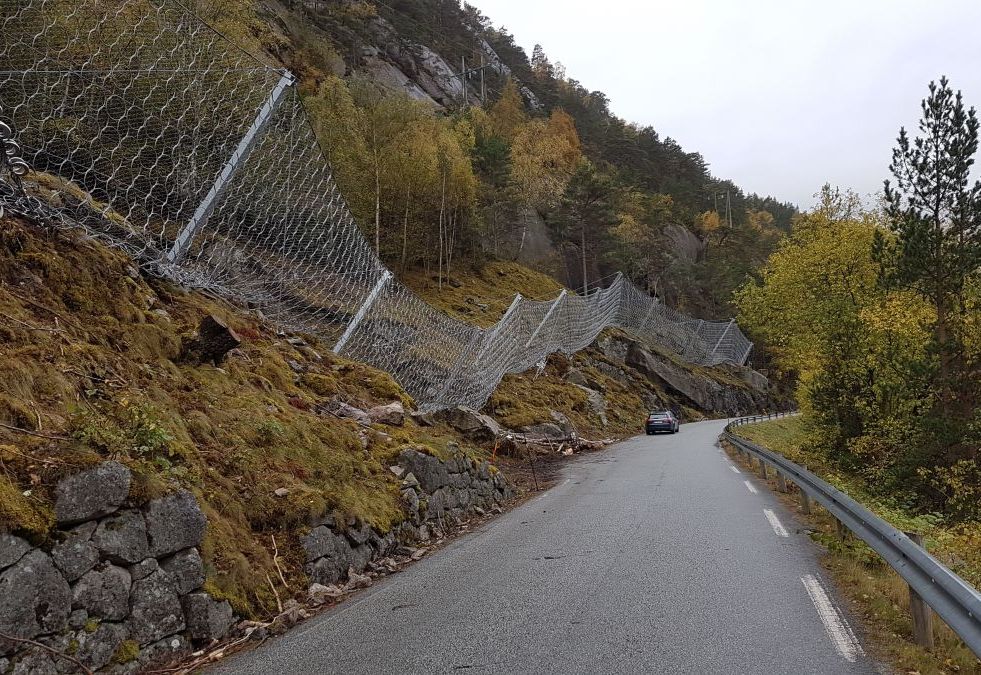

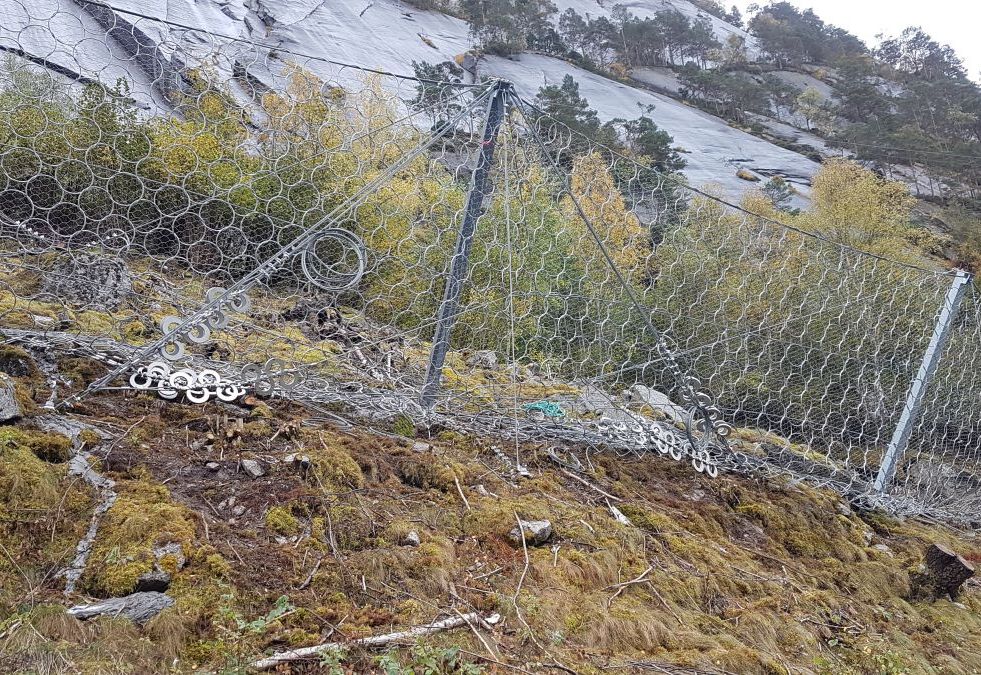

Maccaferri provided a dynamic barrier with 3000 kJ of energy absorption capacity and 5m height. The line of installation was chosen directly above the road (in order to reduce transport costs) but moved a bit uphill to guarantee a free braking distance for the deformation of the system during an impact. The installation was done in 2 lines with a total length of 420m. – NEW RB 3000 WGC – without foundations! – 5 share posts with intermediate anchoring
Used Products
