Reinforced Soil Walls and Slope Reinforcement
2018
HUARAZ - ANCASH - Perú
MISTR S.A.
MISTR S.A.
MISTR S.A.
Reinforced Soil Walls and Slope Reinforcement in HUARAZ – ANCASH – Perú

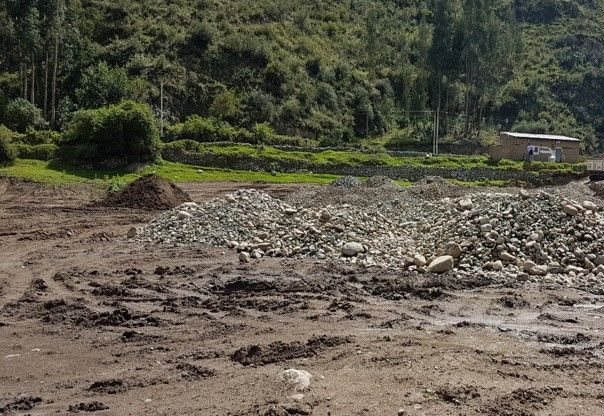

Before the project
Starting of construction

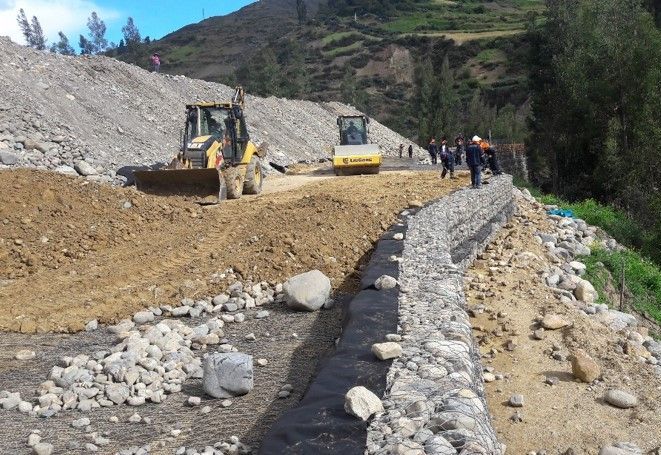

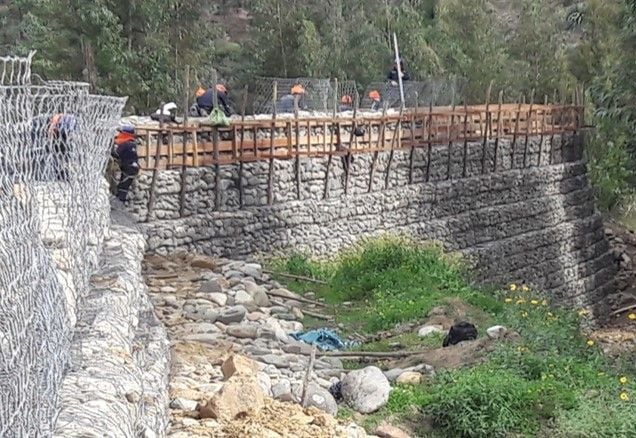

During construction

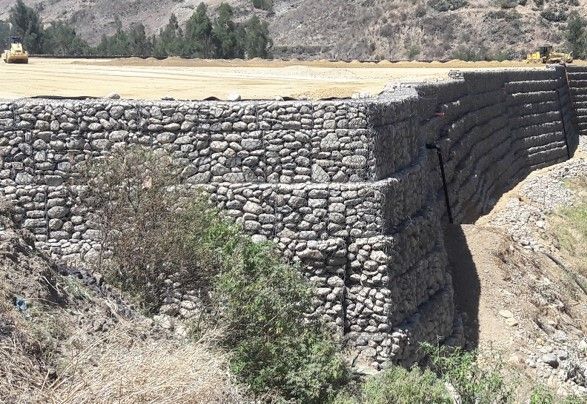

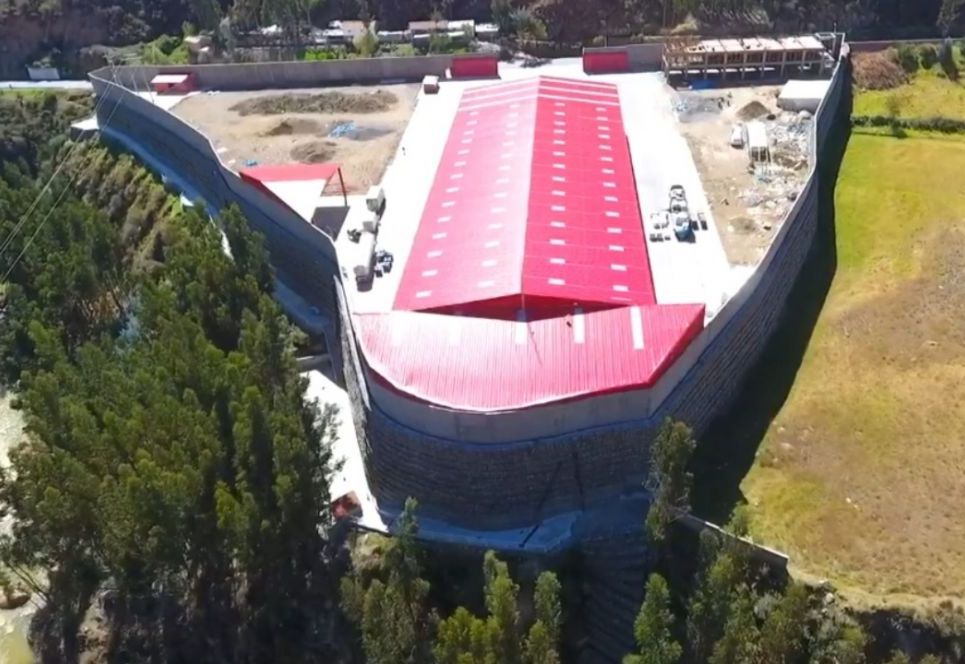

Finished project
Finished project

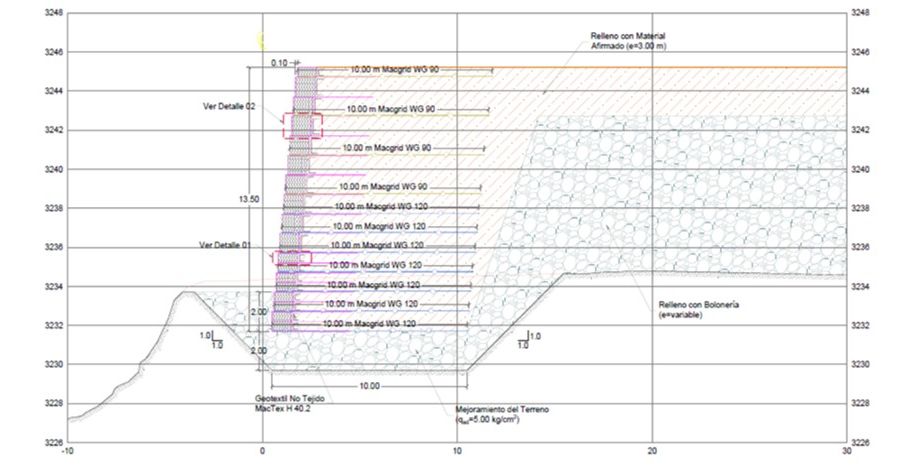

Technical design
Problem
The terrain had a steep slope towards the Santa River cliff and did not have an appropriate land surface for heavy transport accessibility for unloading products, making it unfeasible to construct the commercial warehouse on it. Therefore, the client needed to undertake a project involving a 19-meter retaining wall to have a larger construction area.
Solution
The major challenge was to propose a reinforced soil wall with a considerable height of 19 meters using the technical-economic competitiveness of the Terramesh® System as a replacement for the traditional reinforced concrete wall in constructing the warehouse platform. Several stability analyses of walls with different heights were conducted to ensure the stability of the wall under both static and pseudo-static conditions, yielding favorable safety factors.
Used Products
Terramesh®
A família Maccaferri Terramesh® inclui diferentes opções de tipos de face para a construção de muros me solos reforçados. Consiste em unidades pré-monVisão
Geogrelhas Monoaxiais
As geogrelhas são utilizadas principalmente para a função de reforço. Sua estrutura capaz de fornecer a resistência necessária para reforçar o materiaVisão
Geotêxtil Não Tecido
Os geotêxteis nãotecidos são geossintéticos planos constituídos por fibras poliméricas cortadas, agulhadas e/ou consolidados térmicamente por calandraVisão
