TerraMesh
Modular solutions for reinforced soil structures
TerraMesh™ is Maccaferri’s range of modular systems for reinforced soil walls, mechanically stabilised earth structures and slope reinforcement. Designed to respond to complex site conditions, TerraMesh™ helps overcome challenges such as weak soils, high loads, steep topography, limited space, material availability and the need for fast installation.

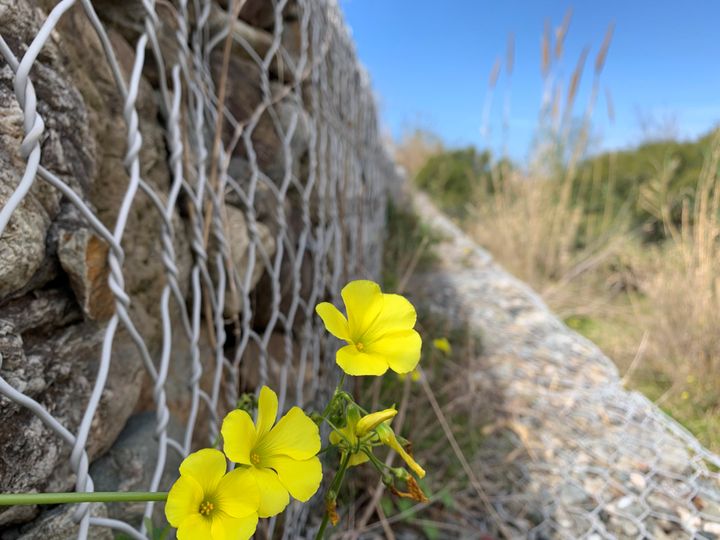

The core of TerraMesh™ is a simple but effective concept: pre-assembled units made of continuous double twisted wire mesh, where the facing, reinforcement and lid are part of one single panel. This reduces on-site operations, supports faster installation and minimises the risk of construction errors.
From small retaining structures to large infrastructure schemes, TerraMesh™ provides a durable and efficient solution for reinforced soil applications, with three different facing options: gabion, vegetated and architectural.
TerraMesh System

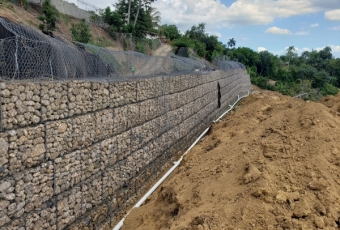

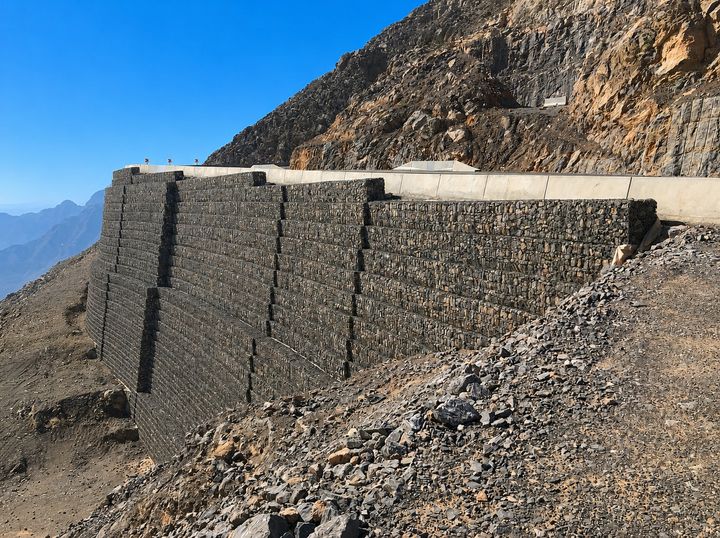

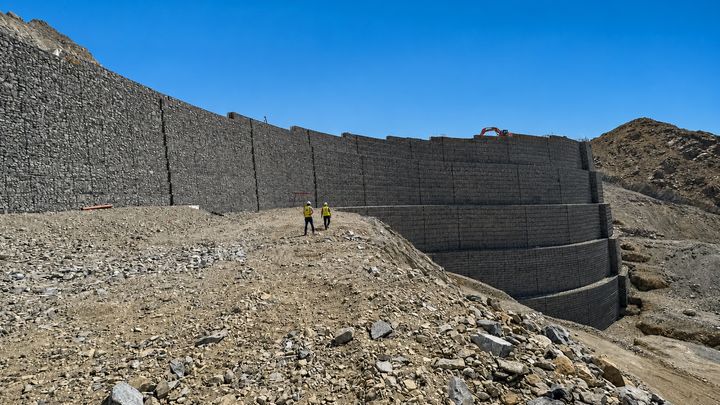

Gabion-facing solution for reinforced soil walls with a vertical rock face. Its pre-assembled units form gabion cells for stone confinement, allowing the use of locally available or on-site stones whenever suitable, helping reduce material transport. Designed for demanding applications and high-load conditions, it combines fast installation, durability and a natural rock-facing.
TerraMesh Green

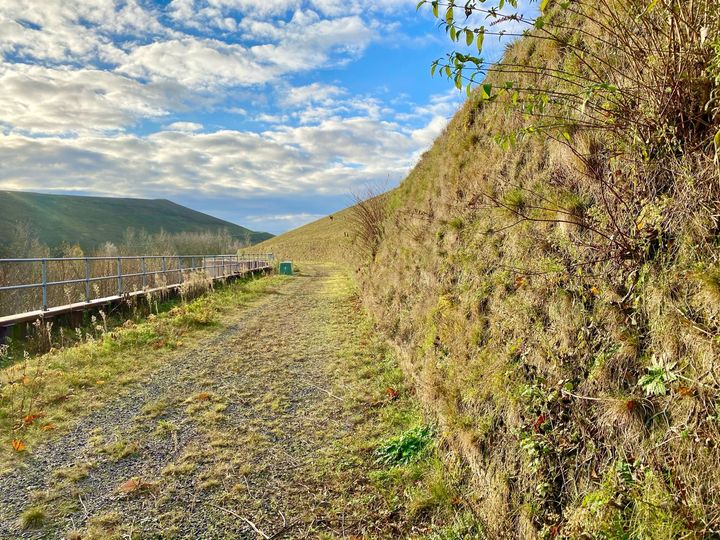

Vegetated-facing solution for reinforced soil slopes and embankments. Designed to promote rapid vegetation growth, it combines an angled front face, erosion control blanket and suitable topsoil to create a natural green finish. Ideal for projects where structural performance and environmental integration must work together.
TerraMesh Mineral

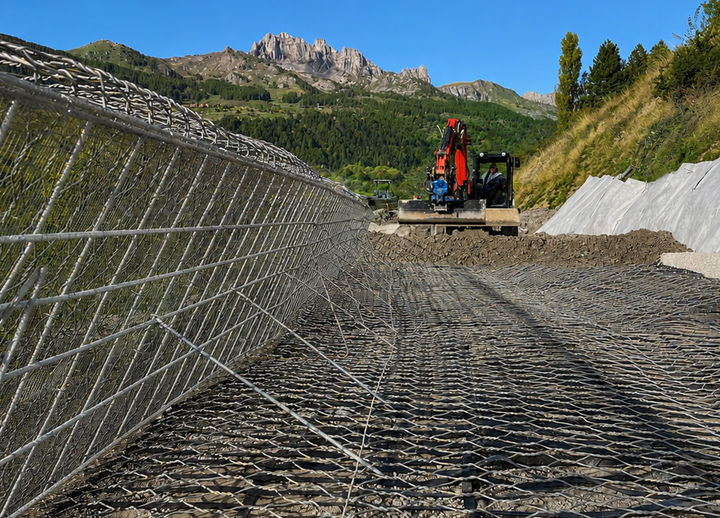

Architectural rock-facing solution for reinforced soil structures with a sloping mineral finish. Its pre-assembled units include welded mesh panels and bracing struts that hold the face at the correct angle during construction, with no need for external framework. Ideal for projects where structural performance, reduced stone consumption and a clean-faced aesthetic are required.
Paramesh Walls
An advanced configuration combining TerraMesh™ units with our monoaxial geogrids that allows reinforced soil structures to reach steeper slopes, support higher loads and reduce settlements, while optimising the use of reinforcement only where needed.
PoliMac
A tested high-performance coating designed to enhance the durability of TerraMesh™ units in the most demanding environments. Compared with PVC coating, PoliMac® delivers significantly higher performance: 10x abrasion resistance, 2x chemical resistance, 4x cold weather performance and 4x UV resistance. This protection supports a design life of up to 120 years and helps reduce long-term maintenance needs.
Design and assessment software
Maccaferri supports TerraMesh™ projects with a dedicated suite of software tools. MacSTARS W helps design reinforced soil walls and slopes, performing stability checks and supporting the optimisation of the structure. MacCycle Assessment enables comparative LCA studies, evaluating the environmental impact of reinforced soil structures.
Success Stories
Built, not just drawn
Discover more
BAY BRIDGE, CALIFORNIA, 112-FOOT-TALL VEGETATED RSS
United States
The Bay Bridge demolition and reconstruction required a reinforced soil slope in the final phases of the new bridge’s construction. A reinforced slope was urgently needed behind the U. S. Coast Guard building that sits at water level on the southeast coast of Yerba Buena Island. The embankment confinement system (ECS) facing alignment was originally proposed to follow contours. However, the proposed slope of the contours varied from left to right and top to bottom, demanding custom manufacturing and complex construction.
Discover more
BE-ANTWERP MALINAS
The access road of a new retail center has been planned in Mechelen, Belgium, to let customers easily drive to the new shopping mall. Initially, the retaining wall for the ramp leading to the bridge abutment had been planned as a concrete L-retaining wall, but, thanks to the technical support of Maccaferri, the design has been changed in favour of 530 sqm MacRes System with 12. 000 lm of ParaWeb reinforcement. Due to the bad foundation soil characteristics, the contractor asked Maccaferri´s support also for the calculation and delivery of 1. 100 sqm of ParaLink 950 as basal reinforcement over piles. Smooth standard panels have been chosen.
Discover more
BE-MECHELEN R6

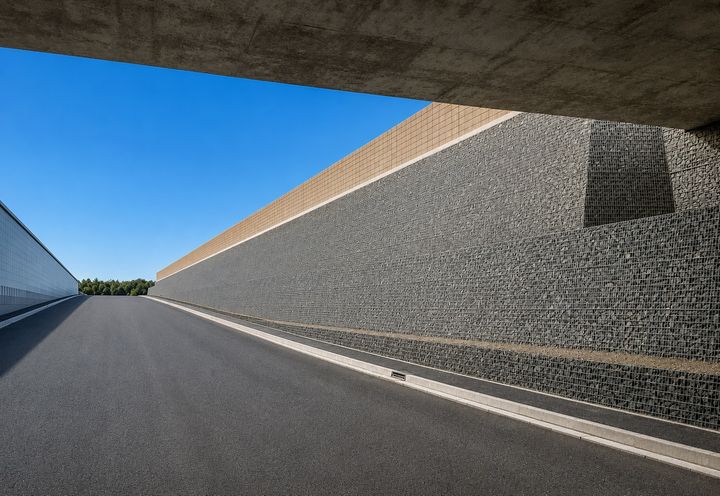

The construction of part of the new ring-road R6 in the municipality of Mechelen, Belgium, required the construction of 2 new road bridges. The designer adopted a very particular shape of the bridge abutment, where the two access ramps had to be built using a reinforced soil structure. The choice of Mineral Terramesh was very well appreciated because of the ease of construction and because of the nice external finishing. Moreover, the Municipality did not want to carry any maintenance of green facings, therefore the stone facing has been very well appreciated by the public authority.
Discover more
