SYCAMORE HEIGHTS

Home > Success stories > SYCAMORE HEIGHTS

Reinforced Soil Walls and Slope Reinforcement

2020

TAGAYTAY MIDLANDS, TALISAY, BATANGAS - REGION IV-A - Philippines

Belle Corporation

SYCAMORE HEIGHTS

Problem

One of the recent developments in Tagaytay Midlands, Talisay, Batangas involved construction of the Sycamore Heights, an Asian contemporary-themed community fronting the famous Taal Lake. The project was divided in several phases. The first phase of the development required a 420 meter-long earth retaining structure along the community’s boundary line that is directly adjacent to an existing creek. The needed retaining wall has varying heights from five meters to about 20 meters. A standard road was designed to be immediately above the wall.

Solution

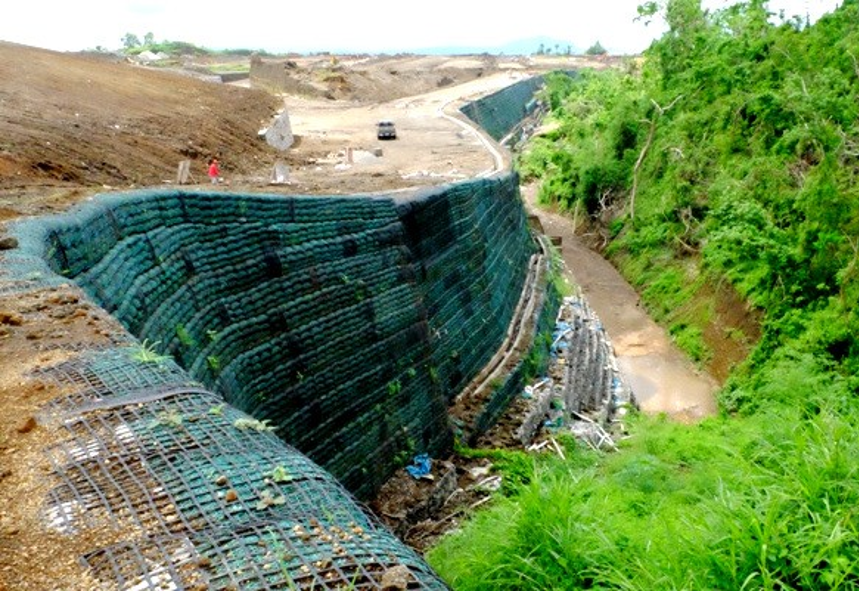

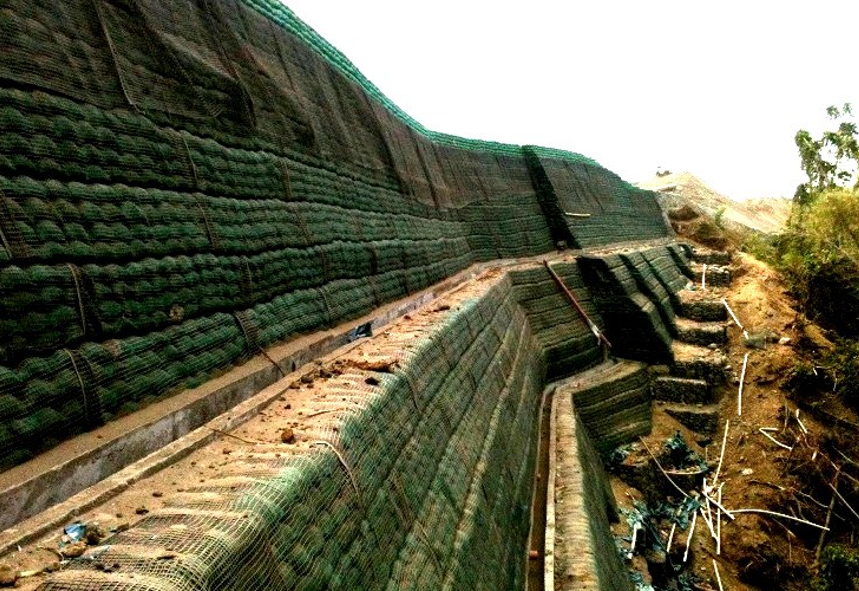

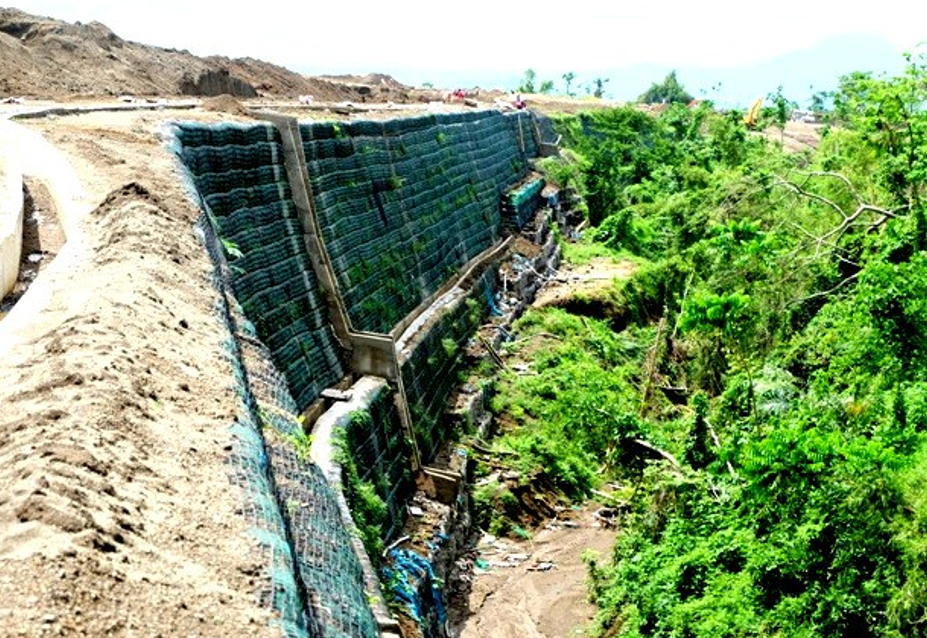

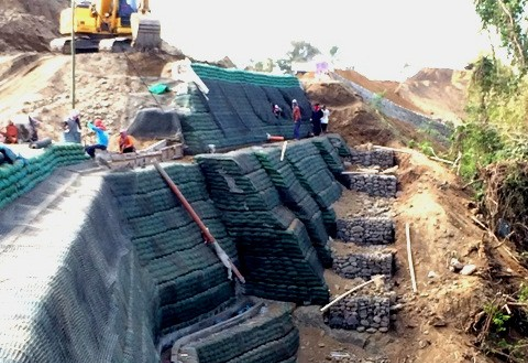

In close coordination with the Project’s Consultant (TCGI Engineers), Maccaferri engineers assisted in the design of the most economical earth retaining structure possible. Using Maccaferri’s MacGrid high tenacity woven polyester geogrids for soil reinforcements, various sections of a wrap-around geogrid reinforced soil wall system have been recommended. Maccaferri gabions and Reno mattresses were also incorporated as primary protection at the toe of the reinforced soil wall. Besides the MacGrid wrap-around geogrid system’s constructability and being a cheap alternative to other earth retaining systems, another distinct advantages of the system are the ability to be fitted to non-conventional slope geometry requirements and the achievement of green facing on the facing that camouflages well with the lush landscapes.
