Ground Improvement
2023
NUEVA ECIJA - REGION III - Philippines
FMJR Oliver Grains Corporation

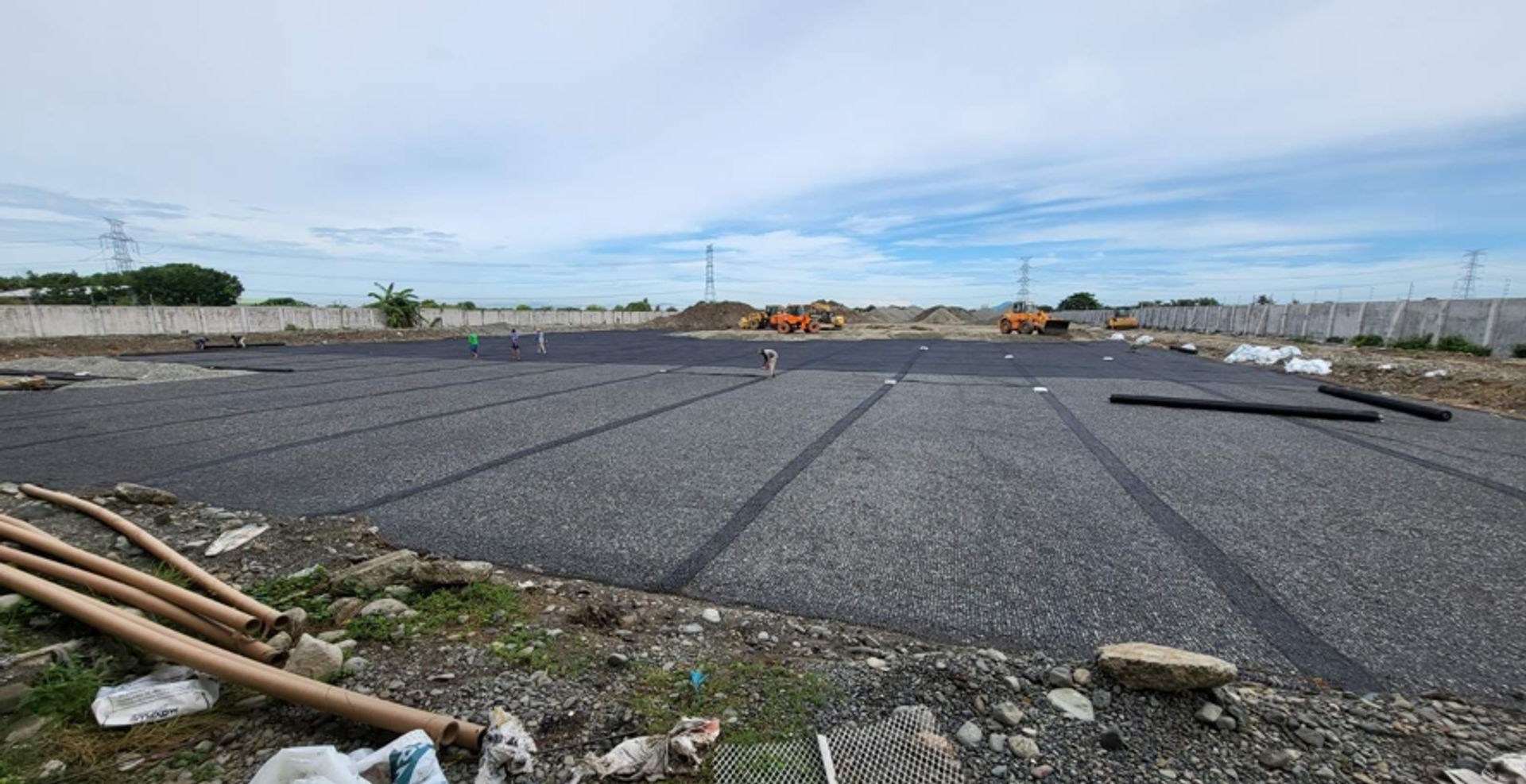

12 UNITS GRAIN SILOS IN TALAVERA, NUEVA ECIJA
Problem
HG Silos will be constructing 12 units of 1500 metric tons of grain silos in Talavera, Nueva Ecija. Based on the soil investigation report, the soil is underlain by five to six meters of silty sand having a standard penetration test (SPT) – N value range…
Solution

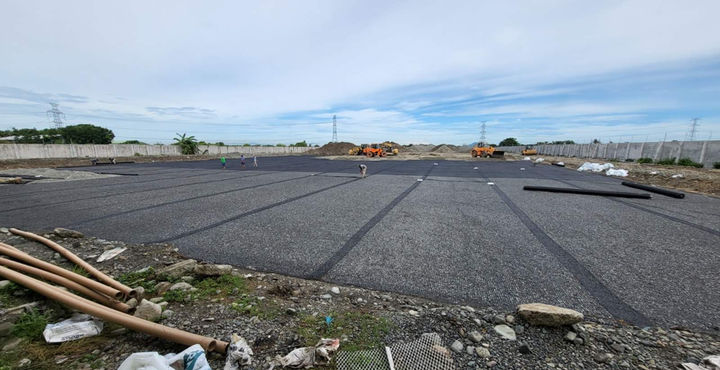

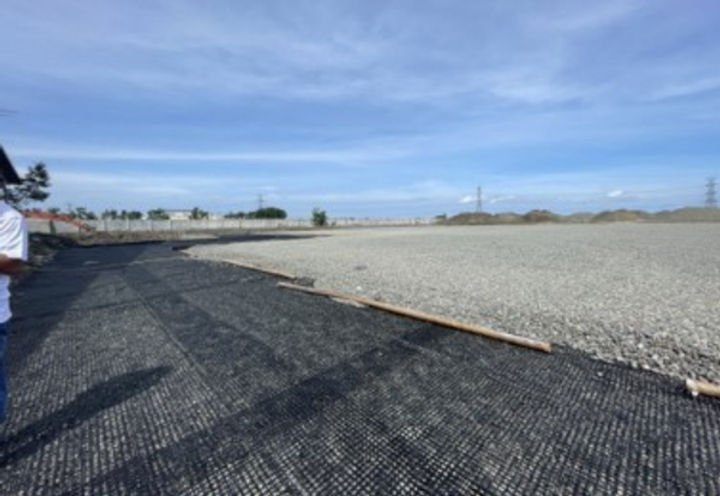

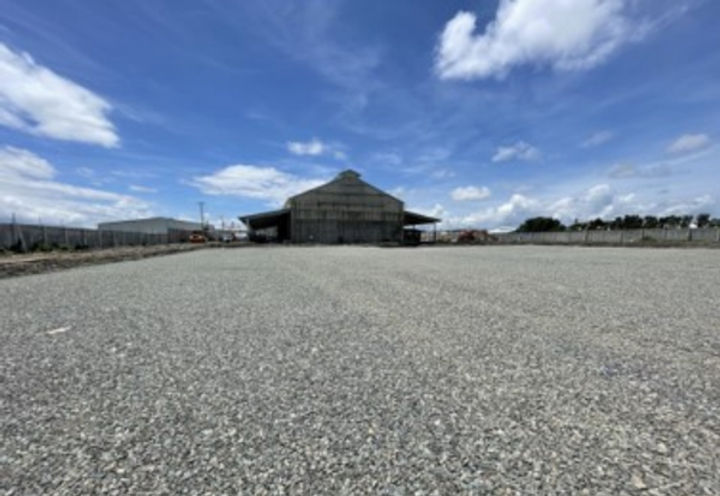

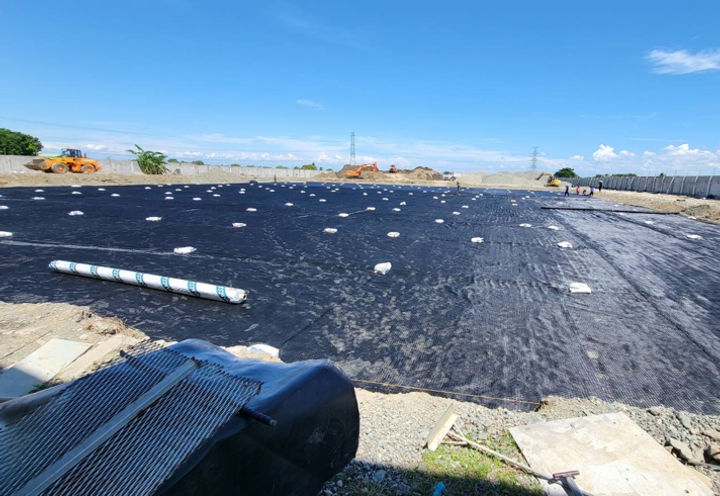

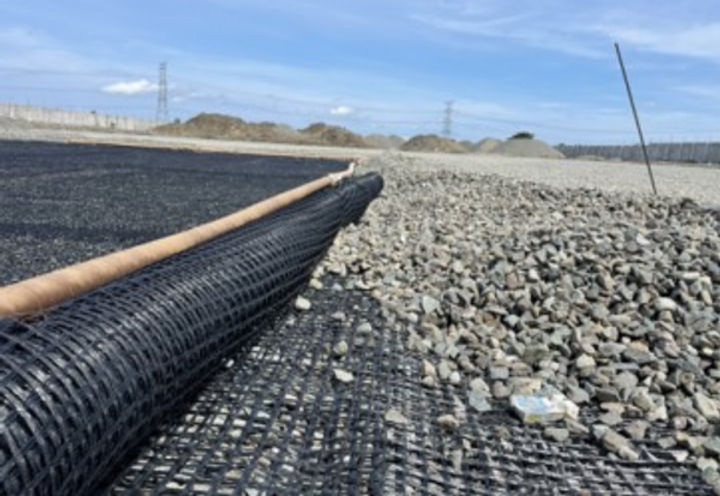

Maccaferri recommended installing two layers of cross-laid 80 kN/m geogrids 0.25 m below the base of the footing having a spacing of 0.25 m as well. The footing of the tank farm will be installed at 0.5 m below the ground with good backfill material. The…
Used Products
Nonwoven Geotextiles
Nonwoven geotextiles are flat textile structures consisting of synthetic fibres casually assembled by needle punching and/or thermal processes; theViewstar
MonoAxial GeoGrids
Geogrids are used mostly for reinforcement purposes considering their peculiar structure is able to provide the necessary strength to reinforce theViewstar
