ESTRADA DE ACCESO SANTUARIO SERRA DA PIEDADE

Type of project
Solo Grampeado
Year
2023
Location
CAETE - MINAS GERAIS - Brasil
Client
MITRA ARQUIDIOCESANA DE BELO HORIZONTE
Designer
Thiago Bretas

Challenge

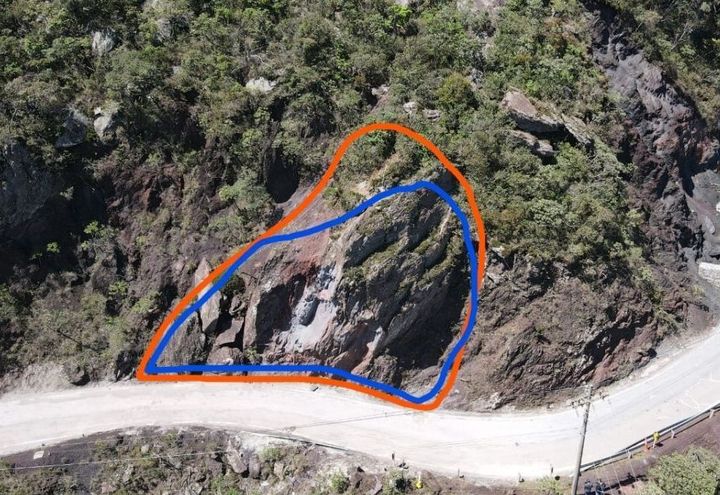

O Santuário da Serra da Piedade é marcada pela exposição de matacões de itabirito de diferentes graus de intemperismo, via de regra dobrados em padrões

de interferência cujas amplitudes oscilam de milimétrica a métrica em escala de afloramento. Trata-se de material também intensamente fraturado segundo várias direções, o que ajuda a individualização de blocos de diversas dimensões. O deslocamento natural de blocos é facilitado pela conjugação desses fatores estruturais com as elevadas declividades que caracterizam grande área das Serra.

Solution

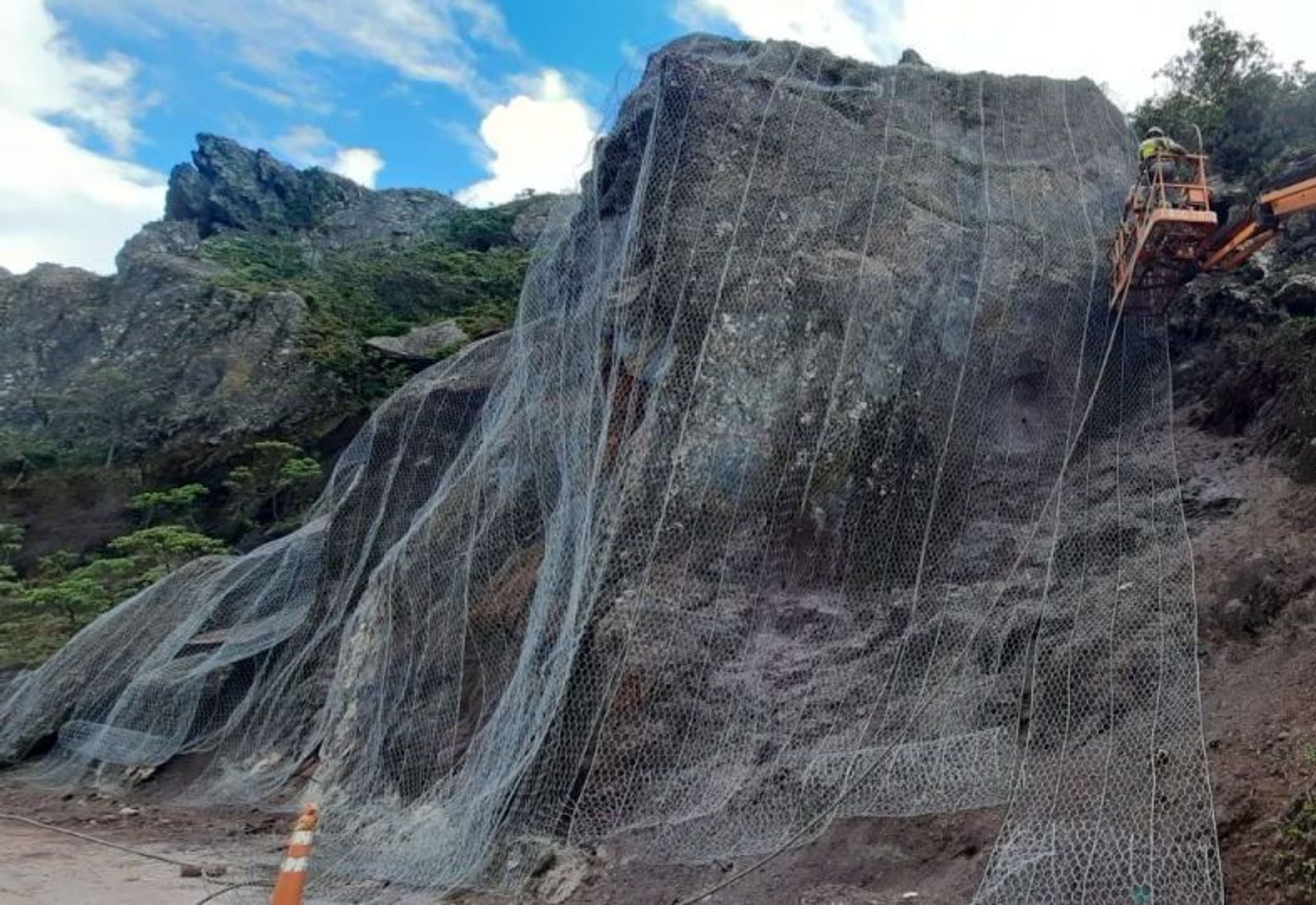

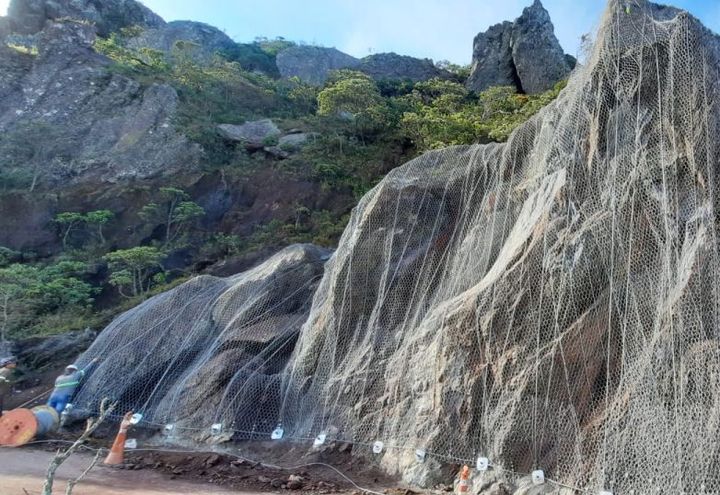

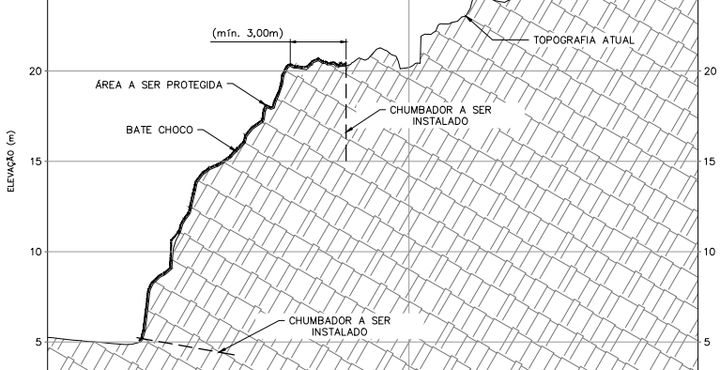

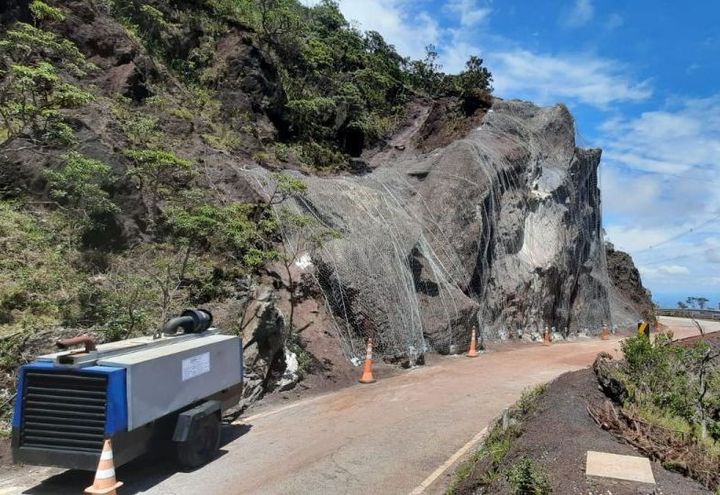

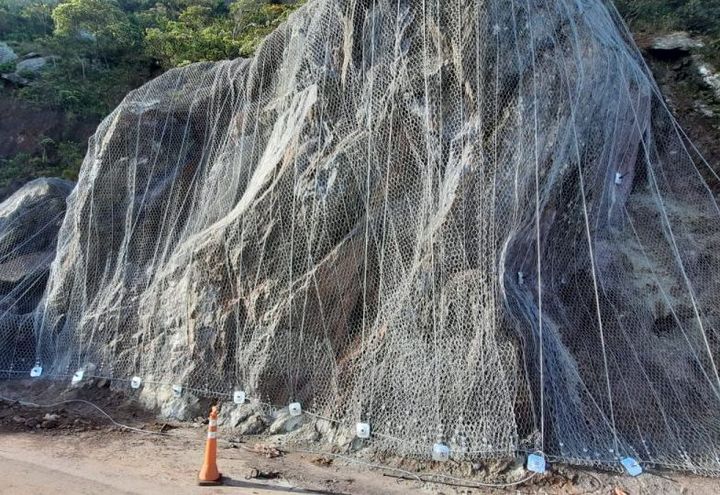

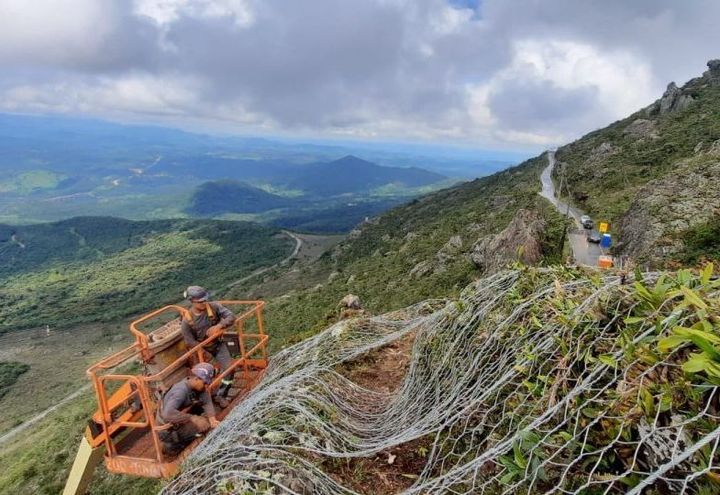

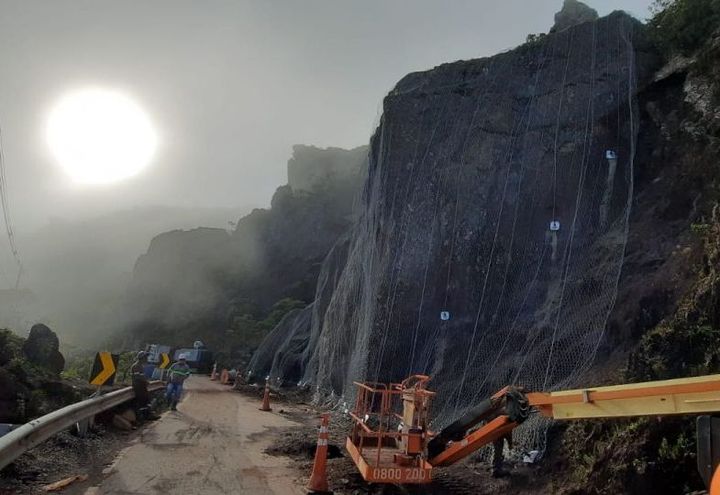

Com o objetivo de evitar o deslocamentos dos blocos foi adotada a solução em STEELGRID HR50 , chumbadores em barra de aço tratada com o diâmetro 25 mm e calda de concreto com resistencia de fck 25 MPa.
