Reinforced Soil Retaining Structure and Slope Reinforcement
2021
ESCADA - PERNAMBUCO - Brasil
Plínio Cavalcanti & Cia Ltda
Plínio Cavalcanti & Cia Ltda
PASSAGEM INFERIOR DA RODOVIA BR-101 EM ESCADA
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Challenge
A viaduct project was carried out on BR-101, in the municipality of Escada-PE, in the direction from Recife to Maceió, to create a turnaround point. During the construction of the project, the road’s profile needed to be changed, raising its levels through the construction of embankments. However, the lateral projection of the embankment would intersect with the turnaround road if the slope was not made vertical with an appropriate retaining structure.
Solution

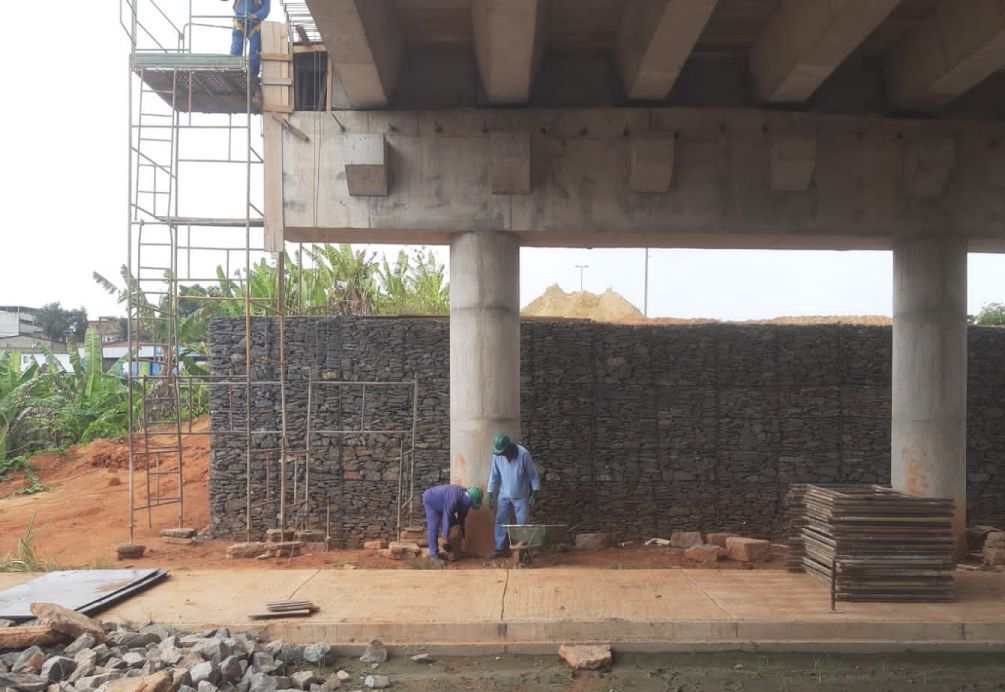

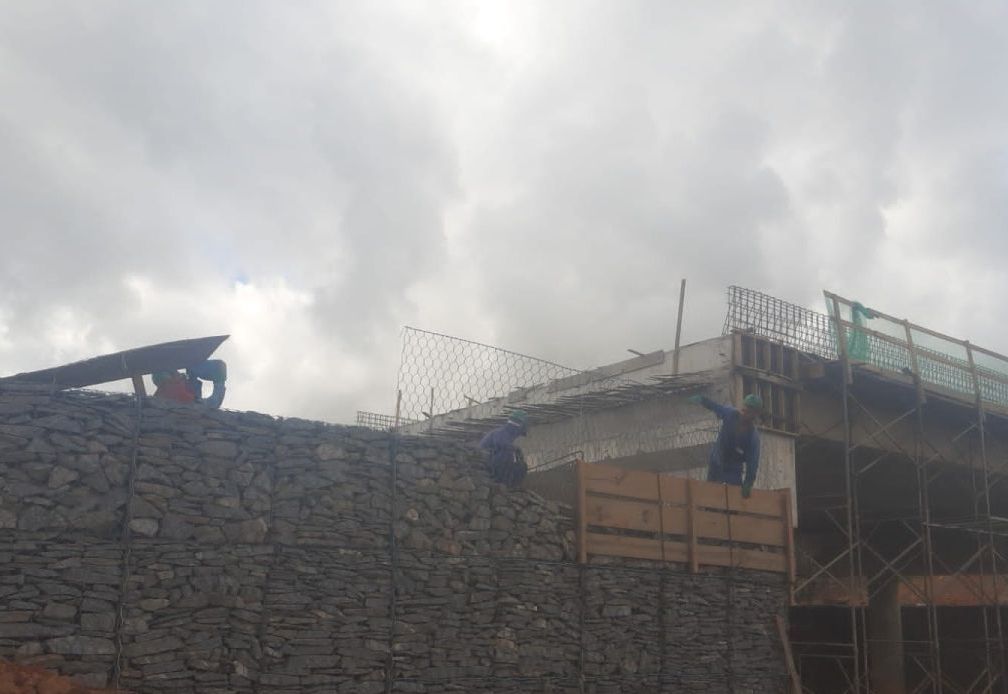

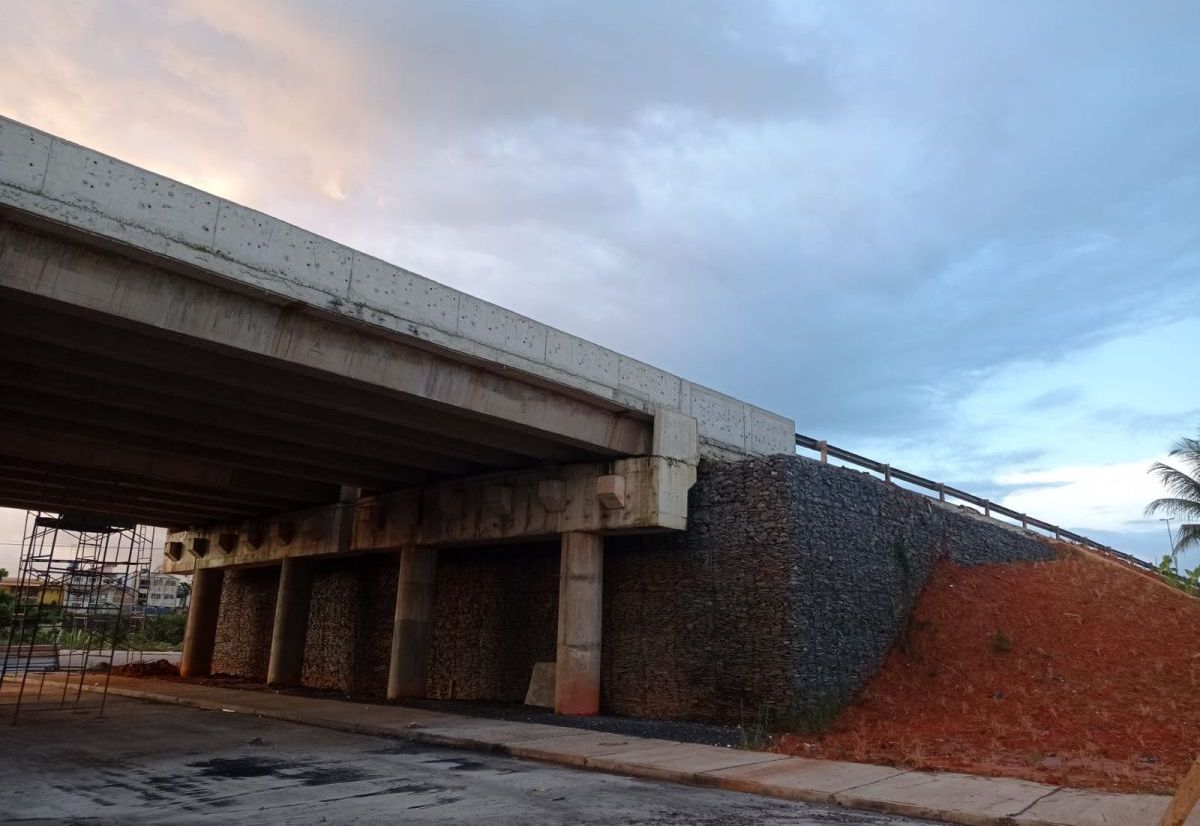

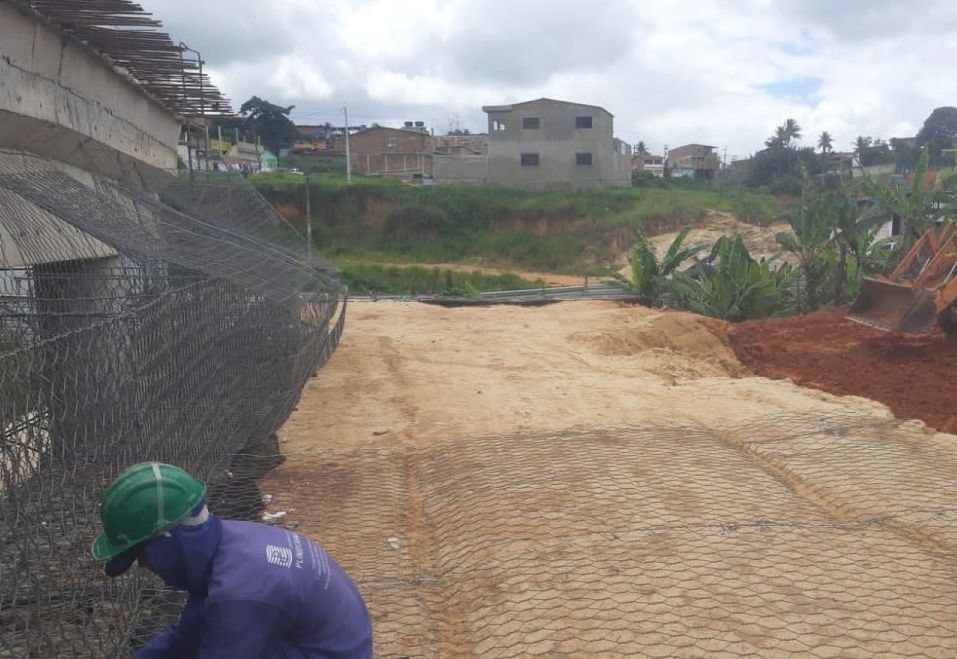

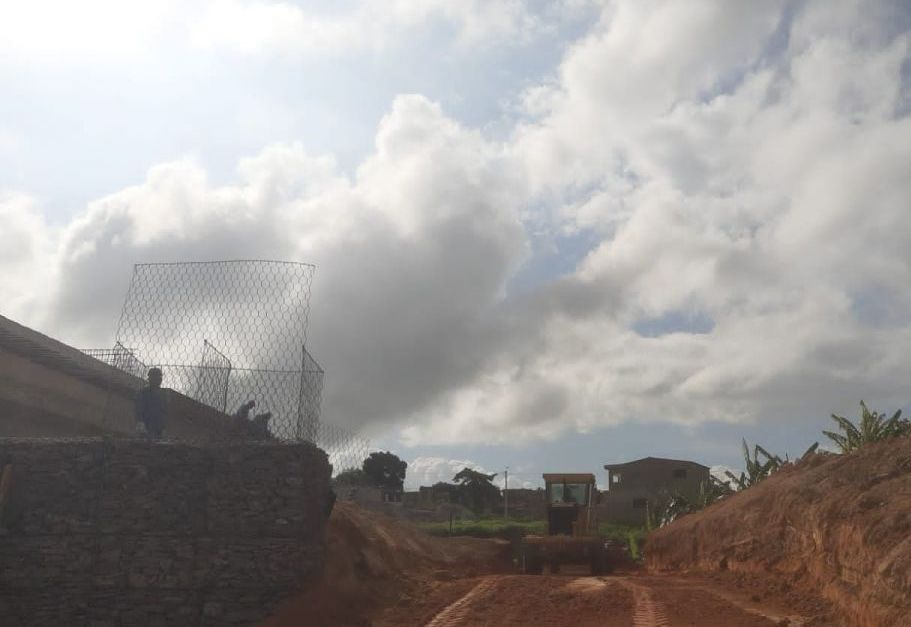

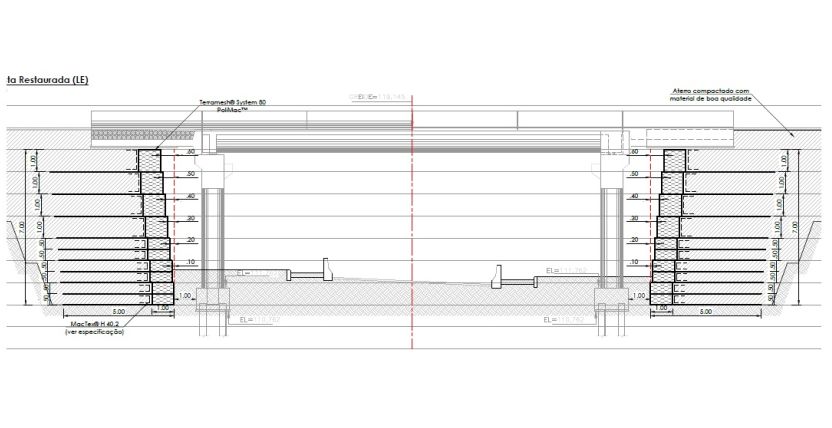

A containment and verticalization project for the meeting embankment was implemented using the reinforced soil system with the Terramesh System wall. The solution met the recommended technical and economic criteria, with some of its key advantages being a draining face, ease of construction, and long-term performance.
Used Products
Bronjong
Bronjong Maccaferri adalah wadah wire mesh Double-Twisted “DT” dengan ukuran variabel yang dipartisi secara seragam menjadi sel-sel internal, salingLihat
Geotekstil Nonwoven
Geotekstil nonwoven adalah struktur tekstil datar yang terdiri dari serat sintetis yang dirakit secara acak dengan meninju jarum dan/atau proses termaLihat
HEA Panel
Panel HEA Maccaferri (High Energy Absorption – Penyerapan Energi Tinggi) adalah produk paling kaku dalam rangkaian mesh Sistem Mac.RO(TM), menawarkan Lihat
