CRUSHER WALL AT INDOCEMENT FACTORY

Home > Success stories > CRUSHER WALL AT INDOCEMENT FACTORY

Reinforced Soil Walls and Slope Reinforcement

2020

JAKARTA - JAKARTA - Indonesia

PT INDOCEMENT

CRUSHER WALL AT INDOCEMENT FACTORY

Problem

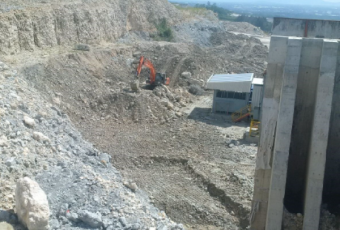

Indocement factory is located in the South of Jakarta and it is the second largest cement producers in Indonesia. The Client needed a flexible retaining structure to be connected with the existing concrete vertical wall used as crusher wall. The total soil height to be retained was approximately 14m. The area is characterized by a high seismic level and an horizontal seismic acceleration equal to 0.23g had to be considered in the design process. Another constraint of the project was the maximum available space behind the new retaining structure which was equal to 13m. The client took into consideration in the first place a mass gravity retaining wall made with gabions.

Solution

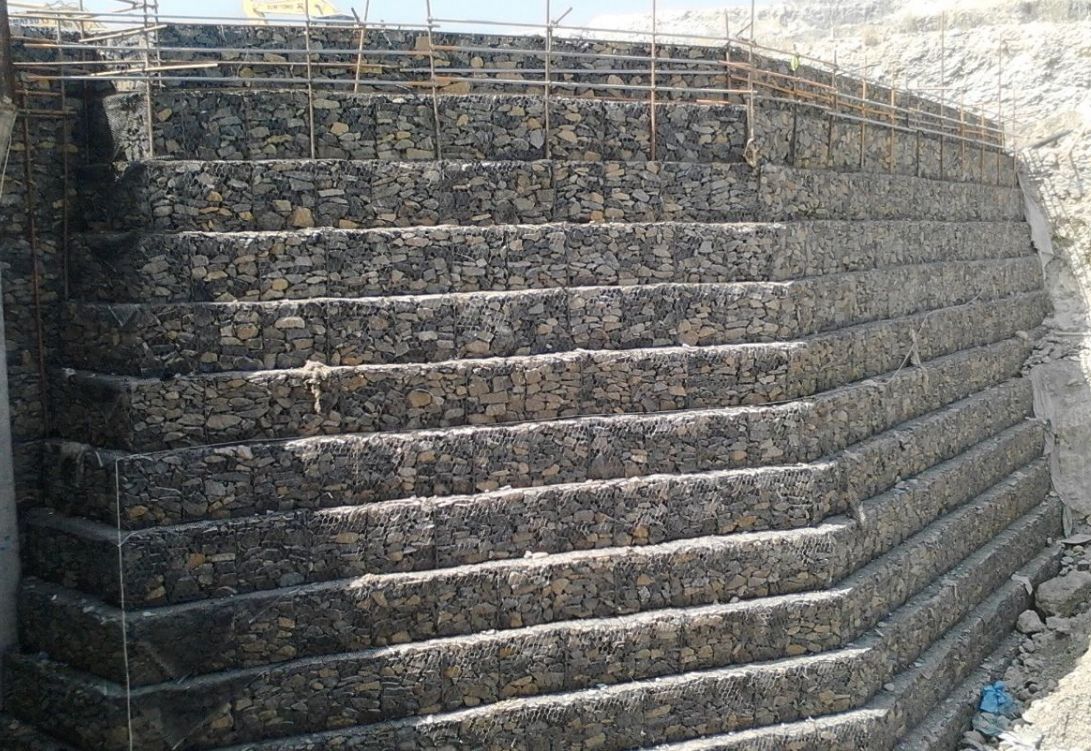

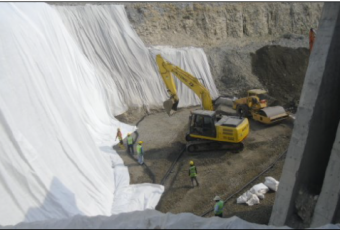

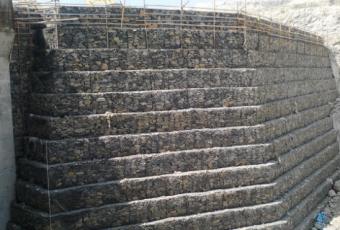

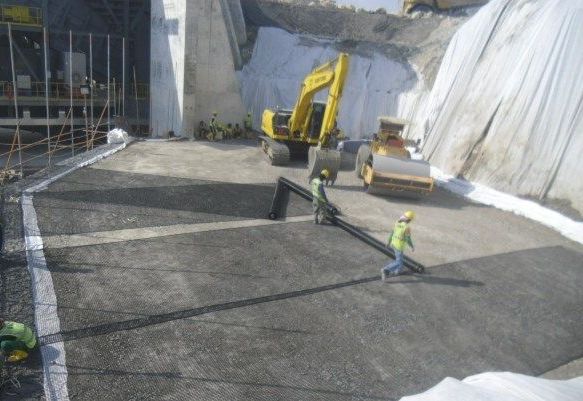

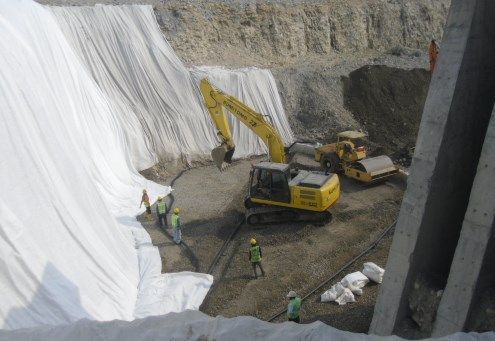

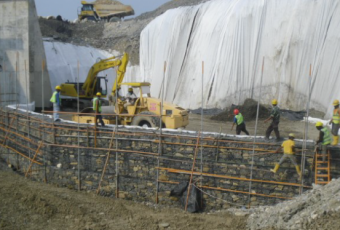

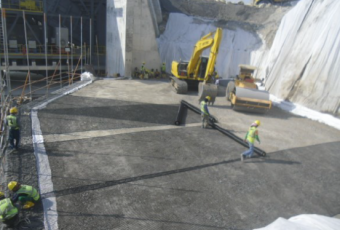

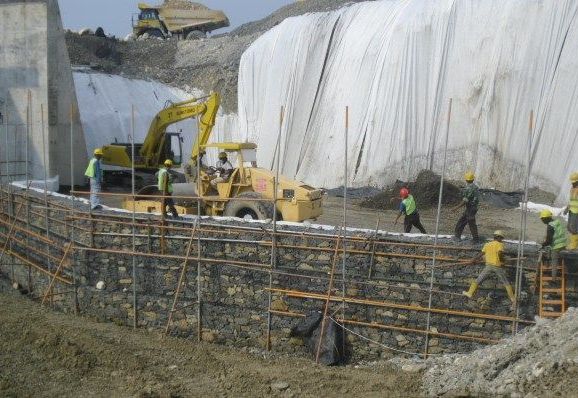

After a comparison in terms of cost and construction timing, the Client opted for the construction of an Hybrid Reinforced Soil Wall combining metal reinforcements to ensure the facing stability (Terramesh System) and polymeric grids as primary reinforcing elements to ensure the global and the internal stability of the wall (MacGrid WG). Terramesh System is a modular system used for soil reinforcement made of pre-assembled units fabricated with double twisted wire mesh 8×10 made of Galfan (Zn-Al5% alloy) and PVC coated steel wire. The units are provided during the manufacturing process with a double twisted metallic tail (secondary reinforcement). MacGrid WG is a Woven planar geogrid manufactured from high tenacity PET yarns coated with PVC in order to maximize its durability. The geogrid used was equal to 150kN/m. The vertical spacing of the geogrids as well as their length have been calculated using the Maccaferri Limit Equilibrium Method in-house software (MacStars W 4.0). Both static and seismic analysis have been performed, checking global stability.

Used Products

TerraMesh
TerraMesh
Maccaferri Terramesh® Family includes different facing options to build a Mechanically Stabilized Earth (MSE) structures and Reinforced Soil SlopesView
star

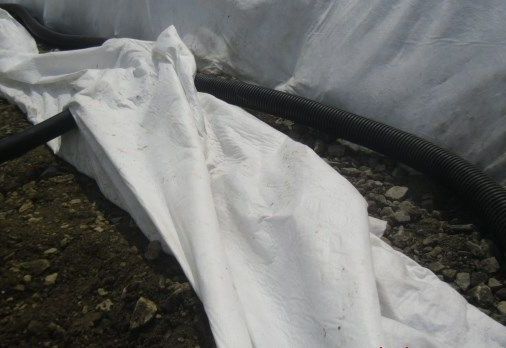

Nonwoven Geotextiles
